Precision Metal Orifices - Press-Fit Inserts, 0.380" OD
Precision Metal Orifices - Press-Fit Inserts, 0.380" OD
SKU:PRE-23ed5f
High-precision Press-Fit Metal Orifices for accurate flow control in fluid systems.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Precision Metal Orifices - Press-Fit Inserts, 0.380" OD
$39.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - Press-Fit Inserts, 0.380" OD
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

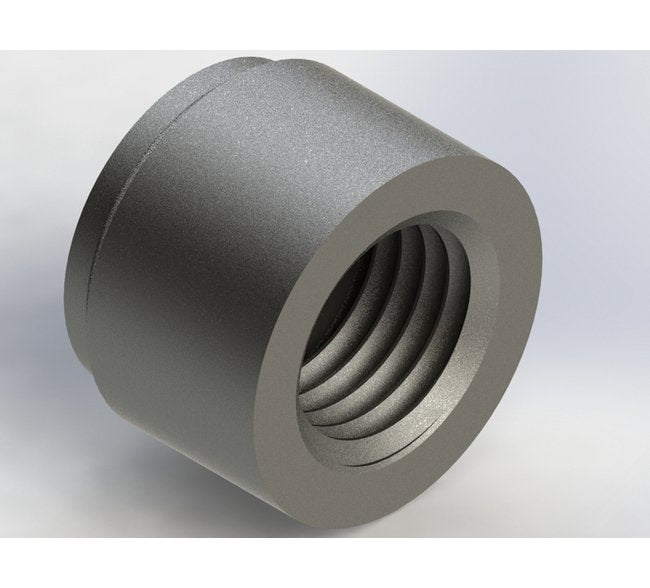

The Precision Metal Orifices - Press-Fit Inserts are meticulously designed for precise press-fitting into various fittings, manifolds, and customized parts. Crafted from high-quality 303 SS material, these inserts offer exceptional accuracy with an orifice diameter accuracy of ±0.0005 inches. Ideal for controlling fluid and gas flow rates, these inserts boast a CV of 0.230 and can withstand a maximum operating pressure of 4000 psig. Suitable for a wide range of applications requiring impeccable flow control, these orifices ensure reliability and efficiency in fluid systems.
Product Specifications
Application 0

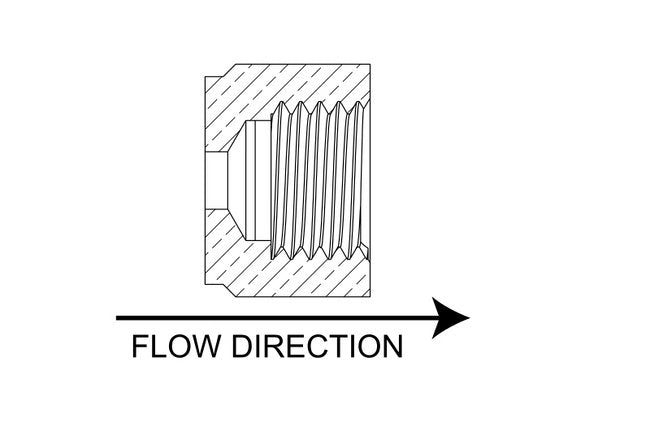

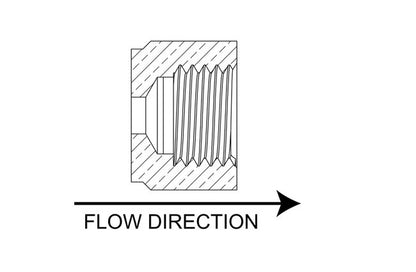

The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.

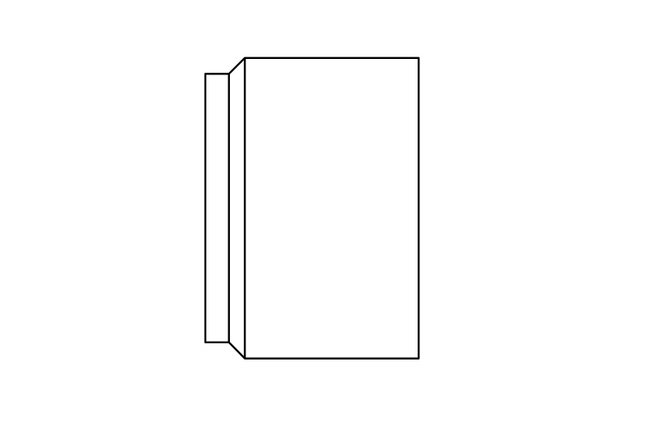

Dimensions Maximum Outside Diameter
0.3805 in
Dimensions Minimum Outside Diameter
0.3800 in
Dimensions Orifice Diameter
0.1000 in | 2.54 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.3785 to 0.3795 in
Dimensions Thread Size
10-32
Dimensions Total Length
0.270 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 69.8 | 5 psig: 150 | 10 psig: 196 | 15 psig: 235 | 20 psig: 275 | 25 psig: 316 | 30 psig: 356 | 40 psig: 439 | 50 psig: 523 | 60 psig: 606 | 70 psig: 693 | 80 psig: 778 | 90 psig: 860 | 100 psig: 951
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 32.9 | 5 psig (34.5 kPag): 70.8 | 10 psig (69.0 kPag): 92.3 | 15 psig (103.4 kPag): 111 | 20 psig (137.9 kPag): 130 | 25 psig (172.4 kPag): 149 | 30 psig (206.9 kPag): 168 | 40 psig (275.8 kPag): 207 | 50 psig (344.8 kPag): 247 | 60 psig (413.7 kPag): 286 | 70 psig (482.7 kPag): 327 | 80 psig (551.6 kPag): 367 | 90 psig (620.6 kPag): 406 | 100 psig (689.5 kPag): 449
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 125 | 20 In. Hg.: 125 | 30 In. Hg.: 125
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 59 | 20 In. Hg. (508 Mm. Hg.): 59 | 30 In. Hg. (762 Mm. Hg.): 59
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 96.1 | 10 In. Hg.: 120
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 45.3 | 10 In. Hg. (254 Mm. Hg.): 56.6
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.230 | 2 psig: 0.325 | 3 psig: 0.398 | 4 psig: 0.460 | 5 psig: 0.514 | 6 psig: 0.563 | 7 psig: 0.609 | 8 psig: 0.651 | 9 psig: 0.690 | 10 psig: 0.727 | 15 psig: 0.891 | 20 psig: 1.029 | 30 psig: 1.260 | 40 psig: 1.455 | 50 psig: 1.626 | 60 psig: 1.782 | 70 psig: 1.924 | 80 psig: 2.057 | 90 psig: 2.182 | 100 psig: 2.300
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.871 | 2 psig (13.8 kPag): 1.231 | 3 psig (20.7 kPag): 1.508 | 4 psig (27.6 kPag): 1.741 | 5 psig (34.5 kPag): 1.947 | 6 psig (41.4 kPag): 2.133 | 7 psig (48.3 kPag): 2.304 | 8 psig (55.2 kPag): 2.463 | 9 psig (62.1 kPag): 2.612 | 10 psig (69 kPag): 2.753 | 15 psig (103.4 kPag): 3.372 | 20 psig (137.9 kPag): 3.894 | 30 psig (206.9 kPag): 4.769 | 40 psig (275.8 kPag): 5.506 | 50 psig (344.8 kPag): 6.156 | 60 psig (413.7 kPag): 6.744 | 70 psig (482.7 kPag): 7.284 | 80 psig (551.6 kPag): 7.787 | 90 psig (620.6 kPag): 8.260 | 100 psig (689.5 kPag): 8.706
Specifications Connection A
.380" Press-Fit Insert
Specifications Cv
0.230
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
100
Specifications Screened
None
