Precision Metal Orifices - Press-Fit Inserts 0.380" OD | Institutional Grade
Precision Metal Orifices - Press-Fit Inserts 0.380" OD | Institutional Grade
SKU:PRE-f33927
Achieve precise flow control with our durable Precision Metal Orifices - Press-Fit Inserts. Ideal for high-pressure applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Precision Metal Orifices - Press-Fit Inserts 0.380" OD | Institutional Grade
$49.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - Press-Fit Inserts 0.380" OD | Institutional Grade
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience precision flow control with our Precision Metal Orifices - Press-Fit Inserts. These high-quality inserts are meticulously designed to press-fit into openings of fittings, manifolds, and custom parts with utmost accuracy. Crafted from durable 303 stainless steel, they ensure reliable performance under pressure up to 4000 psig. Ideal for controlling the flow rate of liquids or gases in various applications. With precise dimensions and superior construction, these inserts meet stringent institutional procurement standards, making them a top choice for government and industrial use.
Product Specifications
Application 0

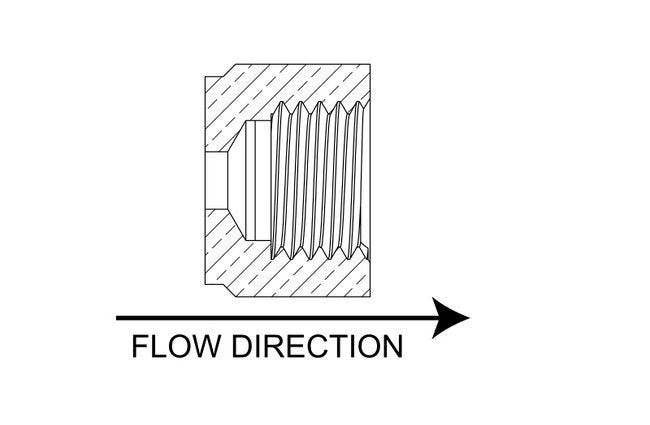

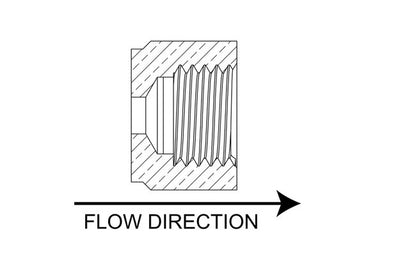

The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.

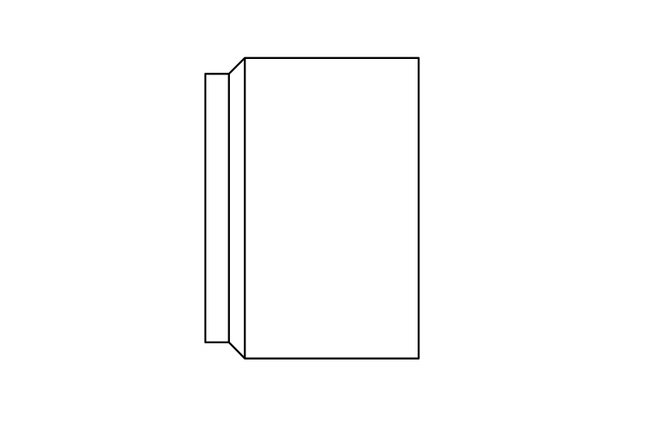

Dimensions Maximum Outside Diameter
0.3805 in
Dimensions Minimum Outside Diameter
0.3800 in
Dimensions Orifice Diameter
0.032 in | 0.81 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.3785 to 0.3795 in
Dimensions Thread Size
10-32
Dimensions Total Length
0.270 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 6.10 | 5 psig: 13.6 | 10 psig: 19.9 | 15 psig: 24.6 | 20 psig: 28.6 | 25 psig: 32.6 | 30 psig: 36.7 | 40 psig: 44.7 | 50 psig: 53.0 | 60 psig: 61.0 | 70 psig: 69.3 | 80 psig: 77.8 | 90 psig: 86.0 | 100 psig: 94.5
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 2.88 | 5 psig (34.5 kPag): 6.42 | 10 psig (69.0 kPag): 9.40 | 15 psig (103.4 kPag): 11.6 | 20 psig (137.9 kPag): 13.5 | 25 psig (172.4 kPag): 15.4 | 30 psig (206.9 kPag): 17.3 | 40 psig (275.8 kPag): 21.1 | 50 psig (344.8 kPag): 25.0 | 60 psig (413.7 kPag): 28.8 | 70 psig (482.7 kPag): 32.7 | 80 psig (551.6 kPag): 36.7 | 90 psig (620.6 kPag): 40.6 | 100 psig (689.5 kPag): 44.6
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 11.5 | 20 In. Hg.: 11.5 | 30 In. Hg.: 11.5
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 5.45 | 20 In. Hg. (508 Mm. Hg.): 5.45 | 30 In. Hg. (762 Mm. Hg.): 5.45
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 8.73 | 10 In. Hg.: 10.9
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 4.12 | 10 In. Hg. (254 Mm. Hg.): 5.16
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.024 | 2 psig: 0.034 | 3 psig: 0.042 | 4 psig: 0.048 | 5 psig: 0.054 | 6 psig: 0.059 | 7 psig: 0.063 | 8 psig: 0.068 | 9 psig: 0.072 | 10 psig: 0.076 | 15 psig: 0.093 | 20 psig: 0.107 | 30 psig: 0.131 | 40 psig: 0.152 | 50 psig: 0.170 | 60 psig: 0.186 | 70 psig: 0.201 | 80 psig: 0.215 | 90 psig: 0.228 | 100 psig: 0.240
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.091 | 2 psig (13.8 kPag): 0.128 | 3 psig (20.7 kPag): 0.157 | 4 psig (27.6 kPag): 0.182 | 5 psig (34.5 kPag): 0.203 | 6 psig (41.4 kPag): 0.203 | 7 psig (48.3 kPag): 0.240 | 8 psig (55.2 kPag): 0.257 | 9 psig (62.1 kPag): 0.273 | 10 psig (69 kPag): 0.287 | 15 psig (103.4 kPag): 0.352 | 20 psig (137.9 kPag): 0.406 | 30 psig (206.9 kPag): 0.498 | 40 psig (275.8 kPag): 0.575 | 50 psig (344.8 kPag): 0.642 | 60 psig (413.7 kPag): 0.704 | 70 psig (482.7 kPag): 0.760 | 80 psig (551.6 kPag): 0.813 | 90 psig (620.6 kPag): 0.862 | 100 psig (689.5 kPag): 0.908
Specifications Connection A
.380" Press-Fit Insert
Specifications Cv
0.024
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
32
Specifications Screened
None
