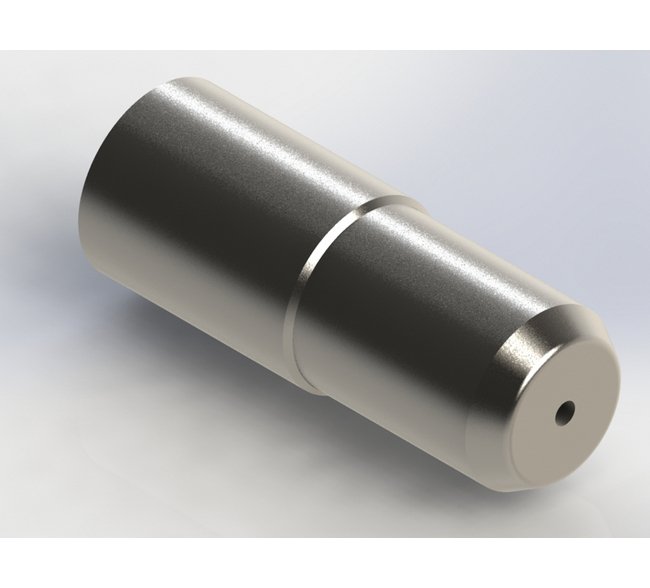

Precision Metal Orifices - Press-Fit Inserts Set, 0.094' OD
Precision Metal Orifices - Press-Fit Inserts Set, 0.094' OD
SKU:PRE-be43c4
Achieve precise fluid control with our durable Precision Metal Orifices - Press-Fit Inserts Set.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Metal Orifices - Press-Fit Inserts Set, 0.094' OD
$29.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - Press-Fit Inserts Set, 0.094' OD
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance fluid control in fittings, manifolds, and custom parts with our Precision Metal Orifices - Press-Fit Inserts Set. Crafted from durable 303 SS, these inserts offer precise orifice diameter accuracy (±0.0005 in), maximum operating pressure of 4000 psig, and optimal flow control for liquids or gases. Utilize these inserts for accurate flow rate control in various fittings and custom assemblies. Experience reliable performance and durability with our press-fit inserts designed for institutional applications.
Product Specifications
Application 0

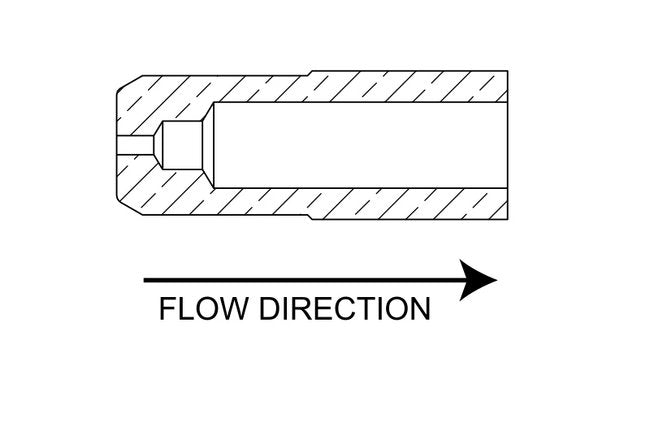

The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.

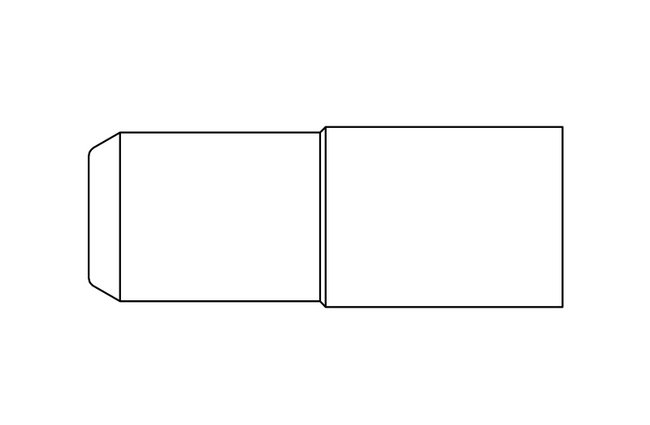

Dimensions Maximum Outside Diameter
0.0950 in
Dimensions Minimum Outside Diameter
0.0945 in
Dimensions Orifice Diameter
0.0059 in | 0.15 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.0930 to 0.0940 in
Dimensions Shank Length
0.125 in
Dimensions Total Length
0.25 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 0.182 | 5 psig: 0.45 | 10 psig: 0.65 | 15 psig: 0.82 | 20 psig: 0.97 | 25 psig: 1.12 | 30 psig: 1.26 | 40 psig: 1.56 | 50 psig: 1.86 | 60 psig: 2.16 | 70 psig: 2.46 | 80 psig: 2.75 | 90 psig: 3.05 | 100 psig: 3.35
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.086 | 5 psig (34.5 kPag): 0.21 | 10 psig (69.0 kPag): 0.31 | 15 psig (103.4 kPag): 0.39 | 20 psig (137.9 kPag): 0.46 | 25 psig (172.4 kPag): 0.53 | 30 psig (206.9 kPag): 0.60 | 40 psig (275.8 kPag): 0.74 | 50 psig (344.8 kPag): 0.88 | 60 psig (413.7 kPag): 1.02 | 70 psig (482.7 kPag): 1.16 | 80 psig (551.6 kPag): 1.30 | 90 psig (620.6 kPag): 1.44 | 100 psig (689.5 kPag): 1.58
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 0.392 | 20 In. Hg.: 0.392 | 30 In. Hg.: 0.392
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 0.185 | 20 In. Hg. (508 Mm. Hg.): 0.185 | 30 In. Hg. (762 Mm. Hg.): 0.185
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 0.273 | 10 In. Hg.: 0.356
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.129 | 10 In. Hg. (254 Mm. Hg.): 0.168
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0009 | 2 psig: 0.0012 | 3 psig: 0.0015 | 4 psig: 0.0017 | 5 psig: 0.0019 | 6 psig: 0.0021 | 7 psig: 0.0023 | 8 psig: 0.0024 | 9 psig: 0.0026 | 10 psig: 0.0027 | 15 psig: 0.0033 | 20 psig: 0.0038 | 30 psig: 0.0047 | 40 psig: 0.0054 | 50 psig: 0.0061 | 60 psig: 0.0067 | 70 psig: 0.0072 | 80 psig: 0.0077 | 90 psig: 0.0082 | 100 psig: 0.0086
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0033 | 2 psig (13.8 kPag): 0.0046 | 3 psig (20.7 kPag): 0.0056 | 4 psig (27.6 kPag): 0.0065 | 5 psig (34.5 kPag): 0.0073 | 6 psig (41.4 kPag): 0.0073 | 7 psig (48.3 kPag): 0.0086 | 8 psig (55.2 kPag): 0.0092 | 9 psig (62.1 kPag): 0.0098 | 10 psig (69 kPag): 0.0103 | 15 psig (103.4 kPag): 0.0126 | 20 psig (137.9 kPag): 0.0146 | 30 psig (206.9 kPag): 0.0178 | 40 psig (275.8 kPag): 0.0206 | 50 psig (344.8 kPag): 0.0230 | 60 psig (413.7 kPag): 0.0252 | 70 psig (482.7 kPag): 0.0272 | 80 psig (551.6 kPag): 0.0291 | 90 psig (620.6 kPag): 0.0309 | 100 psig (689.5 kPag): 0.0326
Specifications Connection A
.0945" Press-Fit Insert
Specifications Cv
0.00086
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
6
Specifications Screened
None
