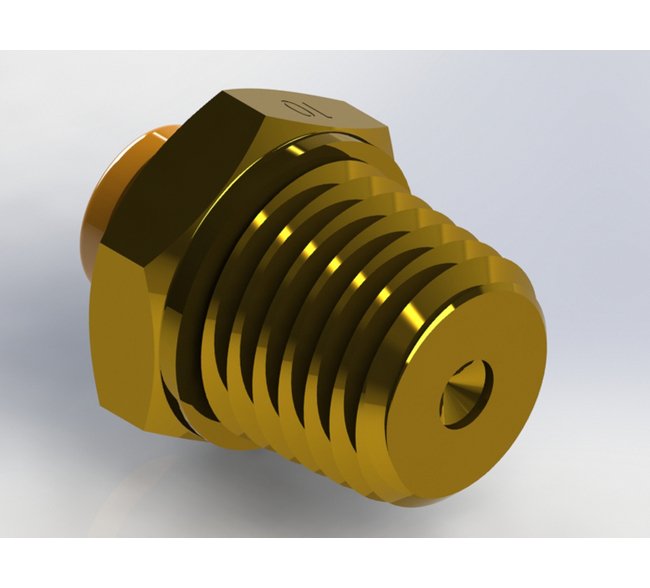

Precision Metal Orifices - Push-On Tube Adapters 1/4 inch NPT x Tube
Precision Metal Orifices - Push-On Tube Adapters 1/4 inch NPT x Tube
SKU:PRE-a05f31
High-performance Precision Metal Orifices for precise industrial applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Metal Orifices - Push-On Tube Adapters 1/4 inch NPT x Tube
$29.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - Push-On Tube Adapters 1/4 inch NPT x Tube
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Metal Orifices - Push-On Tube Adapters are crafted for precision and durability. Featuring a brass/plastic construction with a Buna-N seal, these adapters ensure reliable performance. With a maximum operating pressure of 140 psig and precise flow data at varying pressures, these adapters deliver efficient air and water flow. The 1/4" NPT Male and 5/32" OD Tube Push-Lock connections provide a secure fit, making these adapters ideal for industrial applications. Meet your precision orifice needs with these high-quality adapters that combine performance and longevity.
Product Specifications
Dimensions Orifice Diameter
0.011 in
Dimensions Total Length
0.77 in
Dimensions Width Across Flats Hex
5/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 0.653 | 5 psig: 1.51 | 10 psig: 2.14 | 15 psig: 2.67 | 20 psig: 3.16 | 25 psig: 3.62 | 30 psig: 4.09 | 40 psig: 5.02 | 50 psig: 5.93 | 60 psig: 6.84 | 70 psig: 7.76 | 80 psig: 8.67 | 90 psig: 9.56 | 100 psig: 10.5
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.308 | 5 psig (34.5 kPag): 0.71 | 10 psig (69.0 kPag): 1.01 | 15 psig (103.4 kPag): 1.26 | 20 psig (137.9 kPag): 1.49 | 25 psig (172.4 kPag): 1.71 | 30 psig (206.9 kPag): 1.93 | 40 psig (275.8 kPag): 2.37 | 50 psig (344.8 kPag): 2.80 | 60 psig (413.7 kPag): 3.23 | 70 psig (482.7 kPag): 3.66 | 80 psig (551.6 kPag): 4.09 | 90 psig (620.6 kPag): 4.51 | 100 psig (689.5 kPag): 4.94
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 1.30 | 20 In. Hg.: 1.30 | 30 In. Hg.: 1.30
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 0.614 | 20 In. Hg. (508 Mm. Hg.): 0.614 | 30 In. Hg. (762 Mm. Hg.): 0.614
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 0.953 | 10 In. Hg.: 1.20
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.450 | 10 In. Hg. (254 Mm. Hg.): 0.564
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0028 | 2 psig: 0.0040 | 3 psig: 0.0048 | 4 psig: 0.0056 | 5 psig: 0.0063 | 6 psig: 0.0069 | 7 psig: 0.0074 | 8 psig: 0.0079 | 9 psig: 0.0084 | 10 psig: 0.0089 | 15 psig: 0.0108 | 20 psig: 0.0125 | 30 psig: 0.0153 | 40 psig: 0.0177 | 50 psig: 0.0198 | 60 psig: 0.0217 | 70 psig: 0.0234 | 80 psig: 0.0250 | 90 psig: 0.0266 | 100 psig: 0.0280
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0106 | 2 psig (13.8 kPag): 0.0150 | 3 psig (20.7 kPag): 0.0184 | 4 psig (27.6 kPag): 0.0212 | 5 psig (34.5 kPag): 0.0237 | 6 psig (41.4 kPag): 0.0237 | 7 psig (48.3 kPag): 0.0280 | 8 psig (55.2 kPag): 0.0300 | 9 psig (62.1 kPag): 0.0318 | 10 psig (69 kPag): 0.0335 | 15 psig (103.4 kPag): 0.0411 | 20 psig (137.9 kPag): 0.0474 | 30 psig (206.9 kPag): 0.0581 | 40 psig (275.8 kPag): 0.0670 | 50 psig (344.8 kPag): 0.0749 | 60 psig (413.7 kPag): 0.0821 | 70 psig (482.7 kPag): 0.0887 | 80 psig (551.6 kPag): 0.0948 | 90 psig (620.6 kPag): 0.1006 | 100 psig (689.5 kPag): 0.1060
Specifications Connection A
1/4" NPT Male
Specifications Connection B
5/32" OD Tube Push-Lock
Specifications Cv
0.0028
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
11
Specifications Screened
None
Specifications Seal Material
Buna-N
