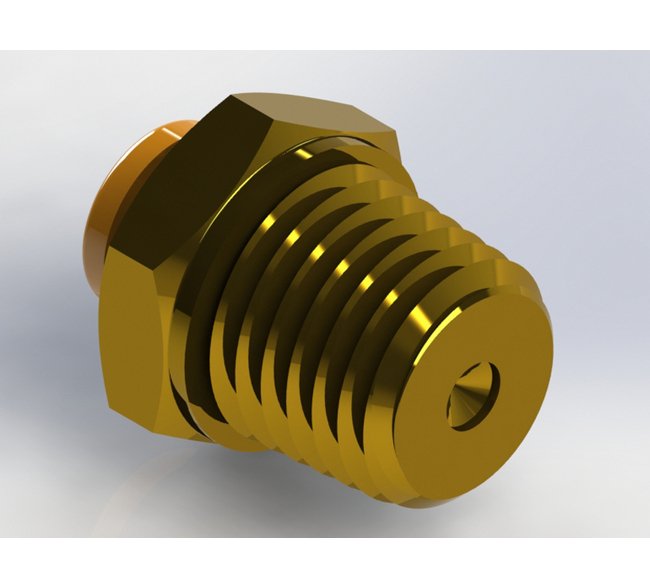

Precision Metal Orifices - Push-On Tube Adapters 1/4 NPT
Precision Metal Orifices - Push-On Tube Adapters 1/4 NPT
SKU:PRE-5c0912
High-performance Precision Metal Orifices for precise airflow and water flow control in industrial settings.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Precision Metal Orifices - Push-On Tube Adapters 1/4 NPT
$24.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - Push-On Tube Adapters 1/4 NPT
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Metal Orifices - Push-On Tube Adapters in 1/4 NPT size provide superior performance in controlling airflow and water flow. Crafted from durable brass/plastic with a Buna-N seal, these orifices feature precise dimensions to ensure efficient operation. With a maximum operating pressure of 140 psig, these adapters are ideal for industrial applications requiring high precision and reliability.
Product Specifications
Dimensions Orifice Diameter
0.0122 in
Dimensions Total Length
0.830 in
Dimensions Width Across Flats Hex
5/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 0.843 | 5 psig: 1.94 | 10 psig: 2.73 | 15 psig: 3.43 | 20 psig: 4.07 | 25 psig: 4.66 | 30 psig: 5.23 | 40 psig: 6.44 | 50 psig: 7.59 | 60 psig: 8.75 | 70 psig: 9.92 | 80 psig: 11.1 | 90 psig: 12.2 | 100 psig: 13.4
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.398 | 5 psig (34.5 kPag): 0.92 | 10 psig (69.0 kPag): 1.29 | 15 psig (103.4 kPag): 1.62 | 20 psig (137.9 kPag): 1.92 | 25 psig (172.4 kPag): 2.20 | 30 psig (206.9 kPag): 2.47 | 40 psig (275.8 kPag): 3.04 | 50 psig (344.8 kPag): 3.58 | 60 psig (413.7 kPag): 4.13 | 70 psig (482.7 kPag): 4.68 | 80 psig (551.6 kPag): 5.23 | 90 psig (620.6 kPag): 5.78 | 100 psig (689.5 kPag): 6.33
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 1.68 | 20 In. Hg.: 1.68 | 30 In. Hg.: 1.68
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 0.792 | 20 In. Hg. (508 Mm. Hg.): 0.792 | 30 In. Hg. (762 Mm. Hg.): 0.792
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 1.23 | 10 In. Hg.: 1.55
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.582 | 10 In. Hg. (254 Mm. Hg.): 0.730
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0034 | 2 psig: 0.0048 | 3 psig: 0.0059 | 4 psig: 0.0068 | 5 psig: 0.0076 | 6 psig: 0.0083 | 7 psig: 0.0090 | 8 psig: 0.0096 | 9 psig: 0.0102 | 10 psig: 0.0108 | 15 psig: 0.0132 | 20 psig: 0.0152 | 30 psig: 0.0186 | 40 psig: 0.0215 | 50 psig: 0.0240 | 60 psig: 0.0263 | 70 psig: 0.0284 | 80 psig: 0.0304 | 90 psig: 0.0323 | 100 psig: 0.0340
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0129 | 2 psig (13.8 kPag): 0.0182 | 3 psig (20.7 kPag): 0.0223 | 4 psig (27.6 kPag): 0.0257 | 5 psig (34.5 kPag): 0.0288 | 6 psig (41.4 kPag): 0.0288 | 7 psig (48.3 kPag): 0.0341 | 8 psig (55.2 kPag): 0.0364 | 9 psig (62.1 kPag): 0.0386 | 10 psig (69 kPag): 0.0407 | 15 psig (103.4 kPag): 0.0498 | 20 psig (137.9 kPag): 0.0576 | 30 psig (206.9 kPag): 0.0705 | 40 psig (275.8 kPag): 0.0814 | 50 psig (344.8 kPag): 0.0910 | 60 psig (413.7 kPag): 0.0997 | 70 psig (482.7 kPag): 0.1077 | 80 psig (551.6 kPag): 0.1151 | 90 psig (620.6 kPag): 0.1221 | 100 psig (689.5 kPag): 0.1287
Specifications Connection A
1/4" NPT Male
Specifications Connection B
3/16" OD Tube Push-Lock
Specifications Cv
0.0034
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
12
Specifications Screened
None
Specifications Seal Material
Buna-N
