Precision Metal Orifices - Push-On Tube Adapters 1/4 NPT x Tube
Precision Metal Orifices - Push-On Tube Adapters 1/4 NPT x Tube
SKU:PRE-a2a2d1
High-performance Precision Metal Orifices for precise flow control, perfect for government & institutional use.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Precision Metal Orifices - Push-On Tube Adapters 1/4 NPT x Tube
$24.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - Push-On Tube Adapters 1/4 NPT x Tube
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

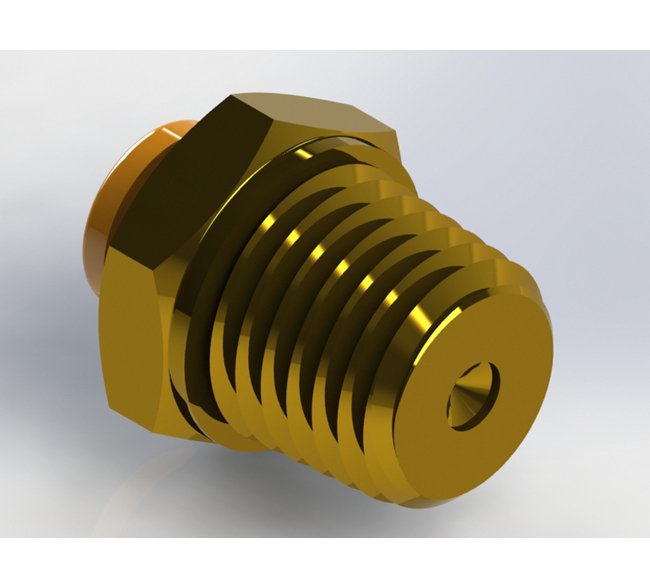

The Precision Metal Orifices - Push-On Tube Adapters 1/4 NPT x Tube are expertly crafted with brass/plastic materials and Buna-N seals, ensuring durability and reliability. With a maximum operating pressure of 140 psig and precise orifice size of 0.016 inches, these adapters deliver exceptional air and water flow control. Meeting stringent industry standards like FAR compliance factors and DLA standards, this product is ideal for government and institutional procurement needs.
Product Specifications
Dimensions Orifice Diameter
0.016 in
Dimensions Total Length
0.830 in
Dimensions Width Across Flats Hex
5/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 1.40 | 5 psig: 3.26 | 10 psig: 4.26 | 15 psig: 5.30 | 20 psig: 6.29 | 25 psig: 7.25 | 30 psig: 8.20 | 40 psig: 10.1 | 50 psig: 12.1 | 60 psig: 14.0 | 70 psig: 16 | 80 psig: 17.9 | 90 psig: 19.9 | 100 psig: 21.8
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.66 | 5 psig (34.5 kPag): 1.54 | 10 psig (69.0 kPag): 2.01 | 15 psig (103.4 kPag): 2.50 | 20 psig (137.9 kPag): 2.97 | 25 psig (172.4 kPag): 3.42 | 30 psig (206.9 kPag): 3.87 | 40 psig (275.8 kPag): 4.78 | 50 psig (344.8 kPag): 5.70 | 60 psig (413.7 kPag): 6.61 | 70 psig (482.7 kPag): 7.53 | 80 psig (551.6 kPag): 8.46 | 90 psig (620.6 kPag): 9.38 | 100 psig (689.5 kPag): 10.3
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 2.86 | 20 In. Hg.: 2.86 | 30 In. Hg.: 2.86
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 1.35 | 20 In. Hg. (508 Mm. Hg.): 1.35 | 30 In. Hg. (762 Mm. Hg.): 1.35
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 2.07 | 10 In. Hg.: 2.62
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.977 | 10 In. Hg. (254 Mm. Hg.): 1.24
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0055 | 2 psig: 0.0078 | 3 psig: 0.0095 | 4 psig: 0.0110 | 5 psig: 0.0123 | 6 psig: 0.0135 | 7 psig: 0.0146 | 8 psig: 0.0156 | 9 psig: 0.0165 | 10 psig: 0.0174 | 15 psig: 0.0213 | 20 psig: 0.0246 | 30 psig: 0.0301 | 40 psig: 0.0348 | 50 psig: 0.0389 | 60 psig: 0.0426 | 70 psig: 0.0460 | 80 psig: 0.0492 | 90 psig: 0.0522 | 100 psig: 0.0550
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0208 | 2 psig (13.8 kPag): 0.0294 | 3 psig (20.7 kPag): 0.0361 | 4 psig (27.6 kPag): 0.0416 | 5 psig (34.5 kPag): 0.0466 | 6 psig (41.4 kPag): 0.0466 | 7 psig (48.3 kPag): 0.0551 | 8 psig (55.2 kPag): 0.0589 | 9 psig (62.1 kPag): 0.0625 | 10 psig (69 kPag): 0.0658 | 15 psig (103.4 kPag): 0.0806 | 20 psig (137.9 kPag): 0.0931 | 30 psig (206.9 kPag): 0.1140 | 40 psig (275.8 kPag): 0.1317 | 50 psig (344.8 kPag): 0.1472 | 60 psig (413.7 kPag): 0.1613 | 70 psig (482.7 kPag): 0.1742 | 80 psig (551.6 kPag): 0.1862 | 90 psig (620.6 kPag): 0.1975 | 100 psig (689.5 kPag): 0.2082
Specifications Connection A
1/4" NPT Male
Specifications Connection B
3/16" OD Tube Push-Lock
Specifications Cv
0.0055
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
16
Specifications Screened
None
Specifications Seal Material
Buna-N
