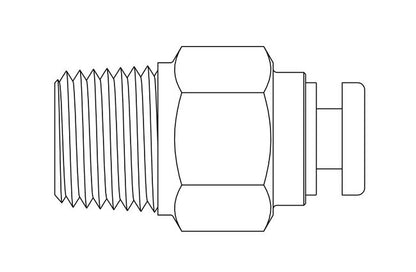

Precision Metal Orifices - Push-On Tube Adapters, 1/8" NPT x Tube
Precision Metal Orifices - Push-On Tube Adapters, 1/8" NPT x Tube
SKU:PRE-c0750e
High-quality Precision Metal Orifices for reliable flow control
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Precision Metal Orifices - Push-On Tube Adapters, 1/8" NPT x Tube
$24.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - Push-On Tube Adapters, 1/8" NPT x Tube
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

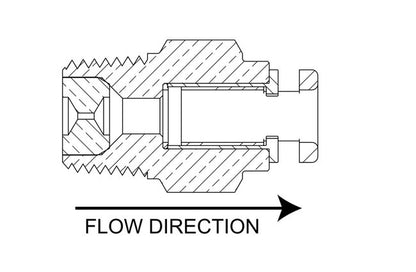

The Precision Metal Orifices - Push-On Tube Adapters feature an Orifice Diameter of 0.039in and a durable Brass/Plastic construction. With a Maximum Operating Pressure of 140 psig, these adapters ensure reliable performance. Ideal for applications requiring precision flow control, these adapters meet stringent quality standards and offer exceptional CV value of 0.033. From Air Flow to Water Flow, these adapters provide accurate readings for various pressures and vacuum levels.
Product Specifications
Dimensions Orifice Diameter
0.039 in
Dimensions Total Length
0.87 in
Dimensions Width Across Flats Hex
7/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 9.45 | 5 psig: 20.6 | 10 psig: 28.8 | 15 psig: 35.4 | 20 psig: 41.5 | 25 psig: 47.9 | 30 psig: 54.2 | 40 psig: 67.0 | 50 psig: 79.7 | 60 psig: 92.8 | 70 psig: 106 | 80 psig: 119 | 90 psig: 132 | 100 psig: 146
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 4.46 | 5 psig (34.5 kPag): 9.7 | 10 psig (69.0 kPag): 13.6 | 15 psig (103.4 kPag): 16.7 | 20 psig (137.9 kPag): 19.6 | 25 psig (172.4 kPag): 22.6 | 30 psig (206.9 kPag): 25.6 | 40 psig (275.8 kPag): 31.6 | 50 psig (344.8 kPag): 37.6 | 60 psig (413.7 kPag): 43.8 | 70 psig (482.7 kPag): 50 | 80 psig (551.6 kPag): 56.2 | 90 psig (620.6 kPag): 62.4 | 100 psig (689.5 kPag): 68.7
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 17.4 | 20 In. Hg.: 17.4 | 30 In. Hg.: 17.4
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 8.22 | 20 In. Hg. (508 Mm. Hg.): 8.22 | 30 In. Hg. (762 Mm. Hg.): 8.22
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 13.3 | 10 In. Hg.: 16.6
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 6.29 | 10 In. Hg. (254 Mm. Hg.): 7.85
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.033 | 2 psig: 0.047 | 3 psig: 0.057 | 4 psig: 0.066 | 5 psig: 0.074 | 6 psig: 0.081 | 7 psig: 0.087 | 8 psig: 0.093 | 9 psig: 0.099 | 10 psig: 0.104 | 15 psig: 0.128 | 20 psig: 0.148 | 30 psig: 0.181 | 40 psig: 0.209 | 50 psig: 0.233 | 60 psig: 0.256 | 70 psig: 0.276 | 80 psig: 0.295 | 90 psig: 0.313 | 100 psig: 0.330
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.125 | 2 psig (13.8 kPag): 0.177 | 3 psig (20.7 kPag): 0.216 | 4 psig (27.6 kPag): 0.250 | 5 psig (34.5 kPag): 0.279 | 6 psig (41.4 kPag): 0.306 | 7 psig (48.3 kPag): 0.331 | 8 psig (55.2 kPag): 0.353 | 9 psig (62.1 kPag): 0.375 | 10 psig (69 kPag): 0.395 | 15 psig (103.4 kPag): 0.484 | 20 psig (137.9 kPag): 0.559 | 30 psig (206.9 kPag): 0.684 | 40 psig (275.8 kPag): 0.79 | 50 psig (344.8 kPag): 0.883 | 60 psig (413.7 kPag): 0.968 | 70 psig (482.7 kPag): 1.045 | 80 psig (551.6 kPag): 1.117 | 90 psig (620.6 kPag): 1.185 | 100 psig (689.5 kPag): 1.249
Specifications Connection A
1/8" NPT Male
Specifications Connection B
5/32" OD Tube Push-Lock
Specifications Cv
0.033
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
39
Specifications Screened
None
Specifications Seal Material
Buna-N
