Precision Metal Orifices - Push-On Tube Adapters (1/8" NPT x Tube)
Precision Metal Orifices - Push-On Tube Adapters (1/8" NPT x Tube)
SKU:PRE-d4e50b
Enhance flow control precision with our Precision Metal Orifices - Push-On Tube Adapters (1/8" NPT x Tube), designed for durability and accuracy.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Metal Orifices - Push-On Tube Adapters (1/8" NPT x Tube)
$29.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - Push-On Tube Adapters (1/8" NPT x Tube)
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

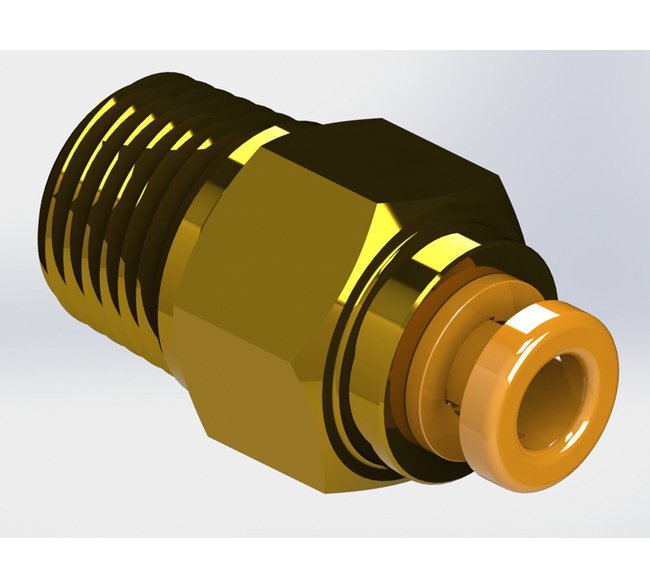

The Precision Metal Orifices - Push-On Tube Adapters are expertly designed for precise flow control applications. Crafted from durable Brass/Plastic with a Buna-N seal, these adapters offer a Nominal Orifice Size of 21 and a CV of 0.0096, ensuring consistent performance. With a maximum operating pressure of 140 psig and connections suitable for 1/8" NPT Male and 1/8" OD Tube Push-Lock, these adapters deliver reliable results. Ideal for a wide range of applications, these orifices provide accurate air and water flow rates, meeting stringent industry standards and ensuring high efficiency.

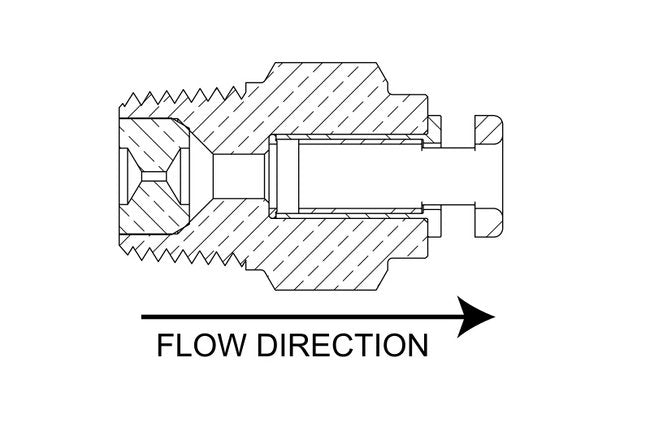

Product Specifications

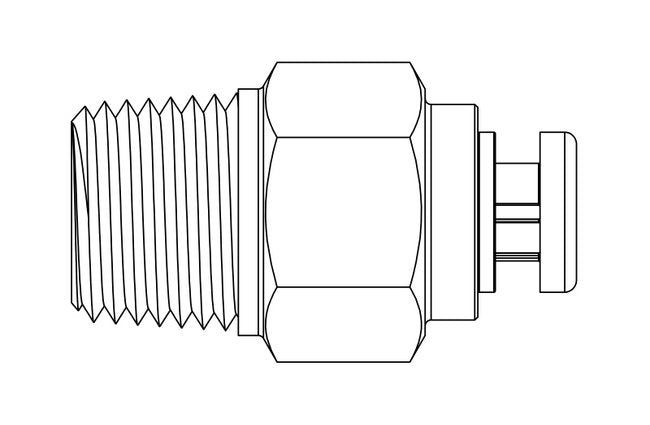

Dimensions Orifice Diameter
0.021 in
Dimensions Total Length
0.87 in
Dimensions Width Across Flats Hex
7/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 2.39 | 5 psig: 5.62 | 10 psig: 7.48 | 15 psig: 9.34 | 20 psig: 11.1 | 25 psig: 12.7 | 30 psig: 14.4 | 40 psig: 17.8 | 50 psig: 21.2 | 60 psig: 24.6 | 70 psig: 28.0 | 80 psig: 31.6 | 90 psig: 35.0 | 100 psig: 38.1
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 1.13 | 5 psig (34.5 kPag): 2.65 | 10 psig (69.0 kPag): 3.53 | 15 psig (103.4 kPag): 4.41 | 20 psig (137.9 kPag): 5.22 | 25 psig (172.4 kPag): 6.01 | 30 psig (206.9 kPag): 6.81 | 40 psig (275.8 kPag): 8.42 | 50 psig (344.8 kPag): 10.0 | 60 psig (413.7 kPag): 11.6 | 70 psig (482.7 kPag): 13.2 | 80 psig (551.6 kPag): 14.9 | 90 psig (620.6 kPag): 16.5 | 100 psig (689.5 kPag): 18.0
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 4.92 | 20 In. Hg.: 4.92 | 30 In. Hg.: 4.92
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 2.32 | 20 In. Hg. (508 Mm. Hg.): 2.32 | 30 In. Hg. (762 Mm. Hg.): 2.32
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 3.6 | 10 In. Hg.: 4.62
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 1.70 | 10 In. Hg. (254 Mm. Hg.): 2.18
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.010 | 2 psig: 0.014 | 3 psig: 0.017 | 4 psig: 0.019 | 5 psig: 0.021 | 6 psig: 0.024 | 7 psig: 0.025 | 8 psig: 0.027 | 9 psig: 0.029 | 10 psig: 0.030 | 15 psig: 0.037 | 20 psig: 0.043 | 30 psig: 0.053 | 40 psig: 0.061 | 50 psig: 0.068 | 60 psig: 0.074 | 70 psig: 0.080 | 80 psig: 0.086 | 90 psig: 0.091 | 100 psig: 0.096
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.036 | 2 psig (13.8 kPag): 0.051 | 3 psig (20.7 kPag): 0.063 | 4 psig (27.6 kPag): 0.073 | 5 psig (34.5 kPag): 0.081 | 6 psig (41.4 kPag): 0.081 | 7 psig (48.3 kPag): 0.096 | 8 psig (55.2 kPag): 0.103 | 9 psig (62.1 kPag): 0.109 | 10 psig (69 kPag): 0.115 | 15 psig (103.4 kPag): 0.141 | 20 psig (137.9 kPag): 0.163 | 30 psig (206.9 kPag): 0.199 | 40 psig (275.8 kPag): 0.230 | 50 psig (344.8 kPag): 0.257 | 60 psig (413.7 kPag): 0.281 | 70 psig (482.7 kPag): 0.304 | 80 psig (551.6 kPag): 0.325 | 90 psig (620.6 kPag): 0.345 | 100 psig (689.5 kPag): 0.363
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/8" OD Tube Push-Lock
Specifications Cv
0.0096
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
21
Specifications Screened
None
Specifications Seal Material
Buna-N
