Precision Metal Orifices - Push-On Tube Adapters, 1/8" NPT x Tube
Precision Metal Orifices - Push-On Tube Adapters, 1/8" NPT x Tube
SKU:PRE-817390
Premium Precision Metal Orifices for optimal air and water flow control. Durable, reliable, and crafted for precision.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Metal Orifices - Push-On Tube Adapters, 1/8" NPT x Tube
$29.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - Push-On Tube Adapters, 1/8" NPT x Tube
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

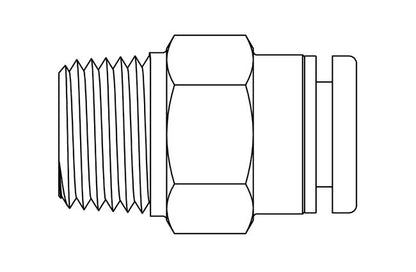

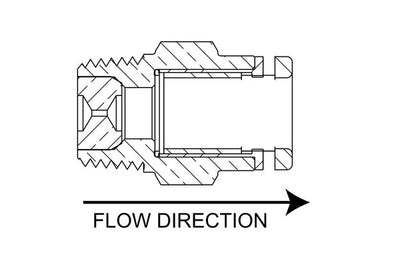

The Precision Metal Orifices - Push-On Tube Adapters are crafted with precision to ensure optimal performance and durability. Made of Brass/Plastic with a Buna-N seal, these adapters guarantee a tight and secure connection. With a CV of 0.031 and a maximum operating pressure of 140 psig, they deliver consistent and reliable results. Ideal for applications requiring precise air or water flow control, these adapters are trusted for their accuracy and efficiency.
Product Specifications
Dimensions Orifice Diameter
0.037 in
Dimensions Total Length
0.89 in
Dimensions Width Across Flats Hex
5/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 8.12 | 5 psig: 18.0 | 10 psig: 25.0 | 15 psig: 30.7 | 20 psig: 36.0 | 25 psig: 41.5 | 30 psig: 47.0 | 40 psig: 58.1 | 50 psig: 69.1 | 60 psig: 80.5 | 70 psig: 91.7 | 80 psig: 103 | 90 psig: 115 | 100 psig: 126
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 3.83 | 5 psig (34.5 kPag): 8.48 | 10 psig (69.0 kPag): 11.8 | 15 psig (103.4 kPag): 14.5 | 20 psig (137.9 kPag): 17 | 25 psig (172.4 kPag): 19.6 | 30 psig (206.9 kPag): 22.2 | 40 psig (275.8 kPag): 27.4 | 50 psig (344.8 kPag): 32.6 | 60 psig (413.7 kPag): 38 | 70 psig (482.7 kPag): 43.3 | 80 psig (551.6 kPag): 48.7 | 90 psig (620.6 kPag): 54.2 | 100 psig (689.5 kPag): 59.6
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 15.2 | 20 In. Hg.: 15.2 | 30 In. Hg.: 15.2
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 7.17 | 20 In. Hg. (508 Mm. Hg.): 7.17 | 30 In. Hg. (762 Mm. Hg.): 7.17
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 11.4 | 10 In. Hg.: 14.4
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 5.4 | 10 In. Hg. (254 Mm. Hg.): 6.78
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.031 | 2 psig: 0.044 | 3 psig: 0.054 | 4 psig: 0.062 | 5 psig: 0.069 | 6 psig: 0.076 | 7 psig: 0.082 | 8 psig: 0.088 | 9 psig: 0.093 | 10 psig: 0.098 | 15 psig: 0.120 | 20 psig: 0.139 | 30 psig: 0.170 | 40 psig: 0.196 | 50 psig: 0.219 | 60 psig: 0.240 | 70 psig: 0.259 | 80 psig: 0.277 | 90 psig: 0.294 | 100 psig: 0.310
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.117 | 2 psig (13.8 kPag): 0.166 | 3 psig (20.7 kPag): 0.203 | 4 psig (27.6 kPag): 0.235 | 5 psig (34.5 kPag): 0.262 | 6 psig (41.4 kPag): 0.287 | 7 psig (48.3 kPag): 0.310 | 8 psig (55.2 kPag): 0.332 | 9 psig (62.1 kPag): 0.352 | 10 psig (69 kPag): 0.371 | 15 psig (103.4 kPag): 0.454 | 20 psig (137.9 kPag): 0.525 | 30 psig (206.9 kPag): 0.643 | 40 psig (275.8 kPag): 0.742 | 50 psig (344.8 kPag): 0.83 | 60 psig (413.7 kPag): 0.909 | 70 psig (482.7 kPag): 0.982 | 80 psig (551.6 kPag): 1.050 | 90 psig (620.6 kPag): 1.113 | 100 psig (689.5 kPag): 1.173
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/4" OD Tube Push-Lock
Specifications Cv
0.031
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
37
Specifications Screened
None
Specifications Seal Material
Buna-N
