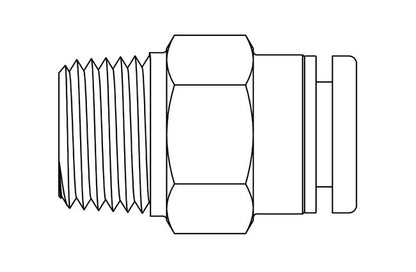

Precision Metal Orifices Push-On Tube Adapters 1/8 NPT x Tube
Precision Metal Orifices Push-On Tube Adapters 1/8 NPT x Tube
SKU:PRE-39c048
Enhance precision flow control with our durable Precision Metal Orifices Push-On Tube Adapters - ideal for industrial settings.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Metal Orifices Push-On Tube Adapters 1/8 NPT x Tube
$29.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices Push-On Tube Adapters 1/8 NPT x Tube
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

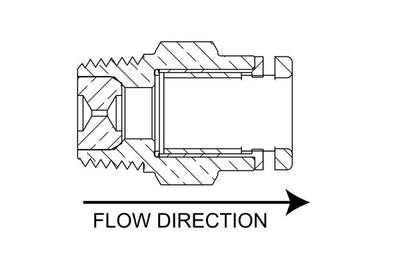

Enhance your precision gas or liquid flow control with our Precision Metal Orifices Push-On Tube Adapters. Made of durable Brass/Plastic material with a Buna-N seal, these adapters offer a Nominal Orifice Size of 35 and a CV of 0.028. With a maximum operating pressure of 140 psig, these adapters provide reliable connectivity. Designed for efficiency, they ensure precise air and water flow rates to meet your operational needs. Ideal for industrial settings requiring tight control over flow rates.
Product Specifications
Dimensions Orifice Diameter
0.035 in
Dimensions Total Length
0.89 in
Dimensions Width Across Flats Hex
5/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 7.37 | 5 psig: 16.3 | 10 psig: 22.5 | 15 psig: 27.8 | 20 psig: 32.4 | 25 psig: 37.5 | 30 psig: 42.4 | 40 psig: 52.5 | 50 psig: 62.5 | 60 psig: 72.7 | 70 psig: 83.1 | 80 psig: 93.0 | 90 psig: 106 | 100 psig: 114
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 3.48 | 5 psig (34.5 kPag): 7.67 | 10 psig (69.0 kPag): 10.6 | 15 psig (103.4 kPag): 13.1 | 20 psig (137.9 kPag): 15.3 | 25 psig (172.4 kPag): 17.7 | 30 psig (206.9 kPag): 20 | 40 psig (275.8 kPag): 24.8 | 50 psig (344.8 kPag): 29.5 | 60 psig (413.7 kPag): 34.3 | 70 psig (482.7 kPag): 39.2 | 80 psig (551.6 kPag): 44 | 90 psig (620.6 kPag): 50 | 100 psig (689.5 kPag): 53.9
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 13.8 | 20 In. Hg.: 13.8 | 30 In. Hg.: 13.8
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 6.5 | 20 In. Hg. (508 Mm. Hg.): 6.5 | 30 In. Hg. (762 Mm. Hg.): 6.5
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 10.4 | 10 In. Hg.: 13.1
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 4.92 | 10 In. Hg. (254 Mm. Hg.): 6.18
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.028 | 2 psig: 0.040 | 3 psig: 0.048 | 4 psig: 0.056 | 5 psig: 0.063 | 6 psig: 0.069 | 7 psig: 0.074 | 8 psig: 0.079 | 9 psig: 0.084 | 10 psig: 0.089 | 15 psig: 0.108 | 20 psig: 0.125 | 30 psig: 0.153 | 40 psig: 0.177 | 50 psig: 0.198 | 60 psig: 0.217 | 70 psig: 0.234 | 80 psig: 0.250 | 90 psig: 0.266 | 100 psig: 0.280
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.106 | 2 psig (13.8 kPag): 0.150 | 3 psig (20.7 kPag): 0.184 | 4 psig (27.6 kPag): 0.212 | 5 psig (34.5 kPag): 0.237 | 6 psig (41.4 kPag): 0.260 | 7 psig (48.3 kPag): 0.280 | 8 psig (55.2 kPag): 0.300 | 9 psig (62.1 kPag): 0.318 | 10 psig (69 kPag): 0.335 | 15 psig (103.4 kPag): 0.411 | 20 psig (137.9 kPag): 0.474 | 30 psig (206.9 kPag): 0.581 | 40 psig (275.8 kPag): 0.67 | 50 psig (344.8 kPag): 0.749 | 60 psig (413.7 kPag): 0.821 | 70 psig (482.7 kPag): 0.887 | 80 psig (551.6 kPag): 0.948 | 90 psig (620.6 kPag): 1.006 | 100 psig (689.5 kPag): 1.060
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/4" OD Tube Push-Lock
Specifications Cv
0.028
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
35
Specifications Screened
None
Specifications Seal Material
Buna-N
