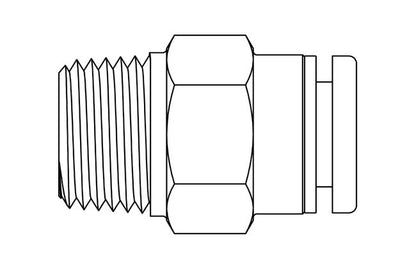

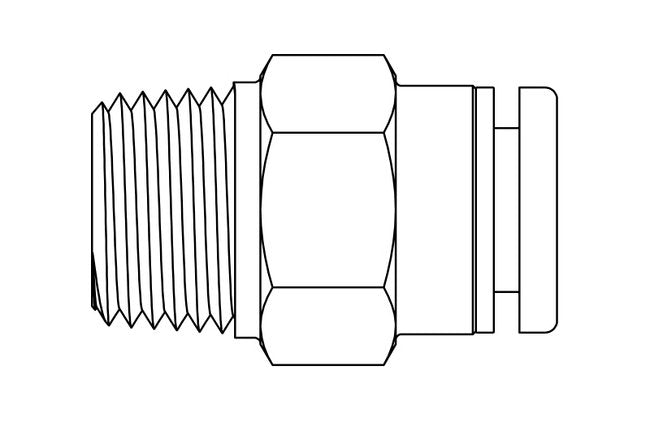

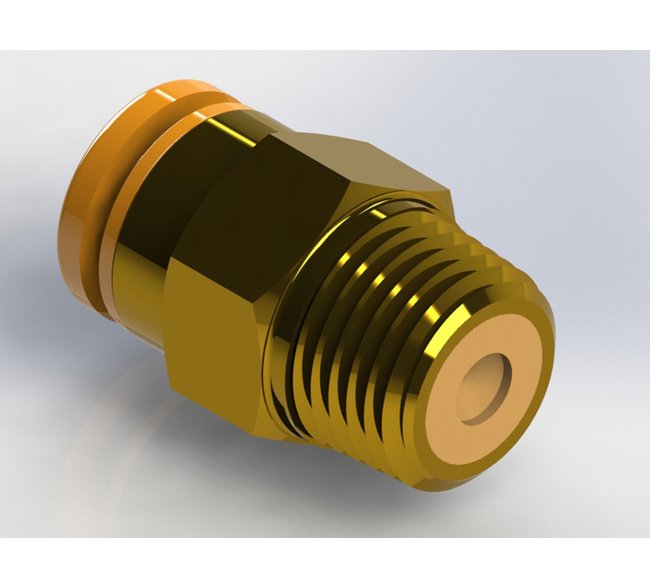

Precision Metal Orifices - Push-On Tube Adapters, 1/8" NPT x Tube
Precision Metal Orifices - Push-On Tube Adapters, 1/8" NPT x Tube
SKU:PRE-b83fa7
Enhance fluid control with Precision Metal Orifices. Brass/Plastic, secure connections, precise flow control. Meets industry standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Precision Metal Orifices - Push-On Tube Adapters, 1/8" NPT x Tube
$24.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - Push-On Tube Adapters, 1/8" NPT x Tube
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

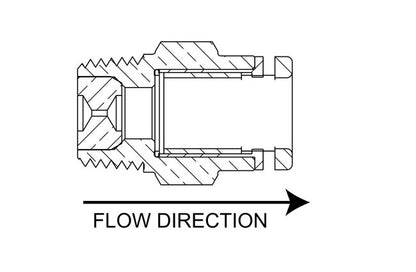

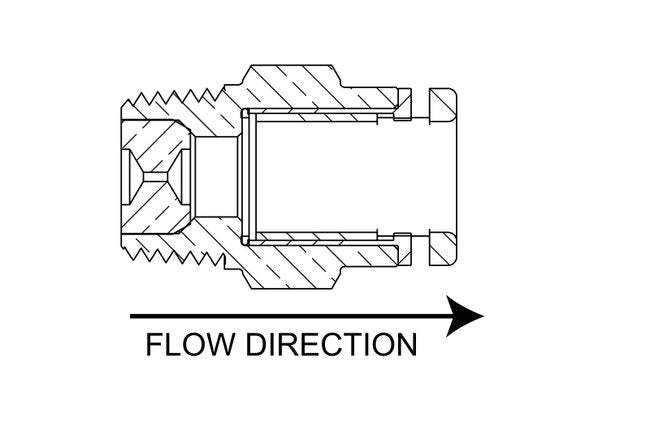

Enhance your fluid control system with our Precision Metal Orifices - Push-On Tube Adapters. Made of durable brass/plastic with a Buna-N seal, these adapters offer a secure connection. With a CV of 0.014 and a maximum operating pressure of 140 psig, they deliver precise flow control. Ideal for air and water applications, these adapters meet stringent industry standards for reliability and performance.
Product Specifications
Dimensions Orifice Diameter
0.025 in
Dimensions Total Length
0.89 in
Dimensions Width Across Flats Hex
5/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 3.54 | 5 psig: 8.12 | 10 psig: 11.8 | 15 psig: 14.7 | 20 psig: 17.3 | 25 psig: 19.9 | 30 psig: 22.5 | 40 psig: 27.5 | 50 psig: 32.6 | 60 psig: 37.5 | 70 psig: 42.6 | 80 psig: 47.7 | 90 psig: 52.8 | 100 psig: 58.1
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 1.67 | 5 psig (34.5 kPag): 3.83 | 10 psig (69.0 kPag): 5.55 | 15 psig (103.4 kPag): 6.95 | 20 psig (137.9 kPag): 8.15 | 25 psig (172.4 kPag): 9.38 | 30 psig (206.9 kPag): 10.6 | 40 psig (275.8 kPag): 13.0 | 50 psig (344.8 kPag): 15.4 | 60 psig (413.7 kPag): 17.7 | 70 psig (482.7 kPag): 20.1 | 80 psig (551.6 kPag): 22.5 | 90 psig (620.6 kPag): 24.9 | 100 psig (689.5 kPag): 27.4
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 7.08 | 20 In. Hg.: 7.08 | 30 In. Hg.: 7.08
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 3.34 | 20 In. Hg. (508 Mm. Hg.): 3.34 | 30 In. Hg. (762 Mm. Hg.): 3.34
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 5.25 | 10 In. Hg.: 6.63
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 2.48 | 10 In. Hg. (254 Mm. Hg.): 3.13
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.014 | 2 psig: 0.020 | 3 psig: 0.024 | 4 psig: 0.028 | 5 psig: 0.031 | 6 psig: 0.034 | 7 psig: 0.037 | 8 psig: 0.040 | 9 psig: 0.042 | 10 psig: 0.044 | 15 psig: 0.054 | 20 psig: 0.063 | 30 psig: 0.077 | 40 psig: 0.089 | 50 psig: 0.099 | 60 psig: 0.108 | 70 psig: 0.117 | 80 psig: 0.125 | 90 psig: 0.133 | 100 psig: 0.140
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.053 | 2 psig (13.8 kPag): 0.075 | 3 psig (20.7 kPag): 0.092 | 4 psig (27.6 kPag): 0.106 | 5 psig (34.5 kPag): 0.119 | 6 psig (41.4 kPag): 0.119 | 7 psig (48.3 kPag): 0.140 | 8 psig (55.2 kPag): 0.150 | 9 psig (62.1 kPag): 0.159 | 10 psig (69 kPag): 0.168 | 15 psig (103.4 kPag): 0.205 | 20 psig (137.9 kPag): 0.237 | 30 psig (206.9 kPag): 0.290 | 40 psig (275.8 kPag): 0.335 | 50 psig (344.8 kPag): 0.375 | 60 psig (413.7 kPag): 0.411 | 70 psig (482.7 kPag): 0.443 | 80 psig (551.6 kPag): 0.474 | 90 psig (620.6 kPag): 0.503 | 100 psig (689.5 kPag): 0.530
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/4" OD Tube Push-Lock
Specifications Cv
0.014
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
25
Specifications Screened
None
Specifications Seal Material
Buna-N
