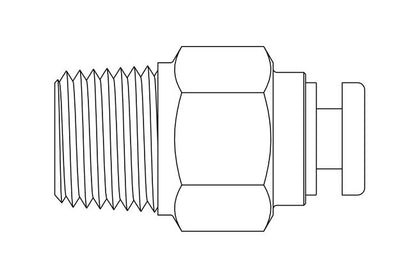

Precision Metal Orifices - Push-On Tube Adapters 1/8" NPT x Tube
Precision Metal Orifices - Push-On Tube Adapters 1/8" NPT x Tube
SKU:PRE-28be21
Get precise flow control with our Brass/Plastic Precision Metal Orifice Adapters, designed for durability and efficiency.
Regular price
$32.99
Regular price
Sale price
$32.99
Unit price
per
Initiate Order
Precision Metal Orifices - Push-On Tube Adapters 1/8" NPT x Tube
$32.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - Push-On Tube Adapters 1/8" NPT x Tube
$32.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

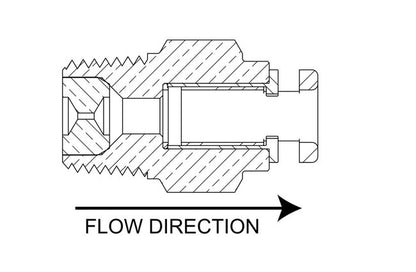

The Precision Metal Orifices - Push-On Tube Adapters 1/8" NPT x Tube are expertly crafted for precise control and reliable performance. Constructed with high-quality Brass/Plastic material and Buna-N seal, these adapters ensure durability and leak-free operation. With a CV of 0.0028 and a maximum operating pressure of 140 psig, they guarantee efficient flow control. Measuring 0.011" in orifice diameter and 0.87" in total length, these adapters provide accurate results for various applications. Trusted for their quality and performance, these adapters are ideal for meeting the stringent demands of institutional buyers, including government agencies and industrial facilities.
Product Specifications
Dimensions Orifice Diameter
0.011 in
Dimensions Total Length
0.87 in
Dimensions Width Across Flats Hex
7/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 0.653 | 5 psig: 1.51 | 10 psig: 2.14 | 15 psig: 2.67 | 20 psig: 3.16 | 25 psig: 3.62 | 30 psig: 4.09 | 40 psig: 5.02 | 50 psig: 5.93 | 60 psig: 6.84 | 70 psig: 7.76 | 80 psig: 8.67 | 90 psig: 9.56 | 100 psig: 10.5
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.308 | 5 psig (34.5 kPag): 0.71 | 10 psig (69.0 kPag): 1.01 | 15 psig (103.4 kPag): 1.26 | 20 psig (137.9 kPag): 1.49 | 25 psig (172.4 kPag): 1.71 | 30 psig (206.9 kPag): 1.93 | 40 psig (275.8 kPag): 2.37 | 50 psig (344.8 kPag): 2.80 | 60 psig (413.7 kPag): 3.23 | 70 psig (482.7 kPag): 3.66 | 80 psig (551.6 kPag): 4.09 | 90 psig (620.6 kPag): 4.51 | 100 psig (689.5 kPag): 4.94
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 1.30 | 20 In. Hg.: 1.30 | 30 In. Hg.: 1.30
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 0.614 | 20 In. Hg. (508 Mm. Hg.): 0.614 | 30 In. Hg. (762 Mm. Hg.): 0.614
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 0.953 | 10 In. Hg.: 1.20
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.450 | 10 In. Hg. (254 Mm. Hg.): 0.564
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0028 | 2 psig: 0.0040 | 3 psig: 0.0048 | 4 psig: 0.0056 | 5 psig: 0.0063 | 6 psig: 0.0069 | 7 psig: 0.0074 | 8 psig: 0.0079 | 9 psig: 0.0084 | 10 psig: 0.0089 | 15 psig: 0.0108 | 20 psig: 0.0125 | 30 psig: 0.0153 | 40 psig: 0.0177 | 50 psig: 0.0198 | 60 psig: 0.0217 | 70 psig: 0.0234 | 80 psig: 0.0250 | 90 psig: 0.0266 | 100 psig: 0.0280
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0106 | 2 psig (13.8 kPag): 0.0150 | 3 psig (20.7 kPag): 0.0184 | 4 psig (27.6 kPag): 0.0212 | 5 psig (34.5 kPag): 0.0237 | 6 psig (41.4 kPag): 0.0237 | 7 psig (48.3 kPag): 0.0280 | 8 psig (55.2 kPag): 0.0300 | 9 psig (62.1 kPag): 0.0318 | 10 psig (69 kPag): 0.0335 | 15 psig (103.4 kPag): 0.0411 | 20 psig (137.9 kPag): 0.0474 | 30 psig (206.9 kPag): 0.0581 | 40 psig (275.8 kPag): 0.0670 | 50 psig (344.8 kPag): 0.0749 | 60 psig (413.7 kPag): 0.0821 | 70 psig (482.7 kPag): 0.0887 | 80 psig (551.6 kPag): 0.0948 | 90 psig (620.6 kPag): 0.1006 | 100 psig (689.5 kPag): 0.1060
Specifications Connection A
1/8" NPT Male
Specifications Connection B
5/32" OD Tube Push-Lock
Specifications Cv
0.0028
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
11
Specifications Screened
None
Specifications Seal Material
Buna-N
