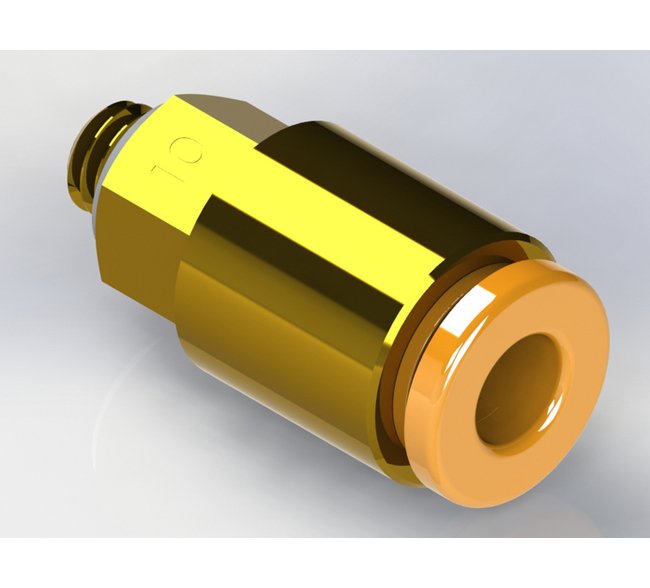

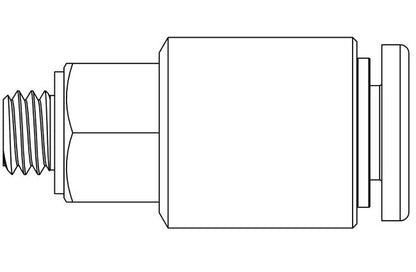

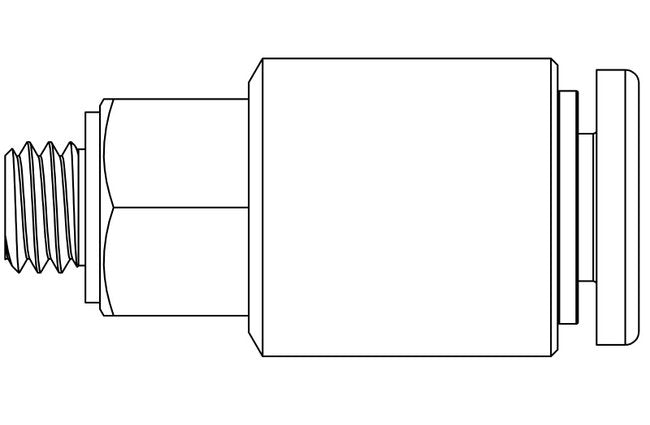

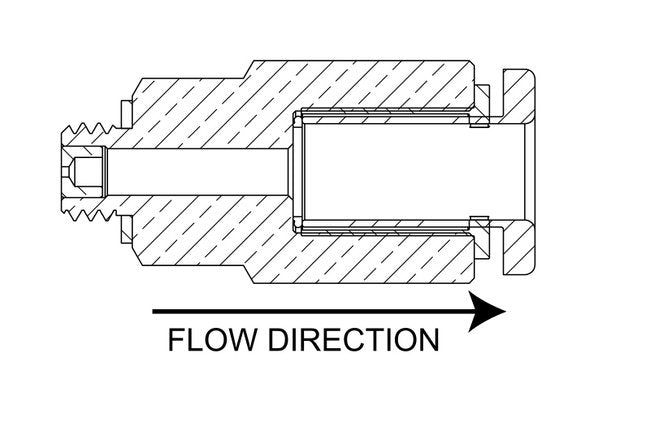

Enhance your fluid control systems with these Precision Metal Orifices - Push-On Tube Adapters. Made of durable brass/plastic with Buna-N seals, they offer precise orifice sizing, a CV of 0.028, and can handle a maximum operating pressure of 140 psig. With standard and vacuum flow data along with water flow rates, these adapters ensure efficient performance. Perfect for industrial applications requiring reliable and accurate fluid control.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Orifice Diameter
0.035 in
Dimensions Total Length
0.95 in
Dimensions Width Across Flats Hex
5/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 7.37 | 5 psig: 16.3 | 10 psig: 22.5 | 15 psig: 27.8 | 20 psig: 32.4 | 25 psig: 37.5 | 30 psig: 42.4 | 40 psig: 52.5 | 50 psig: 62.5 | 60 psig: 72.7 | 70 psig: 83.1 | 80 psig: 93.0 | 90 psig: 106 | 100 psig: 114
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 3.48 | 5 psig (34.5 kPag): 7.67 | 10 psig (69.0 kPag): 10.6 | 15 psig (103.4 kPag): 13.1 | 20 psig (137.9 kPag): 15.3 | 25 psig (172.4 kPag): 17.7 | 30 psig (206.9 kPag): 20 | 40 psig (275.8 kPag): 24.8 | 50 psig (344.8 kPag): 29.5 | 60 psig (413.7 kPag): 34.3 | 70 psig (482.7 kPag): 39.2 | 80 psig (551.6 kPag): 44 | 90 psig (620.6 kPag): 50 | 100 psig (689.5 kPag): 53.9
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 13.8 | 20 In. Hg.: 13.8 | 30 In. Hg.: 13.8
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 6.5 | 20 In. Hg. (508 Mm. Hg.): 6.5 | 30 In. Hg. (762 Mm. Hg.): 6.5
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 10.4 | 10 In. Hg.: 13.1
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 4.92 | 10 In. Hg. (254 Mm. Hg.): 6.18
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.028 | 2 psig: 0.040 | 3 psig: 0.048 | 4 psig: 0.056 | 5 psig: 0.063 | 6 psig: 0.069 | 7 psig: 0.074 | 8 psig: 0.079 | 9 psig: 0.084 | 10 psig: 0.089 | 15 psig: 0.108 | 20 psig: 0.125 | 30 psig: 0.153 | 40 psig: 0.177 | 50 psig: 0.198 | 60 psig: 0.217 | 70 psig: 0.234 | 80 psig: 0.250 | 90 psig: 0.266 | 100 psig: 0.280
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.106 | 2 psig (13.8 kPag): 0.150 | 3 psig (20.7 kPag): 0.184 | 4 psig (27.6 kPag): 0.212 | 5 psig (34.5 kPag): 0.237 | 6 psig (41.4 kPag): 0.260 | 7 psig (48.3 kPag): 0.280 | 8 psig (55.2 kPag): 0.300 | 9 psig (62.1 kPag): 0.318 | 10 psig (69 kPag): 0.335 | 15 psig (103.4 kPag): 0.411 | 20 psig (137.9 kPag): 0.474 | 30 psig (206.9 kPag): 0.581 | 40 psig (275.8 kPag): 0.67 | 50 psig (344.8 kPag): 0.749 | 60 psig (413.7 kPag): 0.821 | 70 psig (482.7 kPag): 0.887 | 80 psig (551.6 kPag): 0.948 | 90 psig (620.6 kPag): 1.006 | 100 psig (689.5 kPag): 1.060
Specifications Connection A
10-32 UNF Male
Specifications Connection B
3/16" OD Tube Push-Lock
Specifications Cv
0.028
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
35
Specifications Screened
None
Specifications Seal Material
Buna-N
