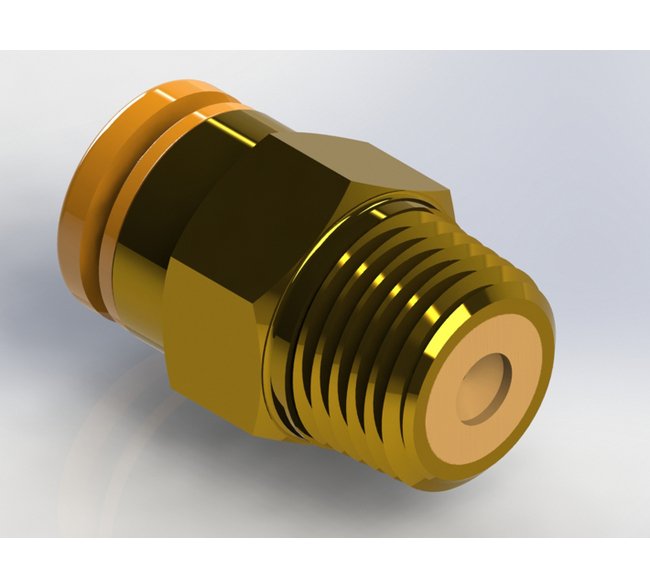

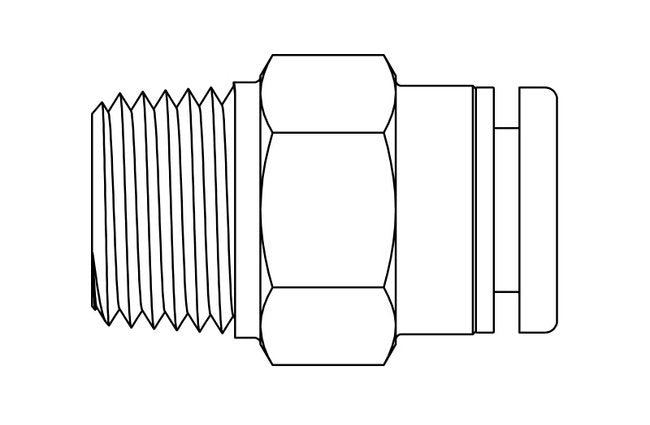

Upgrade your fluid control systems with our Precision Metal Orifices - Push-On Tube Adapters. Made of high-quality Brass/Plastic, these adapters feature a 0.052" Orifice Diameter, offering precise flow control with a CV of 0.059. With a maximum operating pressure of 140 psig, these adapters excel in air and water flow applications. Their 1/8" NPT Male and 1/4" OD Tube Push-Lock connections ensure secure fittings. Experience reliable performance that meets stringent compliance standards for institutional buyers.

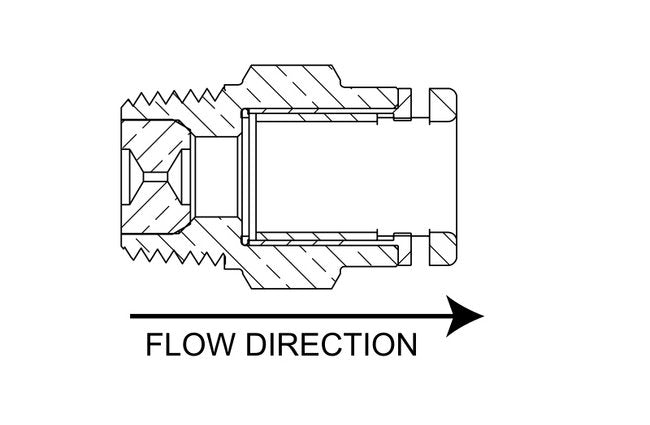

Product Specifications
Dimensions Orifice Diameter
0.052 in
Dimensions Total Length
0.89 in
Dimensions Width Across Flats Hex
5/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 17.00 | 5 psig: 37.3 | 10 psig: 51.9 | 15 psig: 62.9 | 20 psig: 74.2 | 25 psig: 85.4 | 30 psig: 96.6 | 40 psig: 119 | 50 psig: 142 | 60 psig: 165 | 70 psig: 187 | 80 psig: 210 | 90 psig: 231 | 100 psig: 254
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 8.04 | 5 psig (34.5 kPag): 17.6 | 10 psig (69.0 kPag): 24.5 | 15 psig (103.4 kPag): 29.7 | 20 psig (137.9 kPag): 35 | 25 psig (172.4 kPag): 40.3 | 30 psig (206.9 kPag): 45.6 | 40 psig (275.8 kPag): 56.3 | 50 psig (344.8 kPag): 66.9 | 60 psig (413.7 kPag): 77.7 | 70 psig (482.7 kPag): 88.4 | 80 psig (551.6 kPag): 99.1 | 90 psig (620.6 kPag): 109 | 100 psig (689.5 kPag): 120
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 30.5 | 20 In. Hg.: 30.5 | 30 In. Hg.: 30.5
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 14.4 | 20 In. Hg. (508 Mm. Hg.): 14.4 | 30 In. Hg. (762 Mm. Hg.): 14.4
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 23.9 | 10 In. Hg.: 29.4
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 11.3 | 10 In. Hg. (254 Mm. Hg.): 13.9
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.059 | 2 psig: 0.083 | 3 psig: 0.102 | 4 psig: 0.118 | 5 psig: 0.132 | 6 psig: 0.145 | 7 psig: 0.156 | 8 psig: 0.167 | 9 psig: 0.177 | 10 psig: 0.187 | 15 psig: 0.229 | 20 psig: 0.264 | 30 psig: 0.323 | 40 psig: 0.373 | 50 psig: 0.417 | 60 psig: 0.457 | 70 psig: 0.494 | 80 psig: 0.528 | 90 psig: 0.560 | 100 psig: 0.590
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.223 | 2 psig (13.8 kPag): 0.316 | 3 psig (20.7 kPag): 0.387 | 4 psig (27.6 kPag): 0.447 | 5 psig (34.5 kPag): 0.499 | 6 psig (41.4 kPag): 0.547 | 7 psig (48.3 kPag): 0.591 | 8 psig (55.2 kPag): 0.632 | 9 psig (62.1 kPag): 0.67 | 10 psig (69 kPag): 0.706 | 15 psig (103.4 kPag): 0.865 | 20 psig (137.9 kPag): 0.999 | 30 psig (206.9 kPag): 1.223 | 40 psig (275.8 kPag): 1.413 | 50 psig (344.8 kPag): 1.579 | 60 psig (413.7 kPag): 1.730 | 70 psig (482.7 kPag): 1.869 | 80 psig (551.6 kPag): 1.998 | 90 psig (620.6 kPag): 2.119 | 100 psig (689.5 kPag): 2.233
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/4" OD Tube Push-Lock
Specifications Cv
0.059
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
52
Specifications Screened
None
Specifications Seal Material
Buna-N
