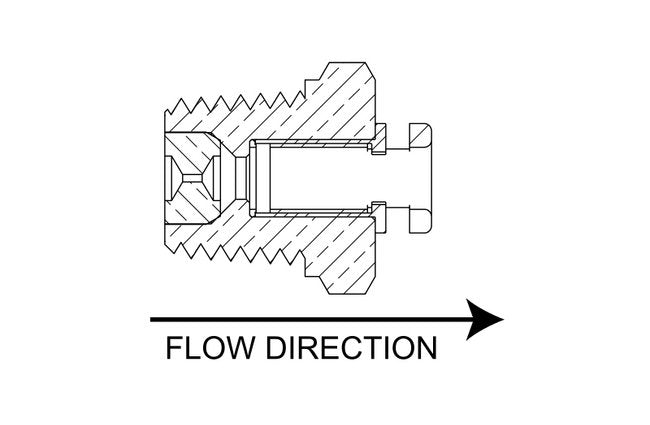

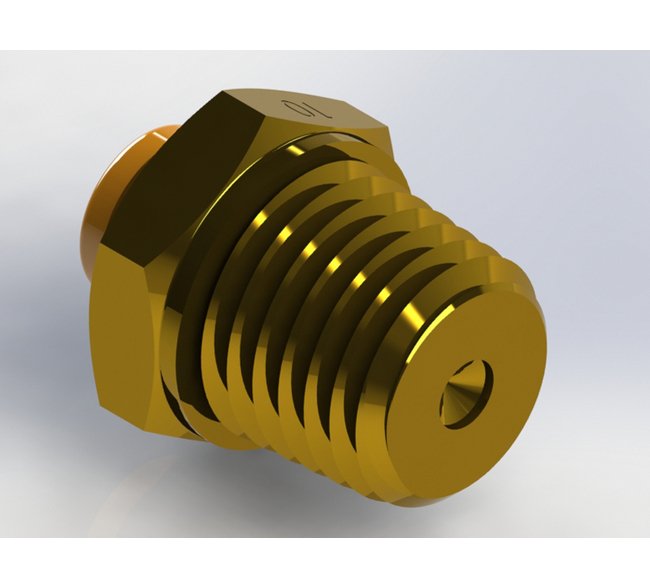

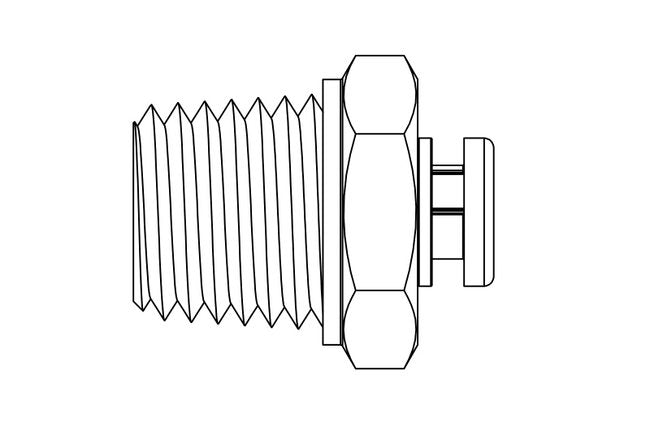

The Precision Metal Orifices - Push-On Tube Adapters in 1/4" NPT x Tube configuration are expertly crafted with brass/plastic material and feature a Buna-N seal. With a maximum operating pressure of 140 psig, these adapters ensure precision flow control with a nominal orifice size of 4 and a CV of 0.00035. Designed for efficiency, reliability, and durability, these adapters deliver optimal air and water flow rates, meeting the stringent requirements of institutional buyers.
Product Specifications
Dimensions Orifice Diameter
0.0039 in
Dimensions Total Length
0.77 in
Dimensions Width Across Flats Hex
5/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 0.075 | 5 psig: 0.18 | 10 psig: 0.25 | 15 psig: 0.30 | 20 psig: 0.40 | 25 psig: 0.47 | 30 psig: 0.53 | 40 psig: 0.64 | 50 psig: 0.76 | 60 psig: 0.89 | 70 psig: 1.02 | 80 psig: 1.14 | 90 psig: 1.27 | 100 psig: 1.40
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.035 | 5 psig (34.5 kPag): 0.09 | 10 psig (69.0 kPag): 0.12 | 15 psig (103.4 kPag): 0.16 | 20 psig (137.9 kPag): 0.19 | 25 psig (172.4 kPag): 0.22 | 30 psig (206.9 kPag): 0.25 | 40 psig (275.8 kPag): 0.30 | 50 psig (344.8 kPag): 0.36 | 60 psig (413.7 kPag): 0.42 | 70 psig (482.7 kPag): 0.48 | 80 psig (551.6 kPag): 0.54 | 90 psig (620.6 kPag): 0.60 | 100 psig (689.5 kPag): 0.66
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 0.158 | 20 In. Hg.: 0.158 | 30 In. Hg.: 0.158
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 0.075 | 20 In. Hg. (508 Mm. Hg.): 0.075 | 30 In. Hg. (762 Mm. Hg.): 0.075
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 0.113 | 10 In. Hg.: 0.145
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.053 | 10 In. Hg. (254 Mm. Hg.): 0.069
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.00035 | 2 psig: 0.00049 | 3 psig: 0.00061 | 4 psig: 0.00070 | 5 psig: 0.00078 | 6 psig: 0.00086 | 7 psig: 0.00093 | 8 psig: 0.00099 | 9 psig: 0.00105 | 10 psig: 0.00111 | 15 psig: 0.00136 | 20 psig: 0.00157 | 30 psig: 0.00192 | 40 psig: 0.00221 | 50 psig: 0.00247 | 60 psig: 0.00271 | 70 psig: 0.00293 | 80 psig: 0.00313 | 90 psig: 0.00332 | 100 psig: 0.00350
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0013 | 2 psig (13.8 kPag): 0.0019 | 3 psig (20.7 kPag): 0.0023 | 4 psig (27.6 kPag): 0.0026 | 5 psig (34.5 kPag): 0.0030 | 6 psig (41.4 kPag): 0.0030 | 7 psig (48.3 kPag): 0.0035 | 8 psig (55.2 kPag): 0.0037 | 9 psig (62.1 kPag): 0.0040 | 10 psig (69 kPag): 0.0042 | 15 psig (103.4 kPag): 0.0051 | 20 psig (137.9 kPag): 0.0059 | 30 psig (206.9 kPag): 0.0073 | 40 psig (275.8 kPag): 0.0084 | 50 psig (344.8 kPag): 0.0094 | 60 psig (413.7 kPag): 0.0103 | 70 psig (482.7 kPag): 0.0111 | 80 psig (551.6 kPag): 0.0119 | 90 psig (620.6 kPag): 0.0126 | 100 psig (689.5 kPag): 0.0132
Specifications Connection A
1/4" NPT Male
Specifications Connection B
5/32" OD Tube Push-Lock
Specifications Cv
0.00035
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
4
Specifications Screened
None
Specifications Seal Material
Buna-N
