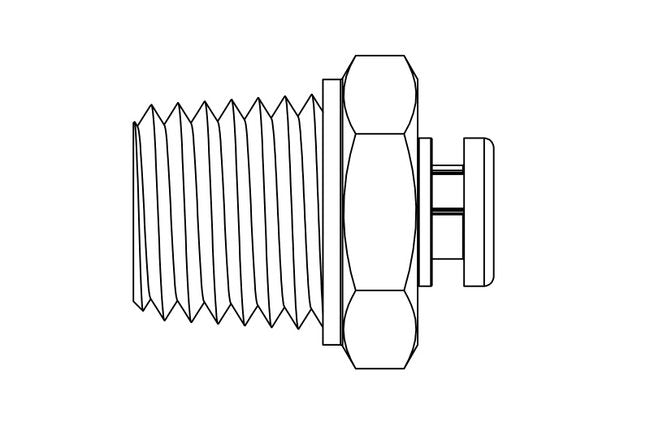

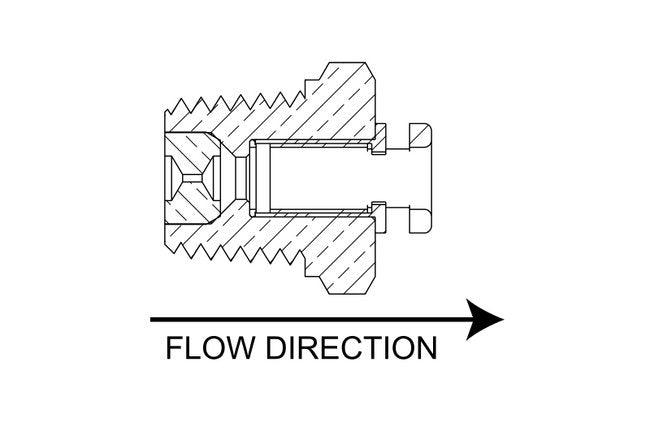

The Precision Metal Orifices - Push-On Tube Adapters are expertly crafted with Brass/Plastic material and a Buna-N seal, ensuring durability and reliability. With a Nominal Orifice Size of 0.031 inches and a Maximum Operating Pressure of 140 psig, these adapters guarantee precise flow control. Their 1/4" NPT Male to 5/32" OD Tube Push-Lock connections enable seamless integration. Ideal for both air and water applications, these adapters provide exceptional performance and accuracy, meeting stringent government procurement standards.
Product Specifications
Dimensions Orifice Diameter
0.031 in
Dimensions Total Length
0.77 in
Dimensions Width Across Flats Hex
5/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 5.62 | 5 psig: 12.4 | 10 psig: 18.3 | 15 psig: 22.5 | 20 psig: 26.3 | 25 psig: 30.1 | 30 psig: 33.7 | 40 psig: 41.1 | 50 psig: 48.5 | 60 psig: 55.9 | 70 psig: 63.6 | 80 psig: 71.2 | 90 psig: 78.8 | 100 psig: 86.7
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 2.65 | 5 psig (34.5 kPag): 5.86 | 10 psig (69.0 kPag): 8.63 | 15 psig (103.4 kPag): 10.6 | 20 psig (137.9 kPag): 12.4 | 25 psig (172.4 kPag): 14.2 | 30 psig (206.9 kPag): 15.9 | 40 psig (275.8 kPag): 19.4 | 50 psig (344.8 kPag): 22.9 | 60 psig (413.7 kPag): 26.4 | 70 psig (482.7 kPag): 30.0 | 80 psig (551.6 kPag): 33.6 | 90 psig (620.6 kPag): 37.2 | 100 psig (689.5 kPag): 40.9
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 10.7 | 20 In. Hg.: 10.7 | 30 In. Hg.: 10.7
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 5.05 | 20 In. Hg. (508 Mm. Hg.): 5.05 | 30 In. Hg. (762 Mm. Hg.): 5.05
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 8.01 | 10 In. Hg.: 10.1
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 3.78 | 10 In. Hg. (254 Mm. Hg.): 4.77
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.022 | 2 psig: 0.031 | 3 psig: 0.038 | 4 psig: 0.044 | 5 psig: 0.049 | 6 psig: 0.054 | 7 psig: 0.058 | 8 psig: 0.062 | 9 psig: 0.066 | 10 psig: 0.070 | 15 psig: 0.085 | 20 psig: 0.098 | 30 psig: 0.120 | 40 psig: 0.139 | 50 psig: 0.156 | 60 psig: 0.170 | 70 psig: 0.184 | 80 psig: 0.197 | 90 psig: 0.209 | 100 psig: 0.220
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.083 | 2 psig (13.8 kPag): 0.118 | 3 psig (20.7 kPag): 0.144 | 4 psig (27.6 kPag): 0.167 | 5 psig (34.5 kPag): 0.186 | 6 psig (41.4 kPag): 0.186 | 7 psig (48.3 kPag): 0.220 | 8 psig (55.2 kPag): 0.236 | 9 psig (62.1 kPag): 0.250 | 10 psig (69 kPag): 0.263 | 15 psig (103.4 kPag): 0.323 | 20 psig (137.9 kPag): 0.372 | 30 psig (206.9 kPag): 0.456 | 40 psig (275.8 kPag): 0.527 | 50 psig (344.8 kPag): 0.589 | 60 psig (413.7 kPag): 0.645 | 70 psig (482.7 kPag): 0.697 | 80 psig (551.6 kPag): 0.745 | 90 psig (620.6 kPag): 0.790 | 100 psig (689.5 kPag): 0.833
Specifications Connection A
1/4" NPT Male
Specifications Connection B
5/32" OD Tube Push-Lock
Specifications Cv
0.022
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
31
Specifications Screened
None
Specifications Seal Material
Buna-N
