Precision Metal Orifices - Push-On Tube Adapters
Precision Metal Orifices - Push-On Tube Adapters
SKU:PRE-b03b9f
High-precision Metal Orifices for seamless tube connections. Brass construction with Buna-N seal, ideal for precise air and water flow control.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Precision Metal Orifices - Push-On Tube Adapters
$24.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - Push-On Tube Adapters
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

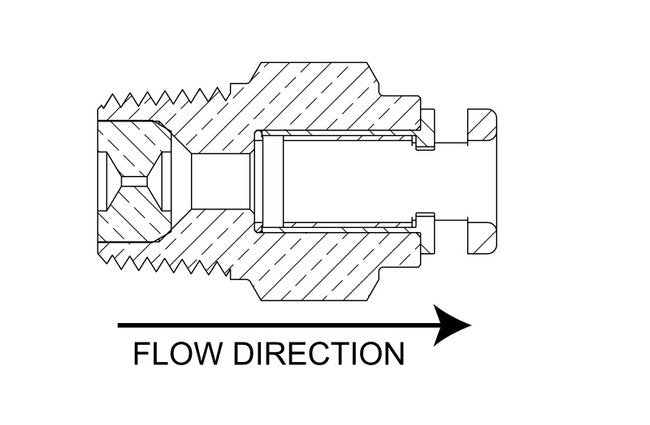

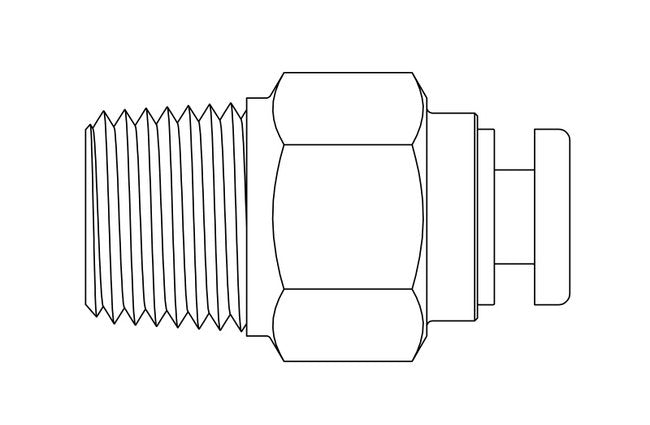

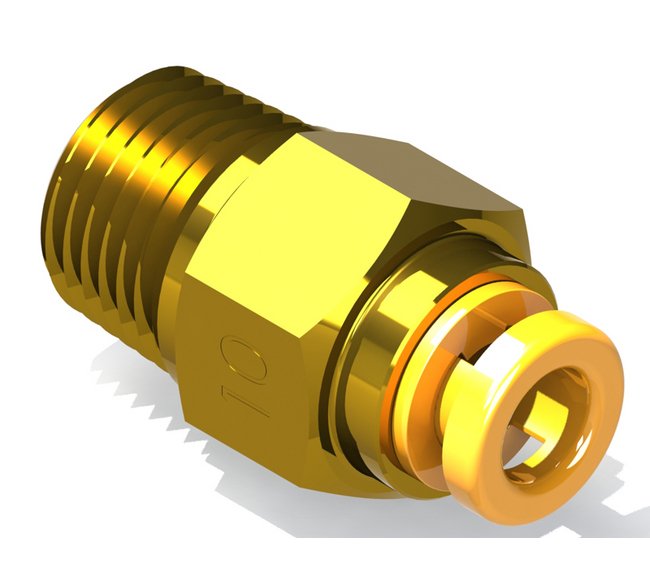

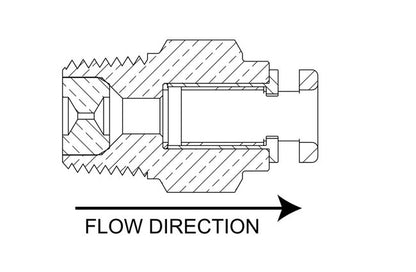

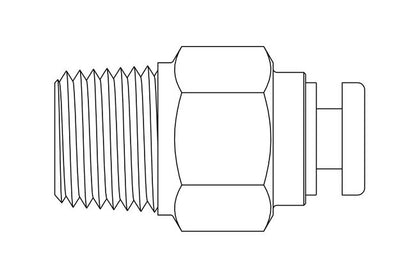

The Precision Metal Orifices - Push-On Tube Adapters feature precise engineering with a 1/8" NPT Male connection and 5/32" OD Tube Push-Lock connection. These adapters are crafted from durable Brass and Buna-N materials, ensuring reliable performance with a CV of 0.041 and a maximum operating pressure of 140 psig. With detailed flow data provided for air and water, these adapters offer exceptional accuracy and efficiency. Perfect for industries requiring high precision and adherence to strict standards.
Product Specifications
Dimensions Orifice Diameter
0.043 in
Dimensions Total Length
0.87 in
Dimensions Width Across Flats Hex
7/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 11.40 | 5 psig: 25.6 | 10 psig: 35.6 | 15 psig: 43.2 | 20 psig: 50.9 | 25 psig: 58.5 | 30 psig: 66.3 | 40 psig: 82.0 | 50 psig: 97.5 | 60 psig: 113 | 70 psig: 129 | 80 psig: 145 | 90 psig: 161 | 100 psig: 177
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 5.36 | 5 psig (34.5 kPag): 12.1 | 10 psig (69.0 kPag): 16.8 | 15 psig (103.4 kPag): 20.4 | 20 psig (137.9 kPag): 24 | 25 psig (172.4 kPag): 27.6 | 30 psig (206.9 kPag): 31.3 | 40 psig (275.8 kPag): 38.7 | 50 psig (344.8 kPag): 46 | 60 psig (413.7 kPag): 53.5 | 70 psig (482.7 kPag): 61 | 80 psig (551.6 kPag): 68.5 | 90 psig (620.6 kPag): 76 | 100 psig (689.5 kPag): 83.5
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 21.1 | 20 In. Hg.: 21.1 | 30 In. Hg.: 21.1
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 10 | 20 In. Hg. (508 Mm. Hg.): 10 | 30 In. Hg. (762 Mm. Hg.): 10
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 16.3 | 10 In. Hg.: 20.3
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 7.67 | 10 In. Hg. (254 Mm. Hg.): 9.58
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.041 | 2 psig: 0.058 | 3 psig: 0.071 | 4 psig: 0.082 | 5 psig: 0.092 | 6 psig: 0.100 | 7 psig: 0.108 | 8 psig: 0.116 | 9 psig: 0.123 | 10 psig: 0.130 | 15 psig: 0.159 | 20 psig: 0.183 | 30 psig: 0.225 | 40 psig: 0.259 | 50 psig: 0.290 | 60 psig: 0.318 | 70 psig: 0.343 | 80 psig: 0.367 | 90 psig: 0.389 | 100 psig: 0.410
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.155 | 2 psig (13.8 kPag): 0.219 | 3 psig (20.7 kPag): 0.269 | 4 psig (27.6 kPag): 0.310 | 5 psig (34.5 kPag): 0.347 | 6 psig (41.4 kPag): 0.38 | 7 psig (48.3 kPag): 0.411 | 8 psig (55.2 kPag): 0.439 | 9 psig (62.1 kPag): 0.466 | 10 psig (69 kPag): 0.491 | 15 psig (103.4 kPag): 0.601 | 20 psig (137.9 kPag): 0.694 | 30 psig (206.9 kPag): 0.850 | 40 psig (275.8 kPag): 0.982 | 50 psig (344.8 kPag): 1.097 | 60 psig (413.7 kPag): 1.202 | 70 psig (482.7 kPag): 1.299 | 80 psig (551.6 kPag): 1.388 | 90 psig (620.6 kPag): 1.472 | 100 psig (689.5 kPag): 1.552
Specifications Connection A
1/8" NPT Male
Specifications Connection B
5/32" OD Tube Push-Lock
Specifications Cv
0.041
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
43
Specifications Screened
None
Specifications Seal Material
Buna-N
