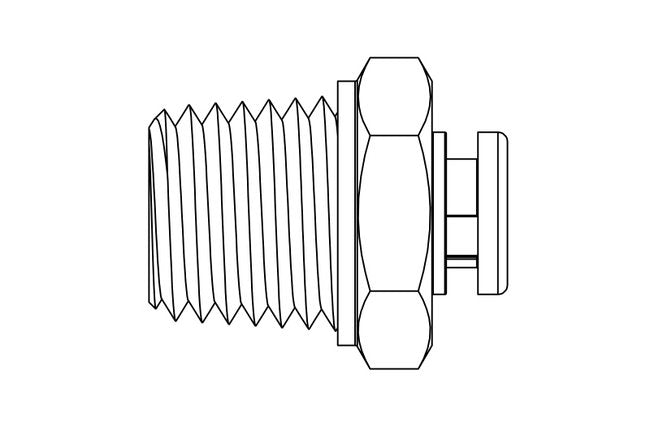

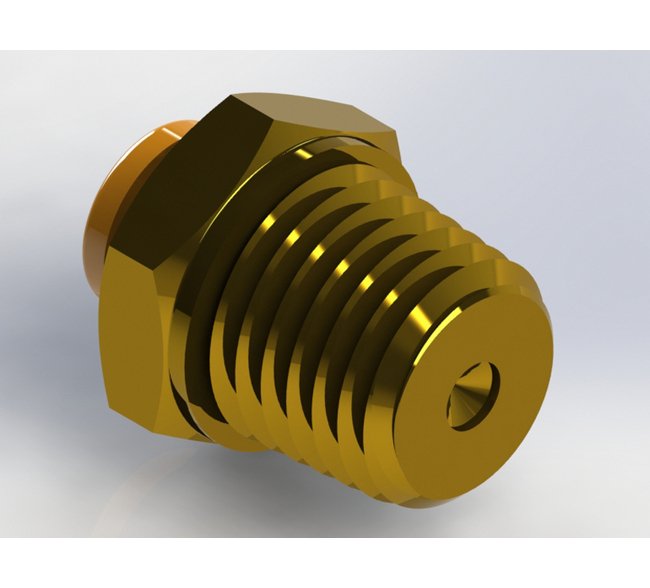

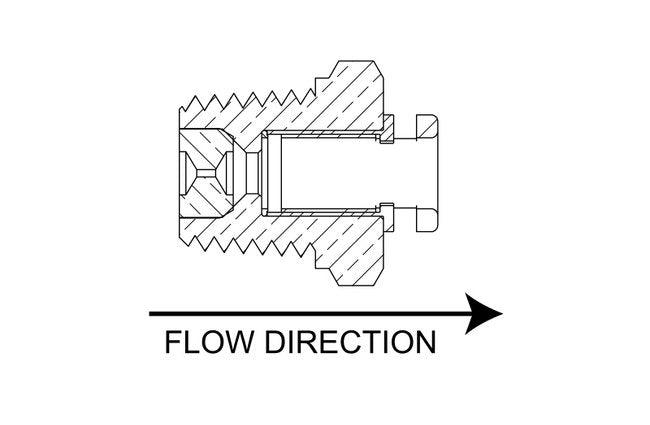

The Precision Metal Orifices Push-On Tube Adapters feature a Buna-N seal and brass/plastic construction, ensuring durability and reliability. With a nominal orifice size of 60 and a CV of 0.081, these adapters can efficiently handle a maximum operating pressure of 140 psig. The 1/4" NPT Male connection on Connection A and 3/16" OD Tube Push-Lock on Connection B make installation easy. Designed for precision, these adapters provide consistent air and water flow rates, meeting the stringent requirements of institutional procurement standards.
Product Specifications
Dimensions Orifice Diameter
0.06 in
Dimensions Total Length
0.830 in
Dimensions Width Across Flats Hex
5/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 23.7 | 5 psig: 50.6 | 10 psig: 68.2 | 15 psig: 82.6 | 20 psig: 97.3 | 25 psig: 112 | 30 psig: 126 | 40 psig: 156 | 50 psig: 185 | 60 psig: 214 | 70 psig: 244 | 80 psig: 273 | 90 psig: 303 | 100 psig: 331
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 11.2 | 5 psig (34.5 kPag): 23.9 | 10 psig (69.0 kPag): 32.2 | 15 psig (103.4 kPag): 39 | 20 psig (137.9 kPag): 45.9 | 25 psig (172.4 kPag): 52.8 | 30 psig (206.9 kPag): 59.7 | 40 psig (275.8 kPag): 73.6 | 50 psig (344.8 kPag): 87.4 | 60 psig (413.7 kPag): 101 | 70 psig (482.7 kPag): 115 | 80 psig (551.6 kPag): 129 | 90 psig (620.6 kPag): 143 | 100 psig (689.5 kPag): 156
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 39.4 | 20 In. Hg.: 39.4 | 30 In. Hg.: 39.4
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 18.6 | 20 In. Hg. (508 Mm. Hg.): 18.6 | 30 In. Hg. (762 Mm. Hg.): 18.6
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 31.4 | 10 In. Hg.: 38.6
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 14.8 | 10 In. Hg. (254 Mm. Hg.): 18.2
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.081 | 2 psig: 0.115 | 3 psig: 0.140 | 4 psig: 0.162 | 5 psig: 0.181 | 6 psig: 0.198 | 7 psig: 0.214 | 8 psig: 0.229 | 9 psig: 0.243 | 10 psig: 0.256 | 15 psig: 0.314 | 20 psig: 0.362 | 30 psig: 0.444 | 40 psig: 0.512 | 50 psig: 0.573 | 60 psig: 0.627 | 70 psig: 0.678 | 80 psig: 0.724 | 90 psig: 0.768 | 100 psig: 0.810
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.307 | 2 psig (13.8 kPag): 0.434 | 3 psig (20.7 kPag): 0.531 | 4 psig (27.6 kPag): 0.613 | 5 psig (34.5 kPag): 0.686 | 6 psig (41.4 kPag): 0.751 | 7 psig (48.3 kPag): 0.811 | 8 psig (55.2 kPag): 0.867 | 9 psig (62.1 kPag): 0.920 | 10 psig (69 kPag): 0.970 | 15 psig (103.4 kPag): 1.188 | 20 psig (137.9 kPag): 1.371 | 30 psig (206.9 kPag): 1.679 | 40 psig (275.8 kPag): 1.939 | 50 psig (344.8 kPag): 2.168 | 60 psig (413.7 kPag): 2.375 | 70 psig (482.7 kPag): 2.565 | 80 psig (551.6 kPag): 2.742 | 90 psig (620.6 kPag): 2.909 | 100 psig (689.5 kPag): 3.066
Specifications Connection A
1/4" NPT Male
Specifications Connection B
3/16" OD Tube Push-Lock
Specifications Cv
0.081
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
60
Specifications Screened
None
Specifications Seal Material
Buna-N
