Precision Metal Orifices - Push-On Tube Adapters
$29.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - Push-On Tube Adapters
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

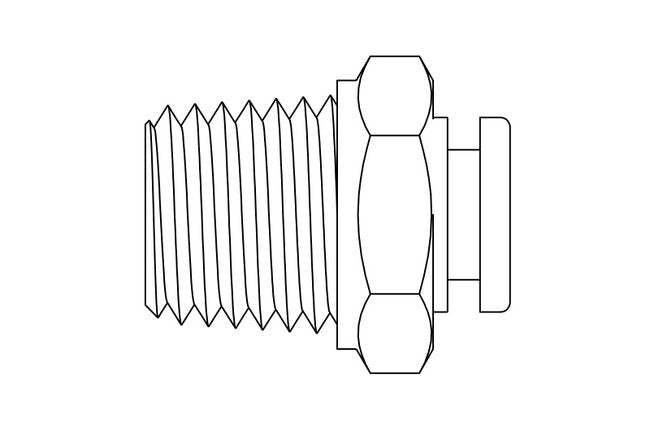

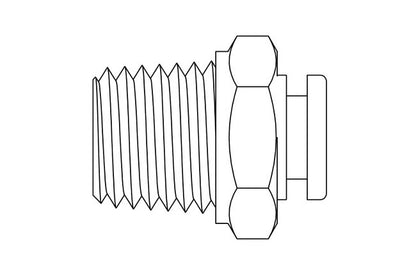

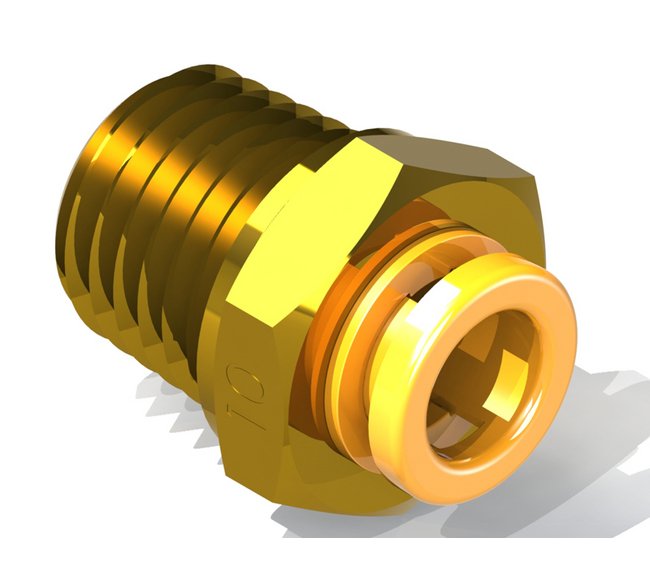

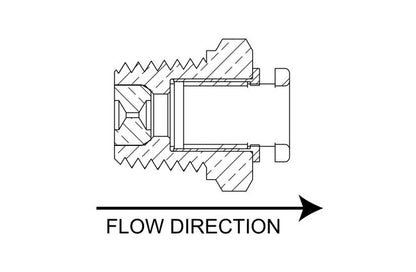

The Precision Metal Orifices - Push-On Tube Adapters in 1/4" NPT x Tube configuration offer exceptional performance for industrial fluid systems. Constructed with Brass/Plastic materials and featuring a Seal Material of Buna-N, these adapters provide a secure connection with a CV of 0.038. With a Maximum Operating Pressure of 140 psig, these adapters ensure reliable and efficient flow control. The precise dimensions of 0.041 in Orifice Diameter and 5/8 in Width Across Flats make them ideal for various applications. Trusted for their exceptional air and water flow rates, these adapters meet stringent industry standards for quality and performance.
Product Specifications
Dimensions Orifice Diameter
0.041 in
Dimensions Total Length
0.91 in
Dimensions Width Across Flats Hex
5/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 9.90 | 5 psig: 22.5 | 10 psig: 31.4 | 15 psig: 38.6 | 20 psig: 45.3 | 25 psig: 52.3 | 30 psig: 59.3 | 40 psig: 73.3 | 50 psig: 87.5 | 60 psig: 102 | 70 psig: 117 | 80 psig: 131 | 90 psig: 146 | 100 psig: 164
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 4.67 | 5 psig (34.5 kPag): 10.6 | 10 psig (69.0 kPag): 14.8 | 15 psig (103.4 kPag): 18.2 | 20 psig (137.9 kPag): 21.4 | 25 psig (172.4 kPag): 24.7 | 30 psig (206.9 kPag): 28 | 40 psig (275.8 kPag): 34.6 | 50 psig (344.8 kPag): 41.3 | 60 psig (413.7 kPag): 48.1 | 70 psig (482.7 kPag): 55 | 80 psig (551.6 kPag): 61.9 | 90 psig (620.6 kPag): 68.9 | 100 psig (689.5 kPag): 77.3
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 18.8 | 20 In. Hg.: 18.8 | 30 In. Hg.: 18.8
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 8.87 | 20 In. Hg. (508 Mm. Hg.): 8.87 | 30 In. Hg. (762 Mm. Hg.): 8.87
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 14.5 | 10 In. Hg.: 18.0
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 6.82 | 10 In. Hg. (254 Mm. Hg.): 8.5
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.038 | 2 psig: 0.054 | 3 psig: 0.066 | 4 psig: 0.076 | 5 psig: 0.085 | 6 psig: 0.093 | 7 psig: 0.101 | 8 psig: 0.107 | 9 psig: 0.114 | 10 psig: 0.120 | 15 psig: 0.147 | 20 psig: 0.170 | 30 psig: 0.208 | 40 psig: 0.240 | 50 psig: 0.269 | 60 psig: 0.294 | 70 psig: 0.318 | 80 psig: 0.340 | 90 psig: 0.360 | 100 psig: 0.380
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.144 | 2 psig (13.8 kPag): 0.203 | 3 psig (20.7 kPag): 0.249 | 4 psig (27.6 kPag): 0.288 | 5 psig (34.5 kPag): 0.322 | 6 psig (41.4 kPag): 0.352 | 7 psig (48.3 kPag): 0.381 | 8 psig (55.2 kPag): 0.407 | 9 psig (62.1 kPag): 0.432 | 10 psig (69 kPag): 0.455 | 15 psig (103.4 kPag): 0.557 | 20 psig (137.9 kPag): 0.643 | 30 psig (206.9 kPag): 0.788 | 40 psig (275.8 kPag): 0.910 | 50 psig (344.8 kPag): 1.017 | 60 psig (413.7 kPag): 1.114 | 70 psig (482.7 kPag): 1.203 | 80 psig (551.6 kPag): 1.287 | 90 psig (620.6 kPag): 1.365 | 100 psig (689.5 kPag): 1.438
Specifications Connection A
1/4" NPT Male
Specifications Connection B
1/4" OD Tube Push-Lock
Specifications Cv
0.038
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
41
Specifications Screened
None
Specifications Seal Material
Buna-N
