Precision Metal Orifices - Push-On Tube Adapters
Precision Metal Orifices - Push-On Tube Adapters
SKU:PRE-c60ea0
Premium Precision Metal Orifices for precise fluid control, ideal for government and industrial use.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Metal Orifices - Push-On Tube Adapters
$29.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - Push-On Tube Adapters
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

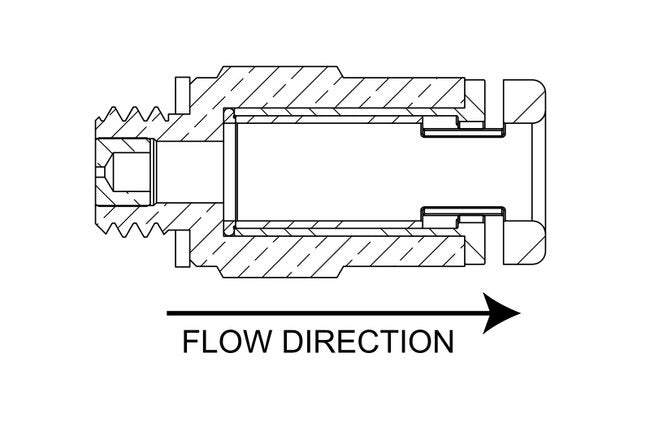

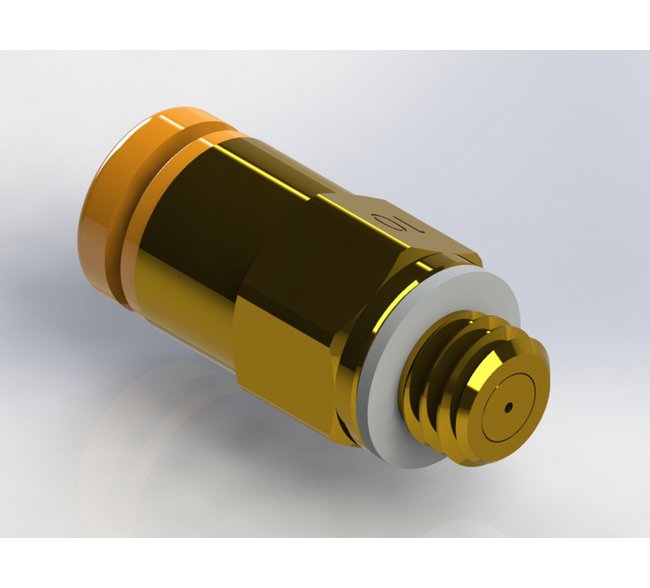

The Precision Metal Orifices - Push-On Tube Adapters in 10-32 UNF x Tube size offer unparalleled accuracy and reliability for fluid control applications. Made of durable Brass/Plastic, these adapters feature a Buna-N seal and precise dimensions for seamless integration. With a CV of 0.00086 and a maximum operating pressure of 140 psig, they ensure efficient performance. Tested air and water flow data demonstrate consistent results across various pressures. This product is designed to meet stringent institutional procurement standards, making it the ideal choice for government and industry applications.
Product Specifications

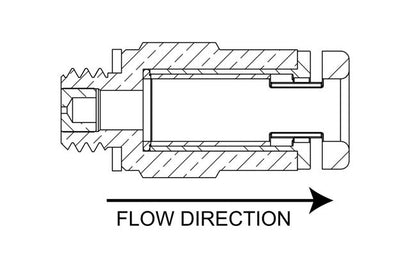

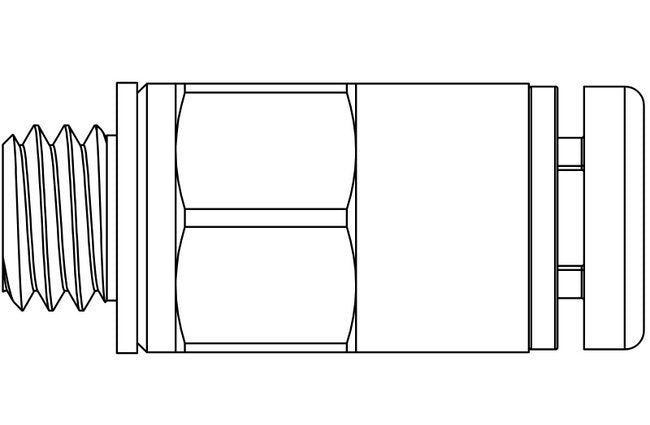

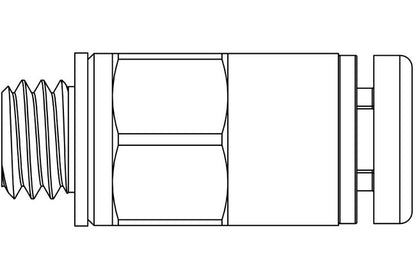

Dimensions Orifice Diameter
0.0059 in
Dimensions Total Length
0.66 in
Dimensions Width Across Flats Hex
9/32 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 0.182 | 5 psig: 0.45 | 10 psig: 0.65 | 15 psig: 0.82 | 20 psig: 0.97 | 25 psig: 1.12 | 30 psig: 1.26 | 40 psig: 1.56 | 50 psig: 1.86 | 60 psig: 2.16 | 70 psig: 2.46 | 80 psig: 2.75 | 90 psig: 3.05 | 100 psig: 3.35
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.086 | 5 psig (34.5 kPag): 0.21 | 10 psig (69.0 kPag): 0.31 | 15 psig (103.4 kPag): 0.39 | 20 psig (137.9 kPag): 0.46 | 25 psig (172.4 kPag): 0.53 | 30 psig (206.9 kPag): 0.60 | 40 psig (275.8 kPag): 0.74 | 50 psig (344.8 kPag): 0.88 | 60 psig (413.7 kPag): 1.02 | 70 psig (482.7 kPag): 1.16 | 80 psig (551.6 kPag): 1.30 | 90 psig (620.6 kPag): 1.44 | 100 psig (689.5 kPag): 1.58
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 0.392 | 20 In. Hg.: 0.392 | 30 In. Hg.: 0.392
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 0.185 | 20 In. Hg. (508 Mm. Hg.): 0.185 | 30 In. Hg. (762 Mm. Hg.): 0.185
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 0.273 | 10 In. Hg.: 0.356
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.129 | 10 In. Hg. (254 Mm. Hg.): 0.168
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0009 | 2 psig: 0.0012 | 3 psig: 0.0015 | 4 psig: 0.0017 | 5 psig: 0.0019 | 6 psig: 0.0021 | 7 psig: 0.0023 | 8 psig: 0.0024 | 9 psig: 0.0026 | 10 psig: 0.0027 | 15 psig: 0.0033 | 20 psig: 0.0038 | 30 psig: 0.0047 | 40 psig: 0.0054 | 50 psig: 0.0061 | 60 psig: 0.0067 | 70 psig: 0.0072 | 80 psig: 0.0077 | 90 psig: 0.0082 | 100 psig: 0.0086
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0033 | 2 psig (13.8 kPag): 0.0046 | 3 psig (20.7 kPag): 0.0056 | 4 psig (27.6 kPag): 0.0065 | 5 psig (34.5 kPag): 0.0073 | 6 psig (41.4 kPag): 0.0073 | 7 psig (48.3 kPag): 0.0086 | 8 psig (55.2 kPag): 0.0092 | 9 psig (62.1 kPag): 0.0098 | 10 psig (69 kPag): 0.0103 | 15 psig (103.4 kPag): 0.0126 | 20 psig (137.9 kPag): 0.0146 | 30 psig (206.9 kPag): 0.0178 | 40 psig (275.8 kPag): 0.0206 | 50 psig (344.8 kPag): 0.0230 | 60 psig (413.7 kPag): 0.0252 | 70 psig (482.7 kPag): 0.0272 | 80 psig (551.6 kPag): 0.0291 | 90 psig (620.6 kPag): 0.0309 | 100 psig (689.5 kPag): 0.0326
Specifications Connection A
10-32 UNF Male
Specifications Connection B
1/8" OD Tube Push-Lock
Specifications Cv
0.00086
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
6
Specifications Screened
None
Specifications Seal Material
Buna-N
