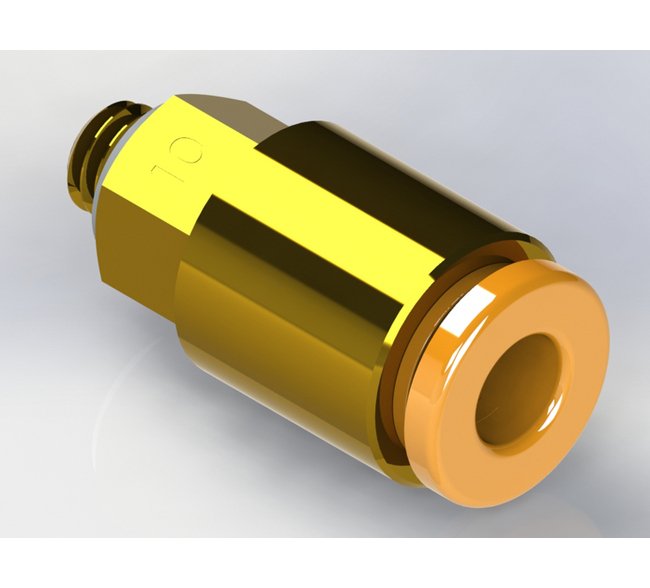

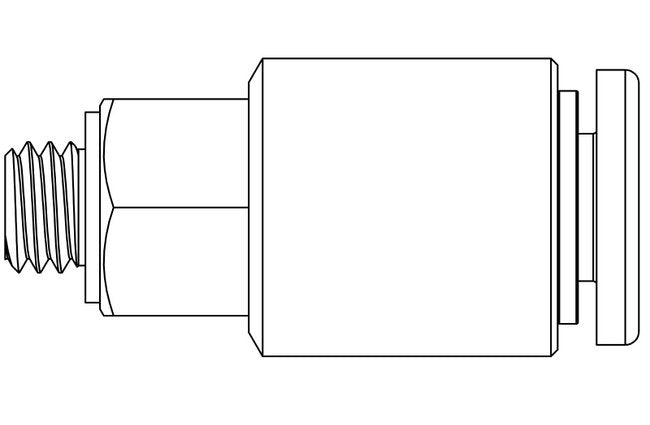

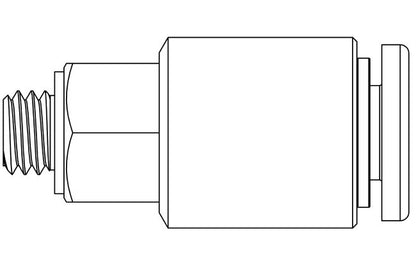

Precision Metal Orifices Push-On Tube Adapters
Precision Metal Orifices Push-On Tube Adapters
SKU:PRE-427f38
Get precise control with our durable Precision Metal Orifices Push-On Tube Adapters. Ideal for government and institutional procurement.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Precision Metal Orifices Push-On Tube Adapters
$24.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices Push-On Tube Adapters
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Metal Orifices Push-On Tube Adapters in 10-32 UNF x Tube configuration offer precise control and durability. Made of robust Brass/Plastic with Buna-N seals, these adapters ensure a secure connection and efficient operation. With a CV of 0.017 and a maximum operating pressure of 140 psig, they deliver consistent performance. The adapters meet stringent industry standards, making them ideal for government and institutional procurement needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Orifice Diameter
0.027 in
Dimensions Total Length
0.95 in
Dimensions Width Across Flats Hex
5/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 4.13 | 5 psig: 9.41 | 10 psig: 13.6 | 15 psig: 16.8 | 20 psig: 19.7 | 25 psig: 22.7 | 30 psig: 25.4 | 40 psig: 31.1 | 50 psig: 36.7 | 60 psig: 42.4 | 70 psig: 48.1 | 80 psig: 53.6 | 90 psig: 59.3 | 100 psig: 65.3
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 1.95 | 5 psig (34.5 kPag): 4.44 | 10 psig (69.0 kPag): 6.43 | 15 psig (103.4 kPag): 7.95 | 20 psig (137.9 kPag): 9.28 | 25 psig (172.4 kPag): 10.7 | 30 psig (206.9 kPag): 12.0 | 40 psig (275.8 kPag): 14.7 | 50 psig (344.8 kPag): 17.3 | 60 psig (413.7 kPag): 20.0 | 70 psig (482.7 kPag): 22.7 | 80 psig (551.6 kPag): 25.3 | 90 psig (620.6 kPag): 28.0 | 100 psig (689.5 kPag): 30.8
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 8.01 | 20 In. Hg.: 8.01 | 30 In. Hg.: 8.01
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 3.78 | 20 In. Hg. (508 Mm. Hg.): 3.78 | 30 In. Hg. (762 Mm. Hg.): 3.78
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 6 | 10 In. Hg.: 7.59
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 2.83 | 10 In. Hg. (254 Mm. Hg.): 3.58
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.017 | 2 psig: 0.024 | 3 psig: 0.029 | 4 psig: 0.034 | 5 psig: 0.038 | 6 psig: 0.042 | 7 psig: 0.045 | 8 psig: 0.048 | 9 psig: 0.051 | 10 psig: 0.054 | 15 psig: 0.066 | 20 psig: 0.076 | 30 psig: 0.093 | 40 psig: 0.108 | 50 psig: 0.120 | 60 psig: 0.132 | 70 psig: 0.142 | 80 psig: 0.152 | 90 psig: 0.161 | 100 psig: 0.170
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.064 | 2 psig (13.8 kPag): 0.091 | 3 psig (20.7 kPag): 0.111 | 4 psig (27.6 kPag): 0.129 | 5 psig (34.5 kPag): 0.144 | 6 psig (41.4 kPag): 0.144 | 7 psig (48.3 kPag): 0.170 | 8 psig (55.2 kPag): 0.182 | 9 psig (62.1 kPag): 0.193 | 10 psig (69 kPag): 0.203 | 15 psig (103.4 kPag): 0.249 | 20 psig (137.9 kPag): 0.288 | 30 psig (206.9 kPag): 0.352 | 40 psig (275.8 kPag): 0.407 | 50 psig (344.8 kPag): 0.455 | 60 psig (413.7 kPag): 0.498 | 70 psig (482.7 kPag): 0.538 | 80 psig (551.6 kPag): 0.576 | 90 psig (620.6 kPag): 0.610 | 100 psig (689.5 kPag): 0.644
Specifications Connection A
10-32 UNF Male
Specifications Connection B
3/16" OD Tube Push-Lock
Specifications Cv
0.017
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
27
Specifications Screened
None
Specifications Seal Material
Buna-N
