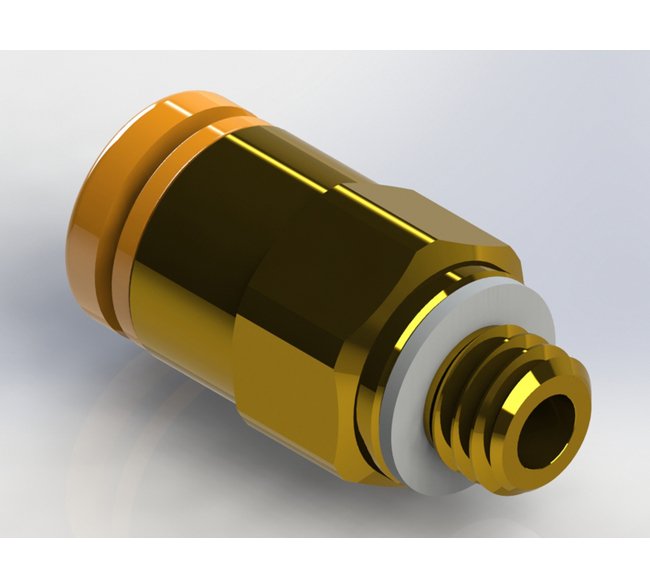

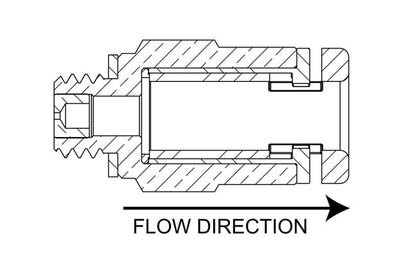

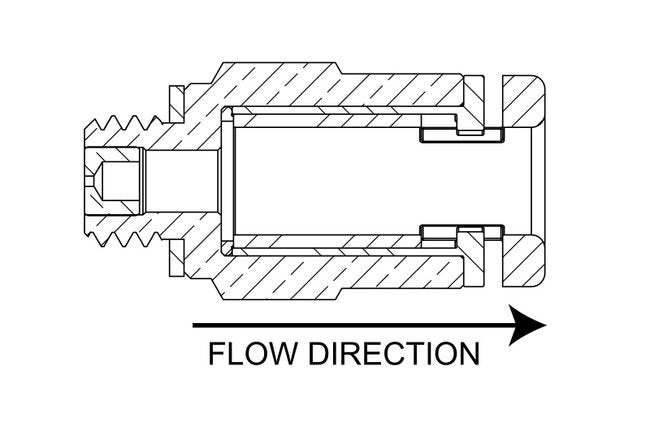

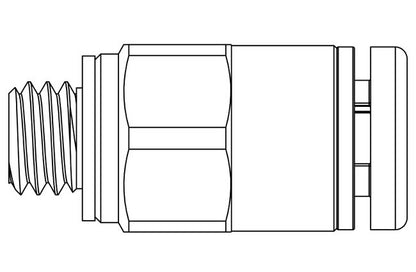

Precision Metal Orifices - Push-On Tube Adapters
Precision Metal Orifices - Push-On Tube Adapters
SKU:PRE-794638
Reliable Precision Metal Orifices for fluid control applications, featuring Brass/Plastic construction and Buna-N seals.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Metal Orifices - Push-On Tube Adapters
$29.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - Push-On Tube Adapters
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Metal Orifices - Push-On Tube Adapters in 10-32 UNF x Tube size offer unwavering reliability and precision in fluid control applications. Made of durable Brass/Plastic with Buna-N seals, these adapters ensure a maximum operating pressure of 140 psig, meeting stringent industry standards. With a CV of 0.025 and a range of air and water flow options detailed in the specifications, this product is designed to deliver consistent performance and accuracy in diverse settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Orifice Diameter
0.033 in
Dimensions Total Length
0.67 in
Dimensions Width Across Flats Hex
5/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 6.42 | 5 psig: 14.4 | 10 psig: 21.1 | 15 psig: 26.1 | 20 psig: 30.3 | 25 psig: 34.5 | 30 psig: 39.0 | 40 psig: 47.7 | 50 psig: 56.4 | 60 psig: 65.0 | 70 psig: 73.9 | 80 psig: 82.6 | 90 psig: 91.5 | 100 psig: 101
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 3.03 | 5 psig (34.5 kPag): 6.80 | 10 psig (69.0 kPag): 9.98 | 15 psig (103.4 kPag): 12.3 | 20 psig (137.9 kPag): 14.3 | 25 psig (172.4 kPag): 16.3 | 30 psig (206.9 kPag): 18.4 | 40 psig (275.8 kPag): 22.5 | 50 psig (344.8 kPag): 26.6 | 60 psig (413.7 kPag): 30.7 | 70 psig (482.7 kPag): 34.9 | 80 psig (551.6 kPag): 39.0 | 90 psig (620.6 kPag): 43.2 | 100 psig (689.5 kPag): 47.5
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 12.1 | 20 In. Hg.: 12.1 | 30 In. Hg.: 12.1
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 5.72 | 20 In. Hg. (508 Mm. Hg.): 5.72 | 30 In. Hg. (762 Mm. Hg.): 5.72
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 9.15 | 10 In. Hg.: 11.5
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 4.32 | 10 In. Hg. (254 Mm. Hg.): 5.43
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.025 | 2 psig: 0.035 | 3 psig: 0.043 | 4 psig: 0.050 | 5 psig: 0.056 | 6 psig: 0.061 | 7 psig: 0.066 | 8 psig: 0.071 | 9 psig: 0.075 | 10 psig: 0.079 | 15 psig: 0.097 | 20 psig: 0.112 | 30 psig: 0.137 | 40 psig: 0.158 | 50 psig: 0.177 | 60 psig: 0.194 | 70 psig: 0.209 | 80 psig: 0.224 | 90 psig: 0.237 | 100 psig: 0.250
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.095 | 2 psig (13.8 kPag): 0.134 | 3 psig (20.7 kPag): 0.164 | 4 psig (27.6 kPag): 0.189 | 5 psig (34.5 kPag): 0.212 | 6 psig (41.4 kPag): 0.212 | 7 psig (48.3 kPag): 0.250 | 8 psig (55.2 kPag): 0.268 | 9 psig (62.1 kPag): 0.284 | 10 psig (69 kPag): 0.299 | 15 psig (103.4 kPag): 0.367 | 20 psig (137.9 kPag): 0.423 | 30 psig (206.9 kPag): 0.518 | 40 psig (275.8 kPag): 0.599 | 50 psig (344.8 kPag): 0.669 | 60 psig (413.7 kPag): 0.733 | 70 psig (482.7 kPag): 0.792 | 80 psig (551.6 kPag): 0.846 | 90 psig (620.6 kPag): 0.898 | 100 psig (689.5 kPag): 0.946
Specifications Connection A
10-32 UNF Male
Specifications Connection B
5/32" OD Tube Push-Lock
Specifications Cv
0.025
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
33
Specifications Screened
None
Specifications Seal Material
Buna-N
