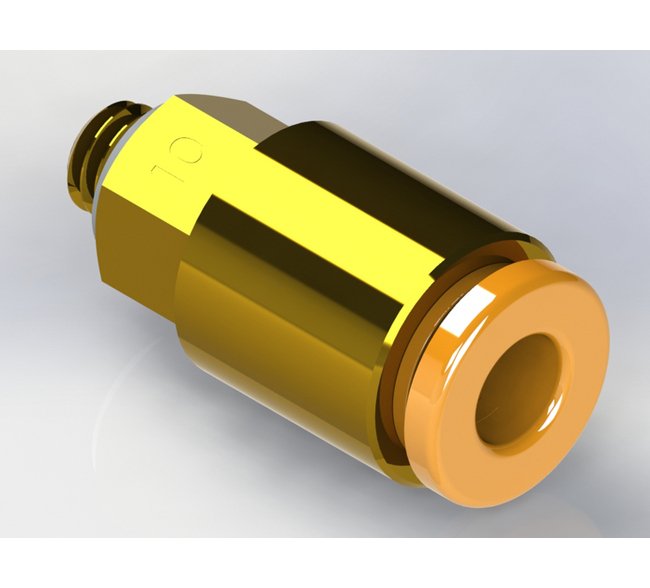

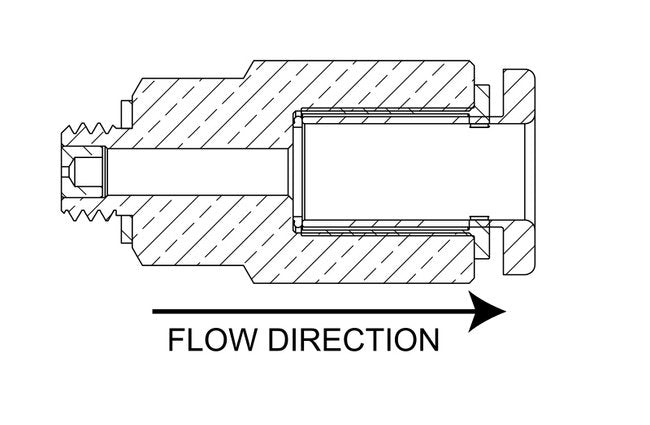

Enhance fluid control with our Precision Metal Orifices - Push-On Tube Adapters. Made of Brass/Plastic with a Buna-N seal, these adapters offer a precise Orifice Diameter of 0.0039 in. They ensure efficient air and water flow with a CV of 0.00035, handling up to 140 psig pressure. Ideal for critical applications where accuracy is paramount.
Product Specifications
Dimensions Orifice Diameter
0.0039 in
Dimensions Total Length
0.95 in
Dimensions Width Across Flats Hex
5/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 0.075 | 5 psig: 0.18 | 10 psig: 0.25 | 15 psig: 0.30 | 20 psig: 0.40 | 25 psig: 0.47 | 30 psig: 0.53 | 40 psig: 0.64 | 50 psig: 0.76 | 60 psig: 0.89 | 70 psig: 1.02 | 80 psig: 1.14 | 90 psig: 1.27 | 100 psig: 1.40
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.035 | 5 psig (34.5 kPag): 0.09 | 10 psig (69.0 kPag): 0.12 | 15 psig (103.4 kPag): 0.16 | 20 psig (137.9 kPag): 0.19 | 25 psig (172.4 kPag): 0.22 | 30 psig (206.9 kPag): 0.25 | 40 psig (275.8 kPag): 0.30 | 50 psig (344.8 kPag): 0.36 | 60 psig (413.7 kPag): 0.42 | 70 psig (482.7 kPag): 0.48 | 80 psig (551.6 kPag): 0.54 | 90 psig (620.6 kPag): 0.60 | 100 psig (689.5 kPag): 0.66
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 0.158 | 20 In. Hg.: 0.158 | 30 In. Hg.: 0.158
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 0.075 | 20 In. Hg. (508 Mm. Hg.): 0.075 | 30 In. Hg. (762 Mm. Hg.): 0.075
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 0.113 | 10 In. Hg.: 0.145
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.053 | 10 In. Hg. (254 Mm. Hg.): 0.069
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.00035 | 2 psig: 0.00049 | 3 psig: 0.00061 | 4 psig: 0.00070 | 5 psig: 0.00078 | 6 psig: 0.00086 | 7 psig: 0.00093 | 8 psig: 0.00099 | 9 psig: 0.00105 | 10 psig: 0.00111 | 15 psig: 0.00136 | 20 psig: 0.00157 | 30 psig: 0.00192 | 40 psig: 0.00221 | 50 psig: 0.00247 | 60 psig: 0.00271 | 70 psig: 0.00293 | 80 psig: 0.00313 | 90 psig: 0.00332 | 100 psig: 0.00350
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0013 | 2 psig (13.8 kPag): 0.0019 | 3 psig (20.7 kPag): 0.0023 | 4 psig (27.6 kPag): 0.0026 | 5 psig (34.5 kPag): 0.0030 | 6 psig (41.4 kPag): 0.0030 | 7 psig (48.3 kPag): 0.0035 | 8 psig (55.2 kPag): 0.0037 | 9 psig (62.1 kPag): 0.0040 | 10 psig (69 kPag): 0.0042 | 15 psig (103.4 kPag): 0.0051 | 20 psig (137.9 kPag): 0.0059 | 30 psig (206.9 kPag): 0.0073 | 40 psig (275.8 kPag): 0.0084 | 50 psig (344.8 kPag): 0.0094 | 60 psig (413.7 kPag): 0.0103 | 70 psig (482.7 kPag): 0.0111 | 80 psig (551.6 kPag): 0.0119 | 90 psig (620.6 kPag): 0.0126 | 100 psig (689.5 kPag): 0.0132
Specifications Connection A
10-32 UNF Male
Specifications Connection B
3/16" OD Tube Push-Lock
Specifications Cv
0.00035
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
4
Specifications Screened
None
Specifications Seal Material
Buna-N
