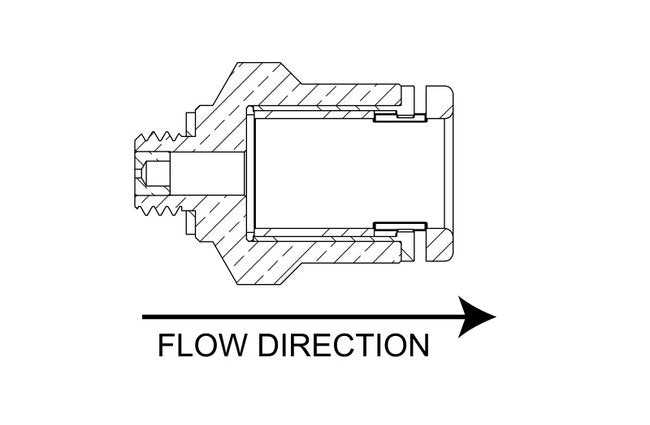

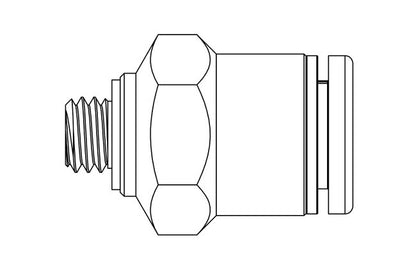

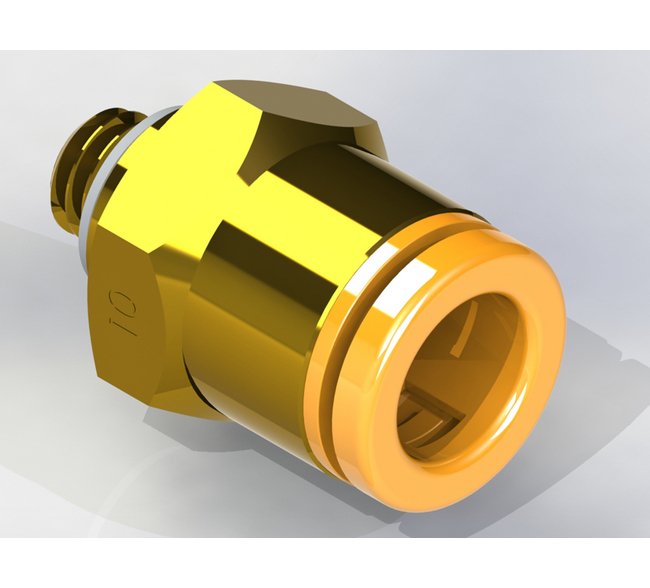

The Precision Metal Orifices - Push-On Tube Adapters are meticulously crafted for precise airflow control in industrial settings. Made of durable brass/plastic with Buna-N seals, these adapters ensure reliable performance under pressure up to 140 psig. With 10-32 UNF Male and 1/4" OD Tube Push-Lock connections, they offer versatility and ease of installation. Meeting strict industry standards, these orifices deliver consistent air and water flow rates, making them ideal for government and institutional procurement needs.
Product Specifications
Dimensions Orifice Diameter
0.032 in
Dimensions Total Length
0.73 in
Dimensions Width Across Flats Hex
7/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 6.10 | 5 psig: 13.6 | 10 psig: 19.9 | 15 psig: 24.6 | 20 psig: 28.6 | 25 psig: 32.6 | 30 psig: 36.7 | 40 psig: 44.7 | 50 psig: 53.0 | 60 psig: 61.0 | 70 psig: 69.3 | 80 psig: 77.8 | 90 psig: 86.0 | 100 psig: 94.5
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 2.88 | 5 psig (34.5 kPag): 6.42 | 10 psig (69.0 kPag): 9.40 | 15 psig (103.4 kPag): 11.6 | 20 psig (137.9 kPag): 13.5 | 25 psig (172.4 kPag): 15.4 | 30 psig (206.9 kPag): 17.3 | 40 psig (275.8 kPag): 21.1 | 50 psig (344.8 kPag): 25.0 | 60 psig (413.7 kPag): 28.8 | 70 psig (482.7 kPag): 32.7 | 80 psig (551.6 kPag): 36.7 | 90 psig (620.6 kPag): 40.6 | 100 psig (689.5 kPag): 44.6
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 11.5 | 20 In. Hg.: 11.5 | 30 In. Hg.: 11.5
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 5.45 | 20 In. Hg. (508 Mm. Hg.): 5.45 | 30 In. Hg. (762 Mm. Hg.): 5.45
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 8.73 | 10 In. Hg.: 10.9
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 4.12 | 10 In. Hg. (254 Mm. Hg.): 5.16
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.024 | 2 psig: 0.034 | 3 psig: 0.042 | 4 psig: 0.048 | 5 psig: 0.054 | 6 psig: 0.059 | 7 psig: 0.063 | 8 psig: 0.068 | 9 psig: 0.072 | 10 psig: 0.076 | 15 psig: 0.093 | 20 psig: 0.107 | 30 psig: 0.131 | 40 psig: 0.152 | 50 psig: 0.170 | 60 psig: 0.186 | 70 psig: 0.201 | 80 psig: 0.215 | 90 psig: 0.228 | 100 psig: 0.240
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.091 | 2 psig (13.8 kPag): 0.128 | 3 psig (20.7 kPag): 0.157 | 4 psig (27.6 kPag): 0.182 | 5 psig (34.5 kPag): 0.203 | 6 psig (41.4 kPag): 0.203 | 7 psig (48.3 kPag): 0.240 | 8 psig (55.2 kPag): 0.257 | 9 psig (62.1 kPag): 0.273 | 10 psig (69 kPag): 0.287 | 15 psig (103.4 kPag): 0.352 | 20 psig (137.9 kPag): 0.406 | 30 psig (206.9 kPag): 0.498 | 40 psig (275.8 kPag): 0.575 | 50 psig (344.8 kPag): 0.642 | 60 psig (413.7 kPag): 0.704 | 70 psig (482.7 kPag): 0.760 | 80 psig (551.6 kPag): 0.813 | 90 psig (620.6 kPag): 0.862 | 100 psig (689.5 kPag): 0.908
Specifications Connection A
10-32 UNF Male
Specifications Connection B
1/4" OD Tube Push-Lock
Specifications Cv
0.024
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
32
Specifications Screened
None
Specifications Seal Material
Buna-N
