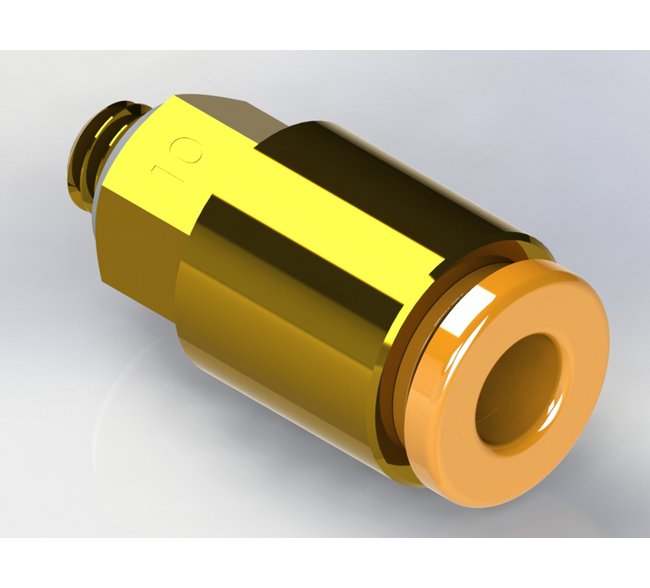

The Precision Metal Orifices - Push-On Tube Adapters are expertly crafted from Brass/Plastic, meeting strict industry standards. With an Orifice Diameter of 0.024 inches and a Maximum Operating Pressure of 140 psig, these adapters ensure precise control and reliable performance. Ideal for air and water flow applications, they offer a CV of 0.013 and feature a Buna-N seal for enhanced durability. Trusted by government agencies and institutions, these adapters meet Federal/DoD procurement standards, FAR compliance factors, and are TAA compliant, making them a reliable choice for critical projects.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Orifice Diameter
0.024 in
Dimensions Total Length
0.95 in
Dimensions Width Across Flats Hex
5/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 3.26 | 5 psig: 7.48 | 10 psig: 11.0 | 15 psig: 13.6 | 20 psig: 16.1 | 25 psig: 18.3 | 30 psig: 20.7 | 40 psig: 25.4 | 50 psig: 30.1 | 60 psig: 34.7 | 70 psig: 39.2 | 80 psig: 43.9 | 90 psig: 48.5 | 100 psig: 53.2
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 1.54 | 5 psig (34.5 kPag): 3.53 | 10 psig (69.0 kPag): 5.18 | 15 psig (103.4 kPag): 6.43 | 20 psig (137.9 kPag): 7.58 | 25 psig (172.4 kPag): 8.65 | 30 psig (206.9 kPag): 9.75 | 40 psig (275.8 kPag): 12.0 | 50 psig (344.8 kPag): 14.2 | 60 psig (413.7 kPag): 16.4 | 70 psig (482.7 kPag): 18.5 | 80 psig (551.6 kPag): 20.7 | 90 psig (620.6 kPag): 22.9 | 100 psig (689.5 kPag): 25.1
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 6.61 | 20 In. Hg.: 6.61 | 30 In. Hg.: 6.61
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 3.12 | 20 In. Hg. (508 Mm. Hg.): 3.12 | 30 In. Hg. (762 Mm. Hg.): 3.12
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 4.87 | 10 In. Hg.: 6.12
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 2.30 | 10 In. Hg. (254 Mm. Hg.): 2.89
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.013 | 2 psig: 0.018 | 3 psig: 0.023 | 4 psig: 0.026 | 5 psig: 0.029 | 6 psig: 0.032 | 7 psig: 0.034 | 8 psig: 0.037 | 9 psig: 0.039 | 10 psig: 0.041 | 15 psig: 0.050 | 20 psig: 0.058 | 30 psig: 0.071 | 40 psig: 0.082 | 50 psig: 0.092 | 60 psig: 0.101 | 70 psig: 0.109 | 80 psig: 0.116 | 90 psig: 0.123 | 100 psig: 0.130
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.049 | 2 psig (13.8 kPag): 0.070 | 3 psig (20.7 kPag): 0.085 | 4 psig (27.6 kPag): 0.098 | 5 psig (34.5 kPag): 0.110 | 6 psig (41.4 kPag): 0.110 | 7 psig (48.3 kPag): 0.130 | 8 psig (55.2 kPag): 0.139 | 9 psig (62.1 kPag): 0.148 | 10 psig (69 kPag): 0.156 | 15 psig (103.4 kPag): 0.191 | 20 psig (137.9 kPag): 0.220 | 30 psig (206.9 kPag): 0.270 | 40 psig (275.8 kPag): 0.311 | 50 psig (344.8 kPag): 0.348 | 60 psig (413.7 kPag): 0.381 | 70 psig (482.7 kPag): 0.412 | 80 psig (551.6 kPag): 0.440 | 90 psig (620.6 kPag): 0.467 | 100 psig (689.5 kPag): 0.492
Specifications Connection A
10-32 UNF Male
Specifications Connection B
3/16" OD Tube Push-Lock
Specifications Cv
0.013
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
24
Specifications Screened
None
Specifications Seal Material
Buna-N
