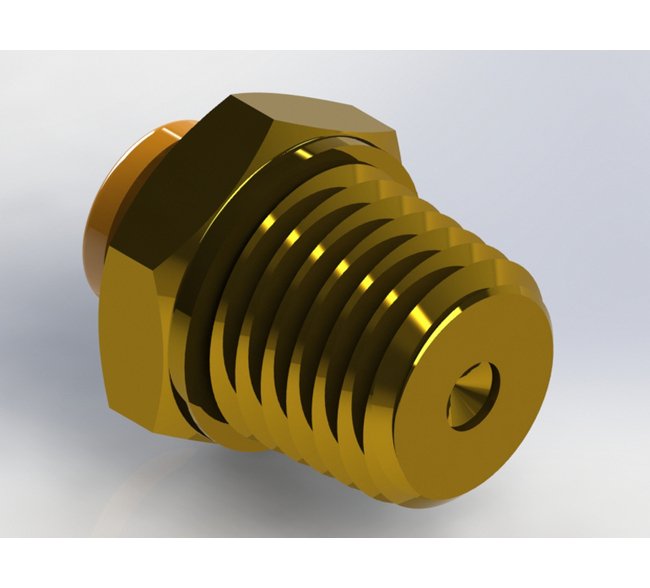

The Precision Metal Orifices Push-On Tube Adapter is a high-quality, durable solution designed for precise flow control applications. Crafted from Brass/Plastic with a Buna-N seal, it ensures excellent performance under pressure up to 140 psig. Featuring a Nominal Orifice Size of 47, this adapter offers a CV of 0.048, guaranteeing efficient air and water flow. With connections for 1/4" NPT Male and 3/16" OD Tube Push-Lock, it provides reliable and secure fittings. This product meets federal procurement standards, GSA requirements, and FAR compliance factors, making it ideal for government and institutional use.
Product Specifications
Dimensions Orifice Diameter
0.047 in
Dimensions Total Length
0.830 in
Dimensions Width Across Flats Hex
5/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 13.60 | 5 psig: 30.1 | 10 psig: 41.0 | 15 psig: 50.0 | 20 psig: 58.7 | 25 psig: 67.6 | 30 psig: 76.3 | 40 psig: 94.3 | 50 psig: 112 | 60 psig: 130 | 70 psig: 148 | 80 psig: 167 | 90 psig: 185 | 100 psig: 203
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 6.43 | 5 psig (34.5 kPag): 14.2 | 10 psig (69.0 kPag): 19.4 | 15 psig (103.4 kPag): 23.6 | 20 psig (137.9 kPag): 27.7 | 25 psig (172.4 kPag): 31.9 | 30 psig (206.9 kPag): 36 | 40 psig (275.8 kPag): 44.5 | 50 psig (344.8 kPag): 52.9 | 60 psig (413.7 kPag): 61.5 | 70 psig (482.7 kPag): 70 | 80 psig (551.6 kPag): 78.6 | 90 psig (620.6 kPag): 87.2 | 100 psig (689.5 kPag): 95.8
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 24.5 | 20 In. Hg.: 24.5 | 30 In. Hg.: 24.5
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 11.6 | 20 In. Hg. (508 Mm. Hg.): 11.6 | 30 In. Hg. (762 Mm. Hg.): 11.6
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 19.2 | 10 In. Hg.: 23.6
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 9.08 | 10 In. Hg. (254 Mm. Hg.): 11.1
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.048 | 2 psig: 0.068 | 3 psig: 0.083 | 4 psig: 0.096 | 5 psig: 0.107 | 6 psig: 0.118 | 7 psig: 0.127 | 8 psig: 0.136 | 9 psig: 0.144 | 10 psig: 0.152 | 15 psig: 0.186 | 20 psig: 0.215 | 30 psig: 0.263 | 40 psig: 0.304 | 50 psig: 0.339 | 60 psig: 0.372 | 70 psig: 0.402 | 80 psig: 0.429 | 90 psig: 0.455 | 100 psig: 0.480
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.182 | 2 psig (13.8 kPag): 0.257 | 3 psig (20.7 kPag): 0.315 | 4 psig (27.6 kPag): 0.363 | 5 psig (34.5 kPag): 0.406 | 6 psig (41.4 kPag): 0.445 | 7 psig (48.3 kPag): 0.481 | 8 psig (55.2 kPag): 0.514 | 9 psig (62.1 kPag): 0.545 | 10 psig (69 kPag): 0.575 | 15 psig (103.4 kPag): 0.704 | 20 psig (137.9 kPag): 0.813 | 30 psig (206.9 kPag): 0.995 | 40 psig (275.8 kPag): 1.149 | 50 psig (344.8 kPag): 1.285 | 60 psig (413.7 kPag): 1.407 | 70 psig (482.7 kPag): 1.520 | 80 psig (551.6 kPag): 1.625 | 90 psig (620.6 kPag): 1.724 | 100 psig (689.5 kPag): 1.817
Specifications Connection A
1/4" NPT Male
Specifications Connection B
3/16" OD Tube Push-Lock
Specifications Cv
0.048
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
47
Specifications Screened
None
Specifications Seal Material
Buna-N
