Precision Metal Orifices Tube Adapters 1/4 NPT x Tube
$29.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices Tube Adapters 1/4 NPT x Tube
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

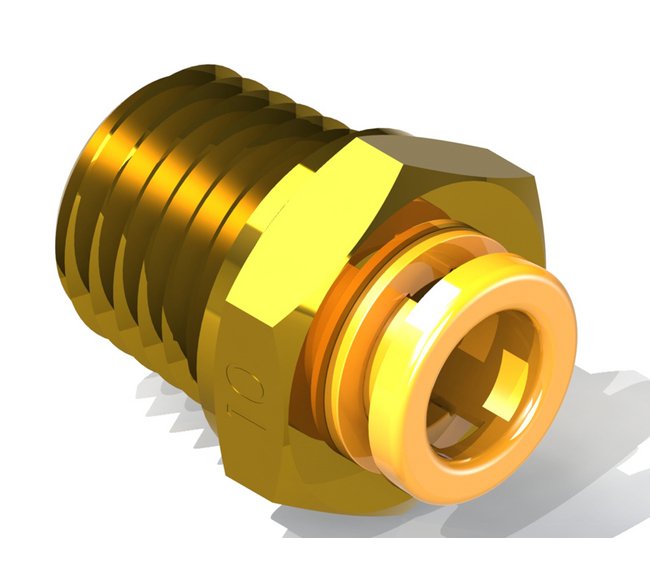

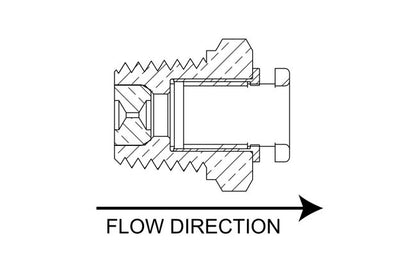

Upgrade your fluid systems with these high-quality Precision Metal Orifices Push-On Tube Adapters. Constructed with Brass/Plastic materials and Buna-N seal, these adapters ensure durability and reliable performance. With a Nominal Orifice Size of 47 and CV of 0.048, they can withstand a Maximum Operating Pressure of 140 psig. The 1/4" NPT Male and 1/4" OD Tube Push-Lock connections provide seamless integration. Ideal for precise control, these adapters offer consistent air and water flow rates, meeting stringent industry standards for accuracy and efficiency.
Product Specifications

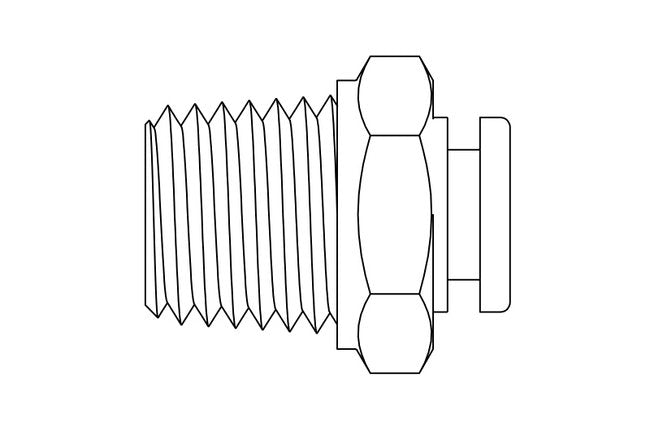

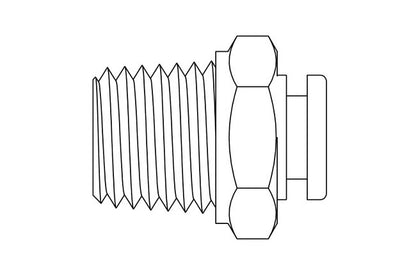

Dimensions Orifice Diameter
0.047 in
Dimensions Total Length
0.91 in
Dimensions Width Across Flats Hex
5/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 13.60 | 5 psig: 30.1 | 10 psig: 41.0 | 15 psig: 50.0 | 20 psig: 58.7 | 25 psig: 67.6 | 30 psig: 76.3 | 40 psig: 94.3 | 50 psig: 112 | 60 psig: 130 | 70 psig: 148 | 80 psig: 167 | 90 psig: 185 | 100 psig: 203
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 6.43 | 5 psig (34.5 kPag): 14.2 | 10 psig (69.0 kPag): 19.4 | 15 psig (103.4 kPag): 23.6 | 20 psig (137.9 kPag): 27.7 | 25 psig (172.4 kPag): 31.9 | 30 psig (206.9 kPag): 36 | 40 psig (275.8 kPag): 44.5 | 50 psig (344.8 kPag): 52.9 | 60 psig (413.7 kPag): 61.5 | 70 psig (482.7 kPag): 70 | 80 psig (551.6 kPag): 78.6 | 90 psig (620.6 kPag): 87.2 | 100 psig (689.5 kPag): 95.8
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 24.5 | 20 In. Hg.: 24.5 | 30 In. Hg.: 24.5
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 11.6 | 20 In. Hg. (508 Mm. Hg.): 11.6 | 30 In. Hg. (762 Mm. Hg.): 11.6
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 19.2 | 10 In. Hg.: 23.6
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 9.08 | 10 In. Hg. (254 Mm. Hg.): 11.1
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.048 | 2 psig: 0.068 | 3 psig: 0.083 | 4 psig: 0.096 | 5 psig: 0.107 | 6 psig: 0.118 | 7 psig: 0.127 | 8 psig: 0.136 | 9 psig: 0.144 | 10 psig: 0.152 | 15 psig: 0.186 | 20 psig: 0.215 | 30 psig: 0.263 | 40 psig: 0.304 | 50 psig: 0.339 | 60 psig: 0.372 | 70 psig: 0.402 | 80 psig: 0.429 | 90 psig: 0.455 | 100 psig: 0.480
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.182 | 2 psig (13.8 kPag): 0.257 | 3 psig (20.7 kPag): 0.315 | 4 psig (27.6 kPag): 0.363 | 5 psig (34.5 kPag): 0.406 | 6 psig (41.4 kPag): 0.445 | 7 psig (48.3 kPag): 0.481 | 8 psig (55.2 kPag): 0.514 | 9 psig (62.1 kPag): 0.545 | 10 psig (69 kPag): 0.575 | 15 psig (103.4 kPag): 0.704 | 20 psig (137.9 kPag): 0.813 | 30 psig (206.9 kPag): 0.995 | 40 psig (275.8 kPag): 1.149 | 50 psig (344.8 kPag): 1.285 | 60 psig (413.7 kPag): 1.407 | 70 psig (482.7 kPag): 1.520 | 80 psig (551.6 kPag): 1.625 | 90 psig (620.6 kPag): 1.724 | 100 psig (689.5 kPag): 1.817
Specifications Connection A
1/4" NPT Male
Specifications Connection B
1/4" OD Tube Push-Lock
Specifications Cv
0.048
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
47
Specifications Screened
None
Specifications Seal Material
Buna-N
