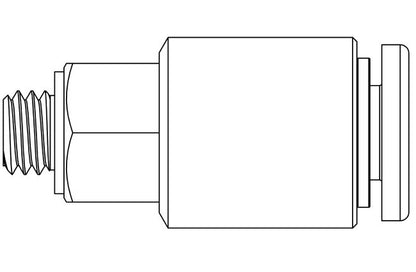

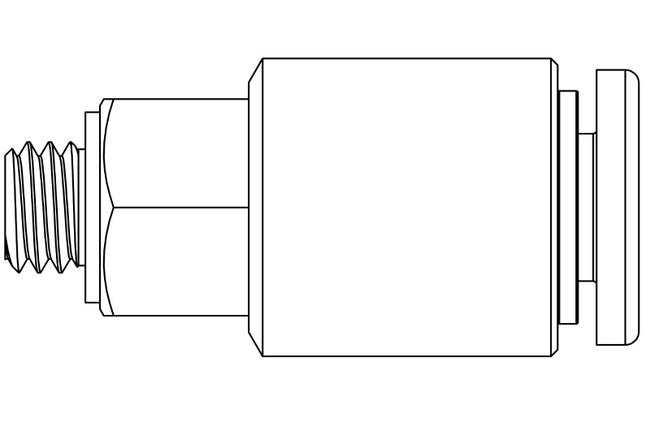

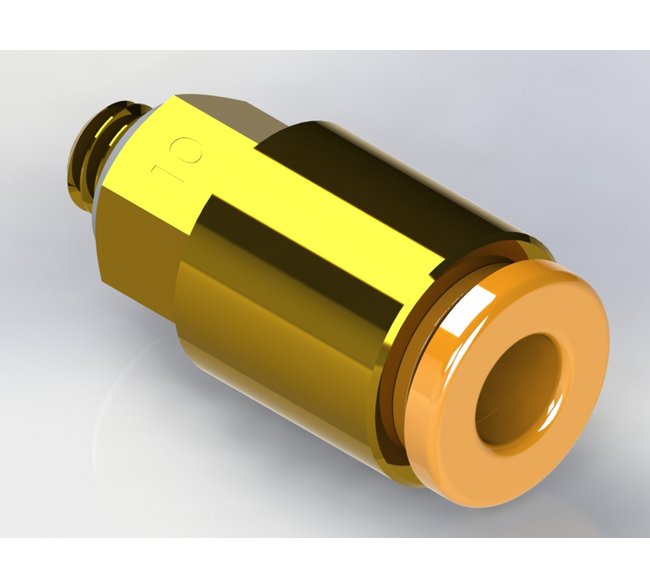

Precision Metal Orifices - Tube Adapters, 10-32 UNF x Tube
Precision Metal Orifices - Tube Adapters, 10-32 UNF x Tube
SKU:PRE-4d3975
High-quality Precision Metal Orifices for precise control in fluid systems. Brass/Plastic construction with Buna-N seal. Max Pressure: 140 psig.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Metal Orifices - Tube Adapters, 10-32 UNF x Tube
$29.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifices - Tube Adapters, 10-32 UNF x Tube
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Metal Orifices - Push-On Tube Adapters are engineered for precise control and reliable performance in fluid systems. Constructed from high-quality Brass/Plastic materials with a Buna-N seal, these adapters ensure a secure connection. With an Orifice Diameter of 0.017 inches and a Maximum Operating Pressure of 140 psig, they guarantee efficient flow control. Ideal for air and water applications, these adapters meet stringent industry standards for accuracy and durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Orifice Diameter
0.017 in
Dimensions Total Length
0.95 in
Dimensions Width Across Flats Hex
5/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 1.64 | 5 psig: 3.73 | 10 psig: 4.79 | 15 psig: 6.04 | 20 psig: 7.20 | 25 psig: 8.31 | 30 psig: 9.39 | 40 psig: 11.6 | 50 psig: 13.8 | 60 psig: 16.0 | 70 psig: 18.2 | 80 psig: 20.5 | 90 psig: 22.7 | 100 psig: 25.0
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.77 | 5 psig (34.5 kPag): 1.76 | 10 psig (69.0 kPag): 2.26 | 15 psig (103.4 kPag): 2.85 | 20 psig (137.9 kPag): 3.40 | 25 psig (172.4 kPag): 3.92 | 30 psig (206.9 kPag): 4.43 | 40 psig (275.8 kPag): 5.47 | 50 psig (344.8 kPag): 6.51 | 60 psig (413.7 kPag): 7.56 | 70 psig (482.7 kPag): 8.61 | 80 psig (551.6 kPag): 9.67 | 90 psig (620.6 kPag): 10.7 | 100 psig (689.5 kPag): 11.8
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 3.28 | 20 In. Hg.: 3.28 | 30 In. Hg.: 3.28
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 1.55 | 20 In. Hg. (508 Mm. Hg.): 1.55 | 30 In. Hg. (762 Mm. Hg.): 1.55
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 2.41 | 10 In. Hg.: 2.99
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 1.14 | 10 In. Hg. (254 Mm. Hg.): 1.41
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0067 | 2 psig: 0.0095 | 3 psig: 0.0116 | 4 psig: 0.0134 | 5 psig: 0.0150 | 6 psig: 0.0164 | 7 psig: 0.0177 | 8 psig: 0.0190 | 9 psig: 0.0201 | 10 psig: 0.0212 | 15 psig: 0.0259 | 20 psig: 0.0300 | 30 psig: 0.0367 | 40 psig: 0.0424 | 50 psig: 0.0474 | 60 psig: 0.0519 | 70 psig: 0.0561 | 80 psig: 0.0599 | 90 psig: 0.0636 | 100 psig: 0.0670
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0254 | 2 psig (13.8 kPag): 0.0359 | 3 psig (20.7 kPag): 0.0439 | 4 psig (27.6 kPag): 0.0507 | 5 psig (34.5 kPag): 0.0567 | 6 psig (41.4 kPag): 0.0567 | 7 psig (48.3 kPag): 0.0671 | 8 psig (55.2 kPag): 0.0717 | 9 psig (62.1 kPag): 0.0761 | 10 psig (69 kPag): 0.0802 | 15 psig (103.4 kPag): 0.0982 | 20 psig (137.9 kPag): 0.1134 | 30 psig (206.9 kPag): 0.1389 | 40 psig (275.8 kPag): 0.1604 | 50 psig (344.8 kPag): 0.1793 | 60 psig (413.7 kPag): 0.1965 | 70 psig (482.7 kPag): 0.2122 | 80 psig (551.6 kPag): 0.2268 | 90 psig (620.6 kPag): 0.2406 | 100 psig (689.5 kPag): 0.2536
Specifications Connection A
10-32 UNF Male
Specifications Connection B
3/16" OD Tube Push-Lock
Specifications Cv
0.0067
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
17
Specifications Screened
None
Specifications Seal Material
Buna-N
