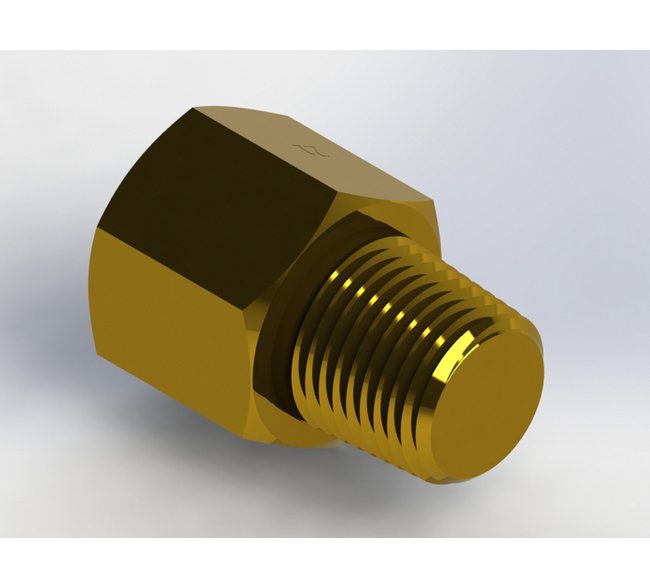

Precision Metal Pressure Snubber - NPT Pipe Adapter
Precision Metal Pressure Snubber - NPT Pipe Adapter
SKU:PRE-213524
Efficiently control fluid flow with the Precision Metal Pressure Snubber for precise pressure management.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Metal Pressure Snubber - NPT Pipe Adapter
$29.99
Quantity: 1
Claim Your Seller Account
Precision Metal Pressure Snubber - NPT Pipe Adapter
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Metal Pressure Snubber - NPT Pipe Adapter is a vital in-line element designed to mitigate rapid pressure fluctuations in critical instruments and controls. Crafted from durable brass, this snubber features a precise 0.008" orifice diameter, ensuring efficient flow control and shock absorption. With a CV of 0.0015 and a maximum operating pressure of 2000 psig, it meets rigorous industry standards for accuracy and reliability. Ideal for pressure gauges, measuring instruments, and pneumatic or hydraulic valves, this snubber guarantees optimal fluid flow regulation and system response.
Product Specifications
Application 0
Pressure snubbers are used as in-line elements to reduce rapid pressure fluctuations in the following types of components: Pressure Gages Pressure Measuring Instruments Air Piloted Valves Hydraulic Piloted Valves They can also be used to control the flow rate of fluid delivered to: Air Cylinders Hydraulic Cylinders Fluid Actuators
Dimensions Orifice Diameter
0.008 in
Dimensions Total Length
1.690 in
Dimensions Width Across Flats Hex
1 1/16 in
Specifications Connection A
1/2" NPT Male
Specifications Connection B
1/2" NPT Female
Specifications Cv
0.0015
Specifications Material
Brass
Specifications Maximum Operating Pressure
2000 psig
Specifications Screened
None
