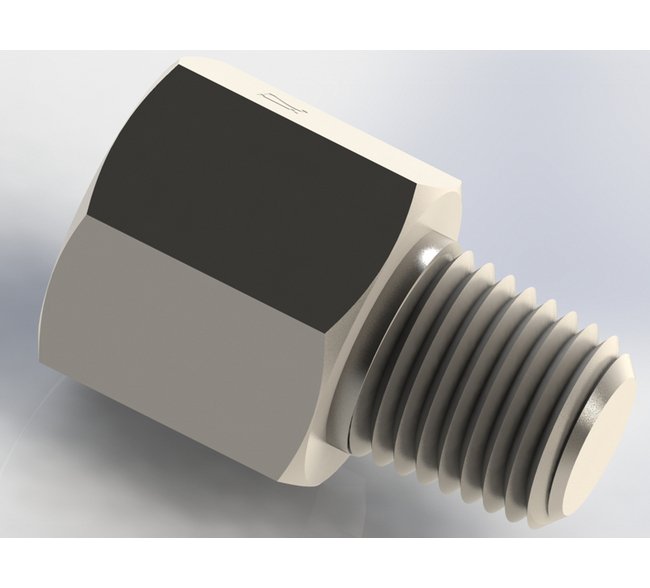

Precision Metal Pressure Snubber - NPT Pipe Adapter
Precision Metal Pressure Snubber - NPT Pipe Adapter
SKU:PRE-9ed356
Reduce fluid flow rates effectively with the Precision Metal Pressure Snubber - NPT Pipe Adapter, ensuring precise system response and control.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Metal Pressure Snubber - NPT Pipe Adapter
$29.99
Quantity: 1
Claim Your Seller Account
Precision Metal Pressure Snubber - NPT Pipe Adapter
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Metal Pressure Snubber - NPT Pipe Adapter is a critical in-line element designed to reduce fluid flow rate into pressure instruments and controls. With an orifice diameter ranging from .004" to .020", this pressure snubber effectively dampens shock and pressure fluctuations to ensure precise system response. Crafted from high-grade 303 SS, it offers a maximum operating pressure of 4000 psig and features 1/4" NPT male/female connections for seamless integration. Ideal for pressure gages, measuring instruments, and pneumatic/hydraulic valves, this precision snubber aids in controlling fluid flow accurately in various applications.
Product Specifications
Application 0
Pressure snubbers are used as in-line elements to reduce rapid pressure fluctuations in the following types of components: Pressure Gages Pressure Measuring Instruments Air Piloted Valves Hydraulic Piloted Valves They can also be used to control the flow rate of fluid delivered to: Air Cylinders Hydraulic Cylinders Fluid Actuators
Dimensions Orifice Diameter
0.0040 in
Dimensions Total Length
1.25 in
Dimensions Width Across Flats Hex
3/4 in
Specifications Connection A
1/4" NPT Male
Specifications Connection B
1/4" NPT Female
Specifications Cv
0.00035
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Screened
None
