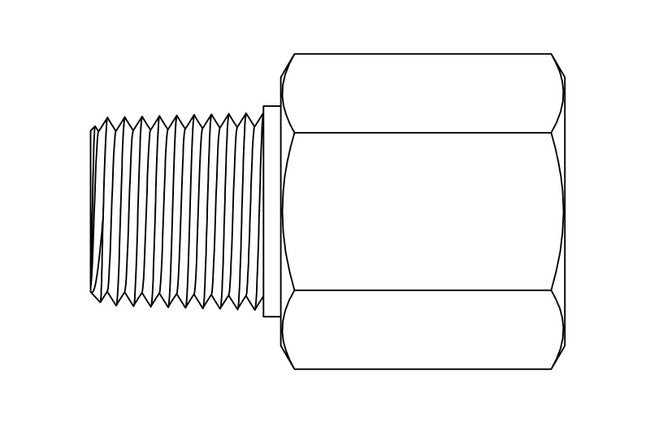

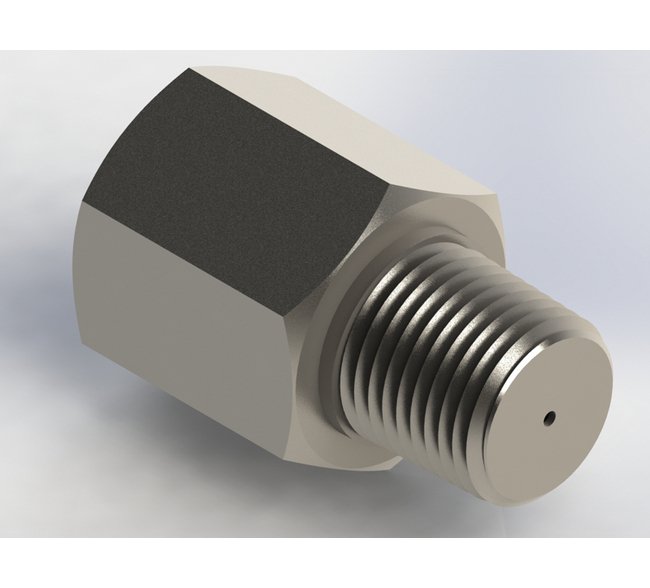

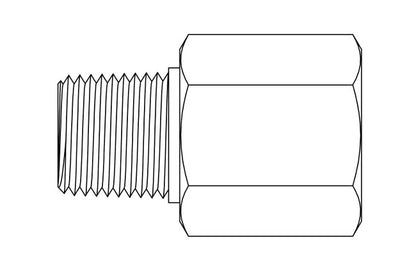

Precision Metal Pressure Snubber with NPT Pipe Adapter

Name: Precision Metal Pressure Snubber with NPT Pipe Adapter
Brand: O'Keefe Controls Co.
SKU: PRE-b80a2c
Price: 39.99 USD
Availability: OutOfStock

SKU:PRE-b80a2c

Enhance system stability with Precision Metal Pressure Snubber featuring NPT Pipe Adapter. Ideal for pressure instruments and fluid control. Reliable and durable.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

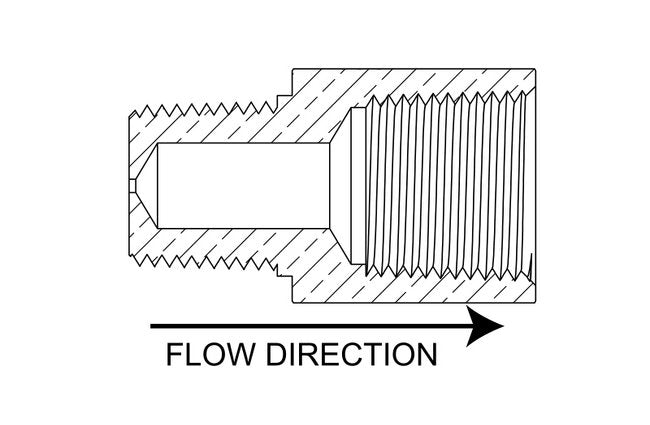

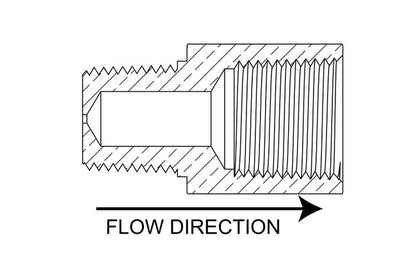

The Precision Metal Pressure Snubber with NPT Pipe Adapter is a crucial in-line component designed to mitigate rapid pressure fluctuations, ensuring optimal performance for pressure instruments and controls. Crafted from durable 303 SS, it features a precise orifice diameter of 0.008 inches and a CV of 0.0015. With a maximum operating pressure of 4000 psig, this snubber offers exceptional reliability in diverse industrial applications. It is ideal for pressure gauges, measuring instruments, air and hydraulic piloted valves, as well as fluid control in cylinders and actuators. Choose this pressure snubber for unparalleled performance and durability.

Product Specifications

Application 0

Pressure snubbers are used as in-line elements to reduce rapid pressure fluctuations in the following types of components: Pressure Gages Pressure Measuring Instruments Air Piloted Valves Hydraulic Piloted Valves They can also be used to control the flow rate of fluid delivered to: Air Cylinders Hydraulic Cylinders Fluid Actuators

Dimensions Orifice Diameter

0.008 in

Dimensions Total Length

1.520 in

Dimensions Width Across Flats Hex

7/8 in

Specifications Connection A

3/8" NPT Male

Specifications Connection B

3/8" NPT Female

Specifications Cv

0.0015

Specifications Material

303 SS

Specifications Maximum Operating Pressure

4000 psig

Specifications Screened

None
