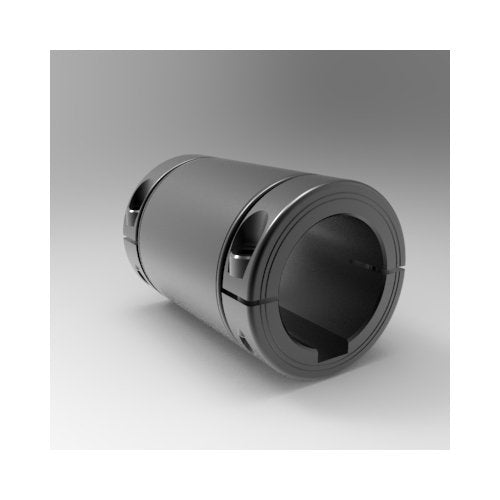

The Precision Metric One-Piece Split Sleeve Coupling with Keyways offers superior shaft alignment with axial runout less than .001'' TIR. Made of durable steel with a black oxide finish, this coupling includes integral self-centering clamping collars for zero backlash mating of shafts. With a close tolerance fit and standard keyway, this Stafford exclusive design ensures precise and smooth operations, protecting shafts from damage. This product is RoHS2 and REACH compliant, assuring quality and environmental standards are met.
Product Specifications
Dimensional Attributes Bore Size A
40 mm
Dimensional Attributes Bore Size B
40 mm
Dimensional Attributes Keyway A
12 mm
Dimensional Attributes Keyway B
12 mm
Dimensional Attributes Outside Diameter
60 mm
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Size
M6 x 1.0 x 18
Dimensional Attributes Total Length
90 mm
Specifications Alloy
1215
Specifications Approximate Weight
2.18 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications List Price
212.65 USD
Specifications Material
Steel
Specifications Part Number
5LM040040KPSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Screw Material
Alloy Steel
Specifications Series
Signature
Specifications Type
Precision Sleeve
Specifications Upc Code
662786042607
