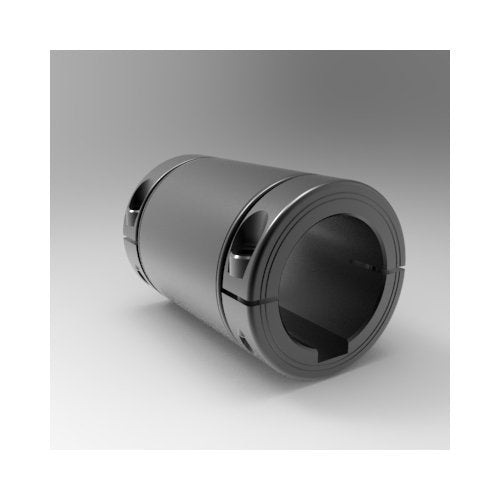

Precision Metric Sleeve Couplings with Keyways
Precision Metric Sleeve Couplings with Keyways
SKU:ROU-a96135
Achieve precision shaft alignment with our Metric Sleeve Couplings, featuring zero backlash and keyways for secure shaft connections.
Regular price
$85.71
Regular price
Sale price
$85.71
Unit price
per
Initiate Order
Precision Metric Sleeve Couplings with Keyways
$85.71
Quantity: 1
Claim Your Seller Account
Precision Metric Sleeve Couplings with Keyways
$85.71
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Metric Sleeve Couplings with Keyways are meticulously engineered to ensure optimal shaft alignment with axial runout less than .001" TIR. Made from durable steel with a black oxide finish, these precision sleeve couplings feature a solid center section for a snug fit on ground shafting, including keyways for enhanced security. The Accu-Clamp™ design incorporates self-centering clamping collars at both ends, facilitating zero backlash when mating two shafts. With a bore size of 14 mm, keyway size of 5 mm, and a total length of 50 mm, these couplings offer unparalleled precision and protection thanks to the smooth bore that safeguards shafts from damage.
Product Specifications
Dimensional Attributes Bore Size A
14 mm
Dimensional Attributes Bore Size B
14 mm
Dimensional Attributes Keyway A
5 mm
Dimensional Attributes Keyway B
5 mm
Dimensional Attributes Outside Diameter
30 mm
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Size
M4 x 0.7 x 12
Dimensional Attributes Total Length
50 mm
Specifications Alloy
1215
Specifications Approximate Weight
0.40 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications List Price
85.71 USD
Specifications Material
Steel
Specifications Part Number
5LM014014KPSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Screw Material
Alloy Steel
Specifications Series
Signature
Specifications Type
Precision Sleeve
Specifications Upc Code
662786042522
