Precision Metric Split Sleeve Coupling with Keyways
Precision Metric Split Sleeve Coupling with Keyways
SKU:ROU-cb762a
Achieve precise shaft alignment with the Stafford Precision Metric Split Sleeve Coupling. Zero backlash & superior engineering. RoHS & REACH compliant.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Precision Metric Split Sleeve Coupling with Keyways
$79.99
Quantity: 1
Claim Your Seller Account
Precision Metric Split Sleeve Coupling with Keyways
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

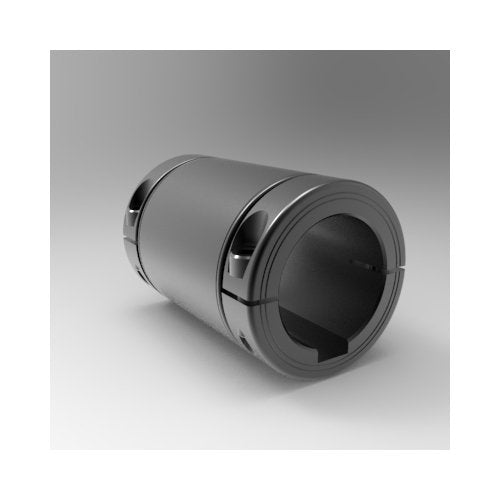

The Precision Metric Split Sleeve Coupling with Keyways by Stafford is expertly crafted for precise shaft alignment and zero backlash. This steel coupling features a solid center section for a close tolerance fit, standard keyways, and Stafford's Accu-Clamp design with integral self-centering clamping collars at both ends. With axial runout less than 0.001" TIR, this coupling ensures minimal shaft misalignment, while the smooth bore protects shafts from damage. Designed in the USA, this RoHS and REACH compliant coupling is built to meet the highest industry standards.
Product Specifications
Dimensional Attributes Bore Size A
45 mm
Dimensional Attributes Bore Size B
45 mm
Dimensional Attributes Keyway A
14 mm
Dimensional Attributes Keyway B
14 mm
Dimensional Attributes Outside Diameter
73 mm
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Size
M8 x 1.25 x 25
Dimensional Attributes Total Length
105 mm
Specifications Alloy
1215
Specifications Approximate Weight
4.17 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
5LM045045KPSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Screw Material
Alloy Steel
Specifications Series
Signature
Specifications Type
Precision Sleeve
Specifications Upc Code
662786042614
