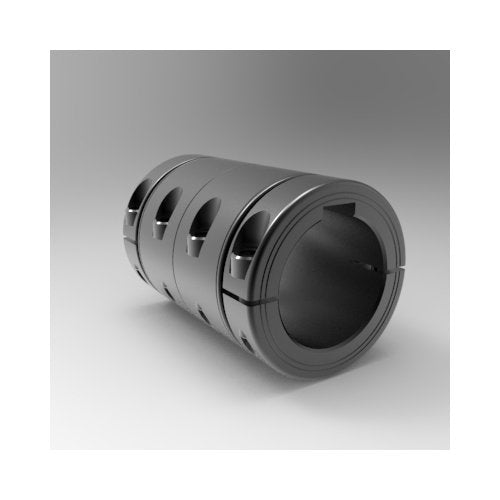

Precision Metric Two-Piece Split Sleeve Couplings with Keyways

Name: Precision Metric Two-Piece Split Sleeve Couplings with Keyways
Brand: Stafford Manufacturing Corp.
SKU: ROU-bfe678
Price: 159.96 USD
Availability: OutOfStock

SKU:ROU-bfe678

Achieve precise shaft alignment with our Steel Metric Split Sleeve Couplings. Easy to adjust, high clamping power, RoHS2 and REACH compliant.

$159.96

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance precision and alignment with our Metric Two-Piece Split Sleeve Couplings. Featuring a balanced design with clamp screws in opposing directions for convenient assembly and adjustment. This steel coupling assures shaft alignment with axial runout less than 0.001" TIR. The exclusive solid center section, keyway inclusion, and Accu-Clamp™ design ensure a close tolerance fit and high clamping power. Non-marring and easy to adjust, this coupling is RoHS2 and REACH compliant, meeting industry standards for quality and performance.

Product Specifications

Dimensional Attributes Bore Size A

30 mm

Dimensional Attributes Bore Size B

30 mm

Dimensional Attributes Keyway A

8 mm

Dimensional Attributes Keyway B

8 mm

Dimensional Attributes Outside Diameter

54 mm

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Size

M6 x 1.0 x 16

Dimensional Attributes Total Length

75 mm

Specifications Alloy

1215

Specifications Approximate Weight

1.72 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications List Price

159.96 USD

Specifications Material

Steel

Specifications Part Number

5LM030030FKPSC

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Screw Material

Alloy Steel

Specifications Series

Signature

Specifications Type

Precision Sleeve

Specifications Upc Code

662786042690
