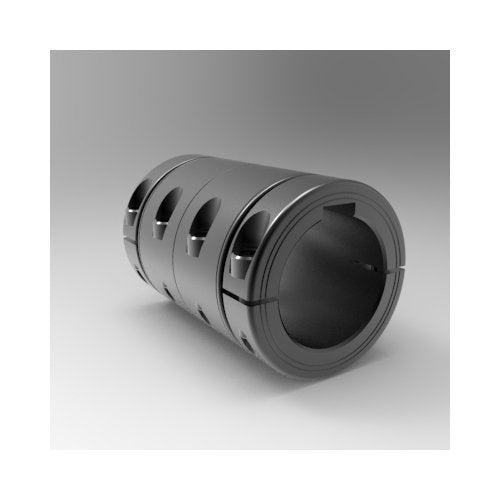

Precision Metric Two-Piece Split Sleeve Couplings with Keyways

Name: Precision Metric Two-Piece Split Sleeve Couplings with Keyways
Brand: Stafford Manufacturing Corp.
SKU: ROU-c49ce3
Price: 49.99 USD
Availability: OutOfStock

SKU:ROU-c49ce3

Achieve precise shaft alignment with our Metric Precision Couplings for seamless assembly & adjustment. Made of durable 1215 steel with Accu-Clamp™ design for maximum performance.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Precision Metric Two-Piece Split Sleeve Couplings with Keyways are meticulously engineered to provide optimal shaft alignment and versatility in assembly and adjustment. Featuring a solid center section with a keyway and Accu-Clamp™ design, these couplings ensure precise alignment with axial runout less than .001" TIR. Made of high-grade 1215 steel with black oxide finish for durability, this product offers a smooth bore to protect shafts from damage. Stafford's exclusive design incorporates integral self-centering clamping collars at both ends, delivering ease of use, non-marring attributes, and high clamping power.

Product Specifications

Dimensional Attributes Bore Size A

45 mm

Dimensional Attributes Bore Size B

45 mm

Dimensional Attributes Keyway A

14 mm

Dimensional Attributes Keyway B

14 mm

Dimensional Attributes Outside Diameter

73 mm

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Size

M8 x 1.25 x 25

Dimensional Attributes Total Length

105 mm

Specifications Alloy

1215

Specifications Approximate Weight

4.02 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

5LM045045FKPSC

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Screw Material

Alloy Steel

Specifications Series

Signature

Specifications Type

Precision Sleeve

Specifications Upc Code

662786042720

Precision Metric Two-Piece Split Sleeve Couplings with Keyways
