Precision Mini Regulator Model 50
Precision Mini Regulator Model 50
SKU:MOD-2b6d65
Achieve precise pressure control with the Precision Mini Regulator Model 50. Ideal for industrial use, offering a range of 0-100 psig.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Precision Mini Regulator Model 50
$89.99
Quantity: 1
Claim Your Seller Account
Precision Mini Regulator Model 50
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

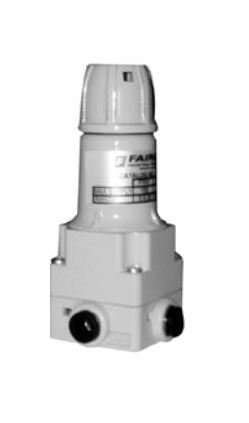

The Precision Mini Regulator Model 50 by Fairchild is a top-of-the-line pneumatic regulator designed to reduce high input pressure to a precise lower output pressure, ensuring stability under varying conditions. With a range of 0 to 100 psig and meticulous engineering, this regulator guarantees accurate pressure control for industrial applications. Its compact design, coupled with a diverse range of pressure and flow capacities, makes it an ideal choice for instrument control in both consumer and institutional settings.
Product Specifications
Specifications Diameter
46.7 mm
Specifications Exhaust Capacity When Downstream Pressure Is 15 P
2.0 ft³/min | 3.4 m³/h
Specifications Flow Capacity At Supply Of 120 Pounds Per Square
10 ft³/min | 17.0 m³/h
Specifications Height
94.7 mm
Specifications Maximum Pressure Supply
150 psig | 1000 kPa
Specifications National Pipe Thread Size
1/4 in
Specifications Range
0 to 10 psig | 0.5 to 30 psig | 1 to 60 psig | 2 to 100 psig | 0 to 70 kPa | 3 to 200 kPa | 7 to 400 kPa | 15 to 700 kPa
Specifications Sensitivity
5.0 Inch/WC | 12.7 cm
Specifications Variable Pressure Supply
<0.1 psig | <0.7 kPa
