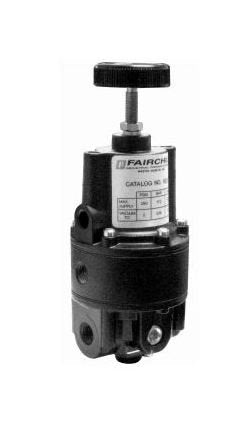

The Precision Model 16 Vacuum Regulators by Fairchild are designed to efficiently reduce high input pressure to a precise lower output pressure. Ideal for instrument and industrial control applications, these regulators offer exceptional flow capacities including 2.5 ft³/min at 29 inHg vacuum, 40 ft³/min for positive flow, and 5.5 ft³/min exhaust capacity. With a sensitivity of 0.50 Inch/WC and maximum pressure supply of 250 psig, these regulators ensure consistent performance under varying conditions. The Model 16 features a diameter of 76 mm, a vacuum range from 2 psig to 1000 kPa, and National Pipe Thread sizes for easy installation.
Product Specifications
Specifications Diameter
76 mm
Specifications Exhaust Capacity
5.5 ft³/min | 9.4 m³/h
Specifications Flow Capacity At 29 Inch In Vacuum With Inlet Por
2.5 ft³/min | 4 m³/h
Specifications Flow Capacity At Positive Flow
40 ft³/min | 68 m³/h
Specifications Height
203 mm
Specifications Maximum Pressure Supply
250 psig | 1700 kPa
Specifications National Pipe Thread Size
1/2 in | 1/4 in | 3/8 in
Specifications Sensitivity
0.50 Inch/WC | 1.27 cm
Specifications Vacuum Range
2 psig | 10 psig | 30 psig | 100 psig | 150 psig | 15 kPa | 70 kPa | 200 kPa | 700 kPa | 1000 kPa
Specifications Variable Pressure Supply
<0.1 psig | <0.7 kPa
