Precision Model 70B Pneumatic Regulator
Precision Model 70B Pneumatic Regulator
SKU:MOD-b20bb9
Achieve precision pressure regulation with the compact and reliable Model 70B Pneumatic Regulator from Fairchild.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Precision Model 70B Pneumatic Regulator
$149.99
Quantity: 1
Claim Your Seller Account
Precision Model 70B Pneumatic Regulator
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

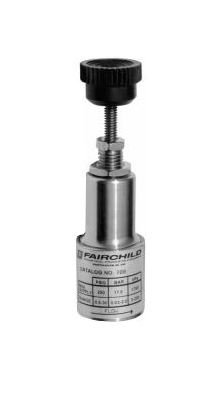

The Precision Model 70B Pneumatic Regulator by Fairchild is a top-of-the-line regulator designed to reduce unregulated high input pressure to a precise lower output pressure, ensuring optimal performance under various conditions. With a flow capacity of 2.5 ft³/min and a maximum pressure supply of 250 psig, this regulator offers unparalleled efficiency and reliability. Its compact design, with a diameter of 22 mm and height of 81 mm, makes it ideal for instrument and general industrial control applications. Trust Fairchild's engineering excellence to deliver precision and consistency in pressure regulation, meeting the highest quality standards for institutional and government buyers.
Product Specifications
Specifications Diameter
22 mm
Specifications Exhaust Capacity
0.28 ft³/min | 0.48 m³/h
Specifications Flow Capacity
2.5 ft³/min
Specifications Flow Capacity At Supply Of 100 Pounds Per Square
4.25 m³/h
Specifications Height
81 mm
Specifications Maximum Pressure Supply
250 psig | 1700 kPa
Specifications National Pipe Thread Size
1/16 in
Specifications Range
0 to 5 psig | 0 to 15 psig | 0.5 to 30 psig | 1 to 60 psig | 2 to 100 psig | 0 to 35 kPa | 0 to 100 kPa | 3 to 200 kPa | 10 to 400 kPa | 15 to 700 kPa
Specifications Variable Pressure Supply At 5 Pounds Per Square I
<0.05 psig | <0.35 kPa
