Precision Motorized Linear Translation Stage - L-509
Precision Motorized Linear Translation Stage - L-509
SKU:MOT-f7d529
Precision motorized stage for precise movement in autofocus, laser cutting, research, and biotech with high load capacity, compact design, and noncontact optical switches.
Regular price
$999.99
Regular price
Sale price
$999.99
Unit price
per
Initiate Order
Precision Motorized Linear Translation Stage - L-509
$999.99
Quantity: 1
Claim Your Seller Account
Precision Motorized Linear Translation Stage - L-509
$999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Motorized Linear Translation Stage - L-509 is a high-performance positioning solution designed for precise movement in applications such as autofocus, laser cutting, research, biotechnology, and more. With a compact design and load capacity of up to 10 kg, this stage features an optional direct-measuring linear encoder, ActiveDrive motor options, and crossed roller guides with an anti-creep system for enhanced travel accuracy. The stress-relieved aluminum base provides stability, while noncontact optical limit switches and reference switches ensure reliable operation. The inclusion of a precision ball screw with 1 mm pitch guarantees smooth and accurate motion, making it ideal for optical alignment and vacuum environments.
Product Specifications

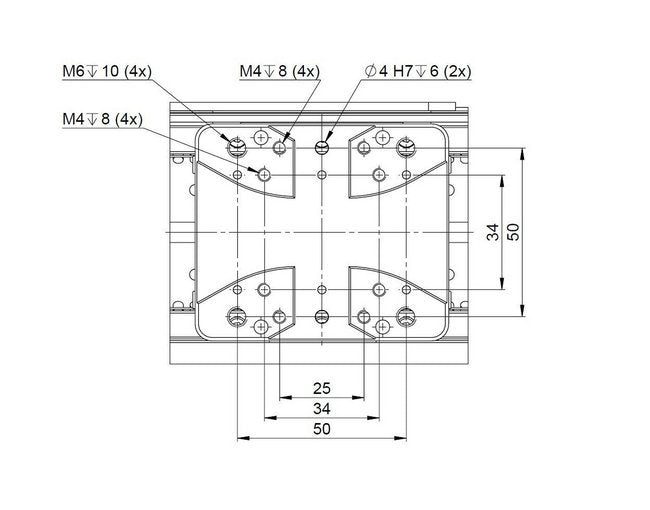

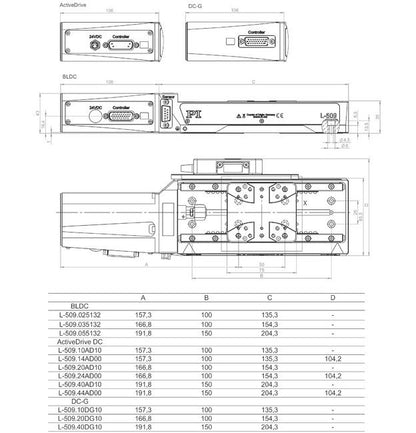

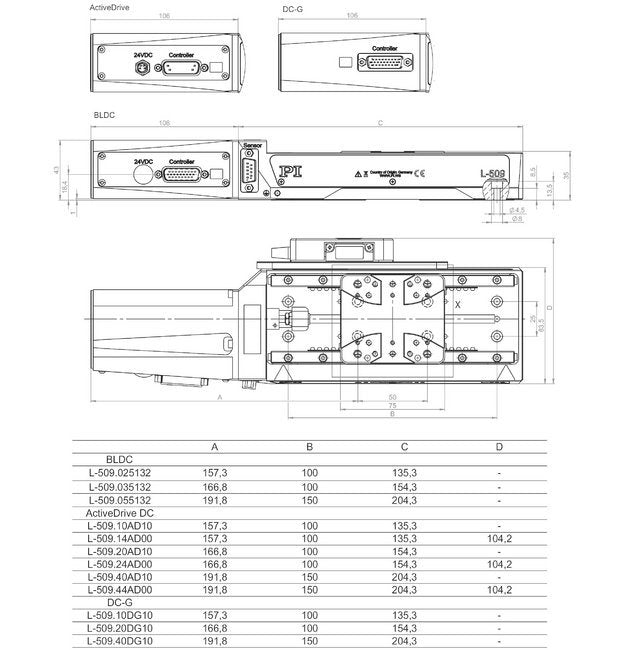

More Information Specifications Cad Drawings Manuals Etc Click L
Specifications, CAD / Drawings, Manuals, Videos
