Precision Motorized Linear Translation Stages - L-509
Precision Motorized Linear Translation Stages - L-509
SKU:MOT-d61c56
Experience unrivaled precision and stability in motion control with L-509 Linear Translation Stages.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
Precision Motorized Linear Translation Stages - L-509
$1,499.99
Quantity: 1
Claim Your Seller Account
Precision Motorized Linear Translation Stages - L-509
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

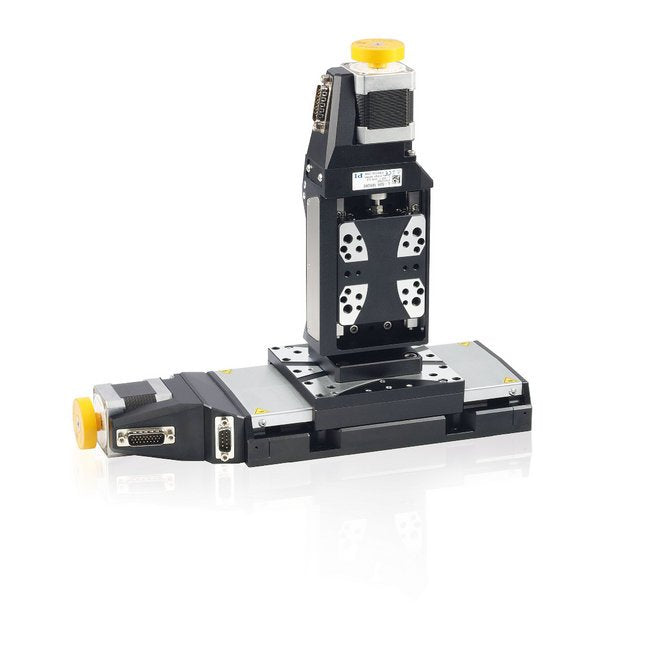

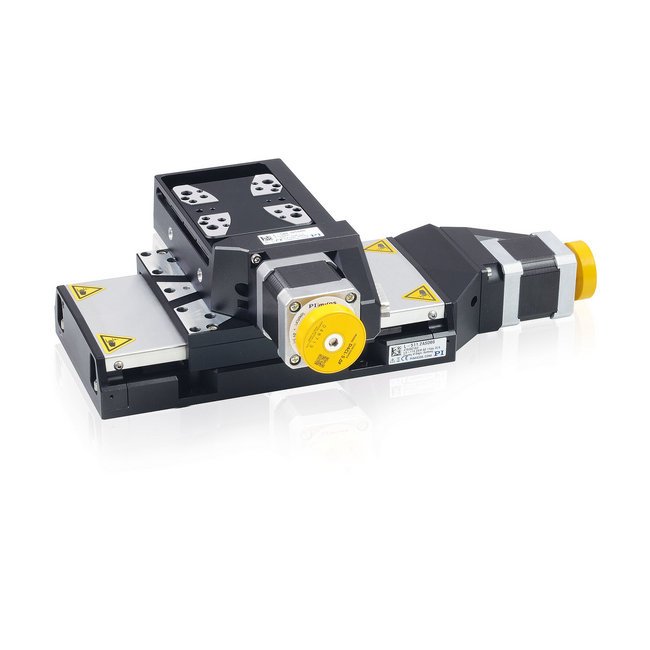

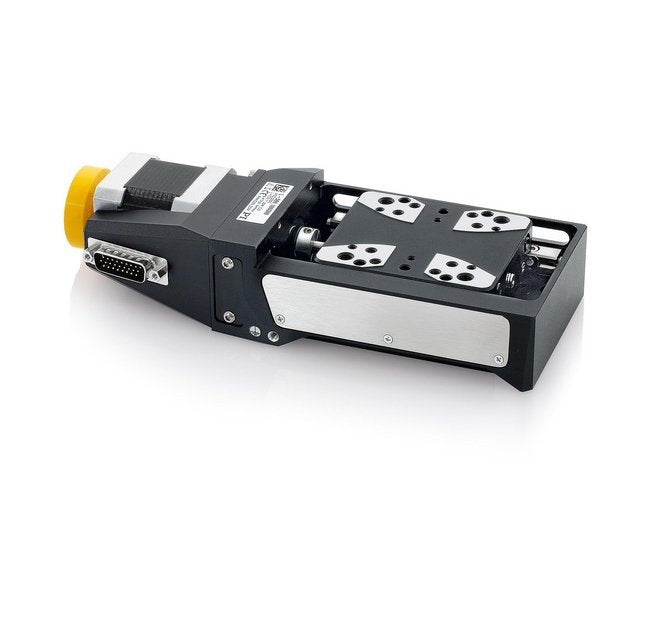

The Precision Motorized Linear Translation Stages - L-509 are ideal for precise positioning with high accuracy and load capacity. Featuring crossed roller guides with an anti-creep system, a precision ball screw, and optional direct-measuring linear encoders, these stages ensure stability and reliability for applications in autofocus, laser cutting, research, biotechnology, automation, and optical alignment. With noncontact optical limit switches and reference switch, these stages offer unparalleled precision and repeatability. Designed for loads up to 10 kg, the compact and stress-relieved aluminum base guarantees exceptional performance. Explore new horizons in motion control and positioning with the L-509 series.
Product Specifications

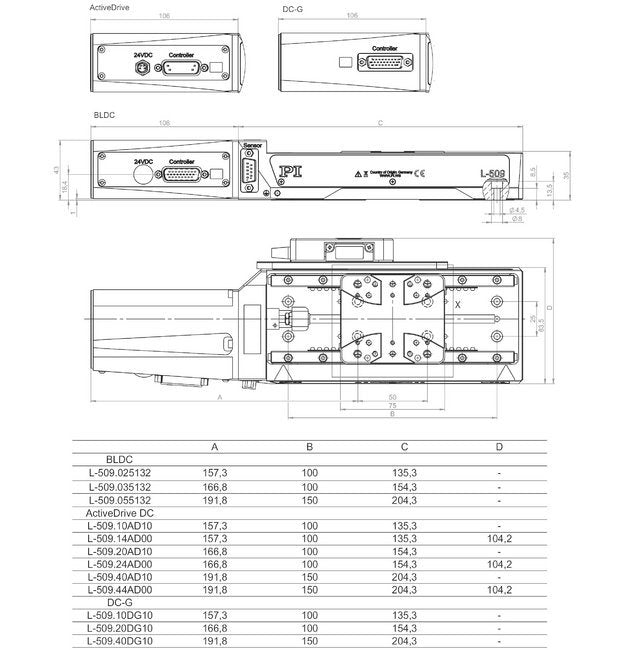

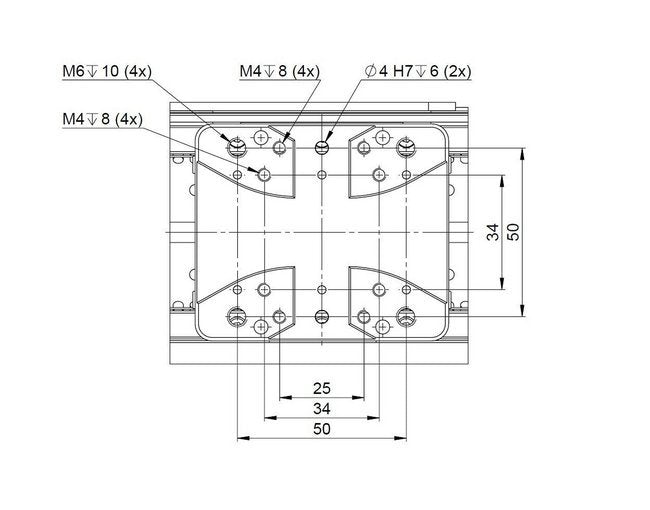

More Information Specifications Cad Drawings Manuals Etc Click L
Specifications, CAD / Drawings, Manuals, Videos
