Precision Motorized Rotary Table
Precision Motorized Rotary Table
SKU:MOT-eb3bc0
Achieve unparalleled precision and versatility with the Precision Motorized Rotary Table, ideal for medical, inspection, assembly, and photonics applications.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Precision Motorized Rotary Table
$1,299.99
Quantity: 1
Claim Your Seller Account
Precision Motorized Rotary Table
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

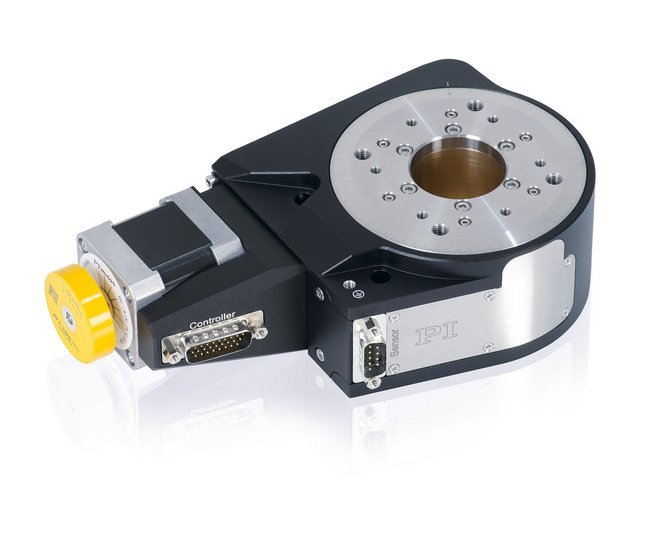

The Precision Motorized Rotary Table, also known as the L-611 Rotation Stage, offers unlimited travel range with direction-sensing reference switches for precise positioning. Equipped with DC, BLDC, and stepper motors, it delivers high-resolution performance suitable for a variety of applications in the medical industry, sample inspection, precision microassembly, metrology, photonics, and vacuum environments. Featuring a reference-class rotation stage, low-play preloaded worm gear, and preloaded pivot bearings, this rotation stage ensures high travel accuracy and positioning precision. Its compact design allows easy integration with other positioning stages for creating multi-axis systems. Customization options include vacuum-compatible variants and measurement logs for wobble, axial, and radial creep accuracy.
Product Specifications

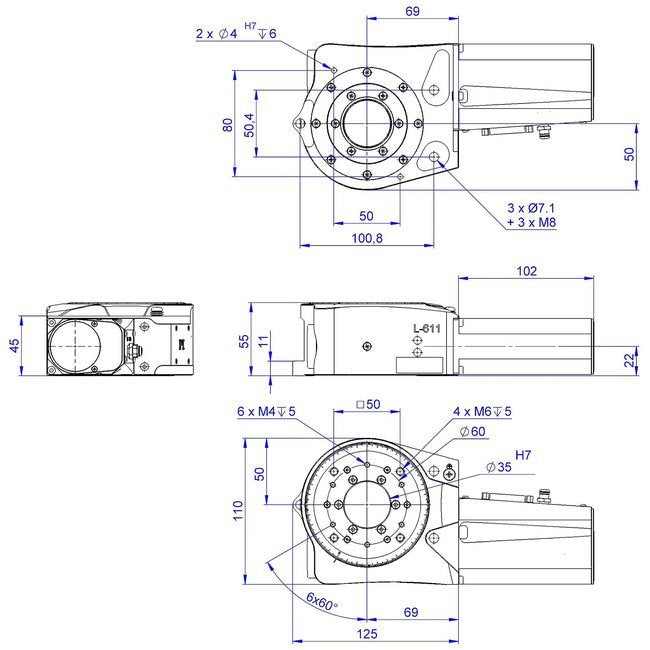

More Information Specifications Cad Drawings Manuals Etc Click L
Specifications, CAD / Drawings, Manuals, Videos
