Precision N-472 PiezoMike Linear Actuator
Precision N-472 PiezoMike Linear Actuator
SKU:MOT-64f8ee
Achieve precision motion control with the Compact N-472 PiezoMike Actuator. Ideal for stable alignment and efficient positioning.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Precision N-472 PiezoMike Linear Actuator
$499.99
Quantity: 1
Claim Your Seller Account
Precision N-472 PiezoMike Linear Actuator
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

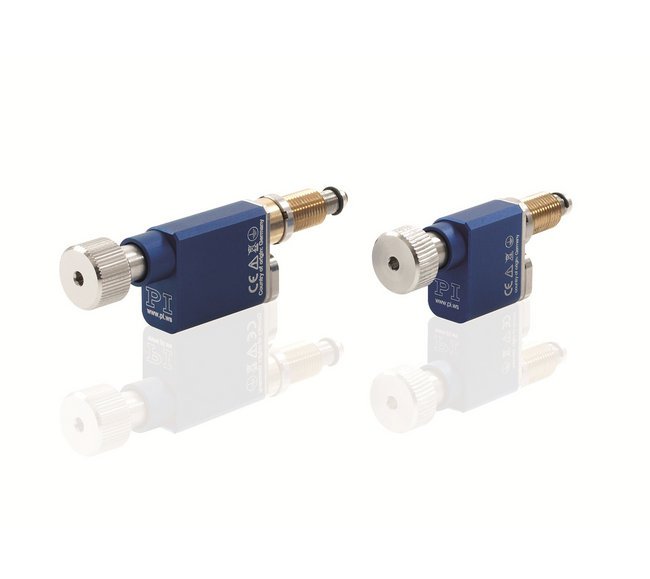

The Precision N-472 PiezoMike Miniature Linear Actuator is designed for precise positioning with a built-in position sensor for closed-loop operation. Its compact design features an integrated incremental encoder ensuring accurate and stable alignment of mechanical and optomechanical components. This self-locking actuator operates on an efficient inertia drive principle, holding positions without generating heat. Vacuum-compatible versions are available, with high holding force and resolution for demanding applications. The integrated position sensor, in conjunction with the E-871 motion controller, provides exceptional motion control with high resolution down to <1 nm.
Product Specifications

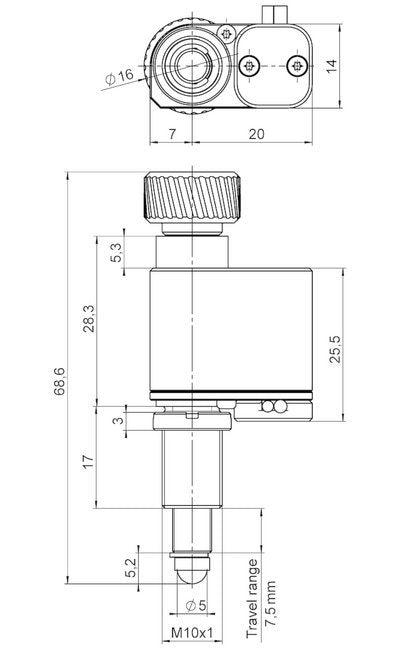

More Information Specifications Cad Drawings Manuals Etc Click L
Specifications, CAD / Drawings, Manuals, Videos
