Precision Negative Pentagon Milling Blanks, Thickness 0.202 / 0.208 in
Precision Negative Pentagon Milling Blanks, Thickness 0.202 / 0.208 in
SKU:MIL-caabf2
Experience precision machining with our Negative Pentagon milling blanks, available in 0.202 / 0.208 in thickness for exacting applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Negative Pentagon Milling Blanks, Thickness 0.202 / 0.208 in
$29.99
Quantity: 1
Claim Your Seller Account
Precision Negative Pentagon Milling Blanks, Thickness 0.202 / 0.208 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Negative Pentagon milling blanks offer superior quality and precision with a variable thickness range of 0.202 to 0.208 inches, ensuring exact specifications for your machining needs. With an inscribed circle diameter of 0.767 to 0.777 inches and a precise radius of 1/16 inch, these blanks are engineered to deliver optimal performance. Grade availability tailored to your requirements guarantees efficiency and reliability in your milling operations.

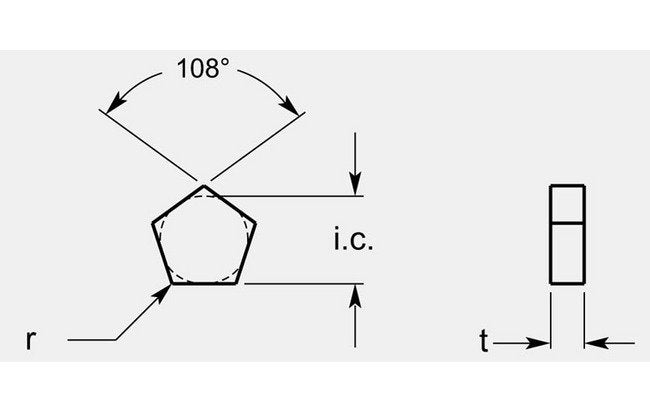

Product Specifications
Dimensional Specification Angle A
108 º
Dimensional Specification Inscribed Circle Ic
0.767/0.777 in
Dimensional Specification Radius R
1/16 in
Dimensional Specification Thickness T
0.202 / 0.208 in
Grade Availability Grade Availability
Available on Request
