Precision Notched Flat Washer
Precision Notched Flat Washer
SKU:SSP-789b3e
Achieve precision assembly with our dual-function Precision Notched Flat Washer. Customizable for optimal performance.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Precision Notched Flat Washer
$14.99
Quantity: 1
Claim Your Seller Account
Precision Notched Flat Washer
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your assembly precision with our Precision Notched Flat Washer. Designed for dual functionality, these washers maintain specific shaft orientations and alignment in assemblies. Available in various thicknesses and diameters, customize your design for optimal performance. Our production equipment list includes top-tier machines for accurate stamping and machining. Request for a quote today with your design documentation.

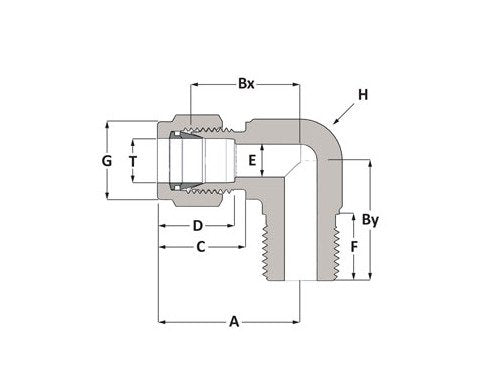

Product Specifications
Dimensions A
27.0 mm
Dimensions Bx
19.5 mm
Dimensions By
18.8 mm
Dimensions C
17.7 mm
Dimensions D
15.3 mm
Dimensions E
4.8 mm
Dimensions F
9.9 mm
Dimensions G
1/2 in | 13 mm
Dimensions H
1/2 in | 13 mm
Dimensions P
1/8 in
Dimensions T
6 mm
Specifications Body Material
Alloy 400
Specifications Brand Series
Duolok
Specifications Connection 1 Size
6 mm
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/8 in
Specifications Connection 2 Type
Male BSPT
Specifications End Connections
TF x Male BSPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Elbow
Category 6
Duolok® Tube Fittings
