Precision Orifice Assembly - Bleed Plug, Type QX, 10-32 UNF
Precision Orifice Assembly - Bleed Plug, Type QX, 10-32 UNF
SKU:PRE-ff9d23
High-quality Precision Orifice Assembly for precise flow control up to 100 psig
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Orifice Assembly - Bleed Plug, Type QX, 10-32 UNF
$29.99
Quantity: 1
Claim Your Seller Account
Precision Orifice Assembly - Bleed Plug, Type QX, 10-32 UNF
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

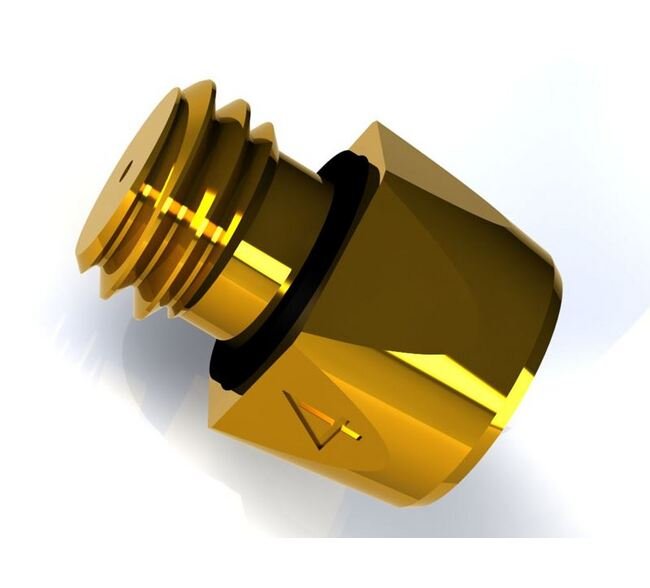

The Precision Orifice Assembly - Bleed Plug, Type QX, is meticulously machined from high-quality Brass with a Viton seal for exceptional durability. Featuring a precise 0.016" orifice diameter with an accuracy of ±0.0005", it ensures reliable flow control and pressure regulation up to 100 psig. This assembly excels in precision flow control for gases or liquids, speed control in cylinders and actuators, accurate timing in hydraulic circuits, and more. Compliant with stringent industry standards, this orifice assembly is engineered to meet the exacting needs of both consumer and institutional buyers.
Product Specifications
Application 0
Precision Flow Control - Gases or Liquids Speed Controls - Cylinders and Actuators Accurate Timing in Pneumatic or Hydraulic Circuits Flow Restriction Accurate Throttling Snubbers - Gages and Instruments
Dimensions Orifice Diameter
0.016 in
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Total Length
0.335 in
Dimensions Width Across Flats Hex
1/4 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 1.40 | 5 psig: 3.26 | 10 psig: 4.26 | 15 psig: 5.30 | 20 psig: 6.29 | 25 psig: 7.25 | 30 psig: 8.20 | 40 psig: 10.1 | 50 psig: 12.1 | 60 psig: 14.0 | 70 psig: 16 | 80 psig: 17.9 | 90 psig: 19.9 | 100 psig: 21.8
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.66 | 5 psig (34.5 kPag): 1.54 | 10 psig (69.0 kPag): 2.01 | 15 psig (103.4 kPag): 2.50 | 20 psig (137.9 kPag): 2.97 | 25 psig (172.4 kPag): 3.42 | 30 psig (206.9 kPag): 3.87 | 40 psig (275.8 kPag): 4.78 | 50 psig (344.8 kPag): 5.70 | 60 psig (413.7 kPag): 6.61 | 70 psig (482.7 kPag): 7.53 | 80 psig (551.6 kPag): 8.46 | 90 psig (620.6 kPag): 9.38 | 100 psig (689.5 kPag): 10.3
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 2.86 | 20 In. Hg.: 2.86 | 30 In. Hg.: 2.86
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 1.35 | 20 In. Hg. (508 Mm. Hg.): 1.35 | 30 In. Hg. (762 Mm. Hg.): 1.35
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 2.07 | 10 In. Hg.: 2.62
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.977 | 10 In. Hg. (254 Mm. Hg.): 1.24
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0055 | 2 psig: 0.0078 | 3 psig: 0.0095 | 4 psig: 0.0110 | 5 psig: 0.0123 | 6 psig: 0.0135 | 7 psig: 0.0146 | 8 psig: 0.0156 | 9 psig: 0.0165 | 10 psig: 0.0174 | 15 psig: 0.0213 | 20 psig: 0.0246 | 30 psig: 0.0301 | 40 psig: 0.0348 | 50 psig: 0.0389 | 60 psig: 0.0426 | 70 psig: 0.0460 | 80 psig: 0.0492 | 90 psig: 0.0522 | 100 psig: 0.0550
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0208 | 2 psig (13.8 kPag): 0.0294 | 3 psig (20.7 kPag): 0.0361 | 4 psig (27.6 kPag): 0.0416 | 5 psig (34.5 kPag): 0.0466 | 6 psig (41.4 kPag): 0.0466 | 7 psig (48.3 kPag): 0.0551 | 8 psig (55.2 kPag): 0.0589 | 9 psig (62.1 kPag): 0.0625 | 10 psig (69 kPag): 0.0658 | 15 psig (103.4 kPag): 0.0806 | 20 psig (137.9 kPag): 0.0931 | 30 psig (206.9 kPag): 0.1140 | 40 psig (275.8 kPag): 0.1317 | 50 psig (344.8 kPag): 0.1472 | 60 psig (413.7 kPag): 0.1613 | 70 psig (482.7 kPag): 0.1742 | 80 psig (551.6 kPag): 0.1862 | 90 psig (620.6 kPag): 0.1975 | 100 psig (689.5 kPag): 0.2082
Specifications Connection A
10-32 UNF Male
Specifications Cv
0.0055
Specifications Material
Brass
Specifications Maximum Operating Pressure
100 psig
Specifications Nominal Orifice Size
16
Specifications Screened
None
Specifications Seal Material
Viton
Specifications Taper
7.5 º
