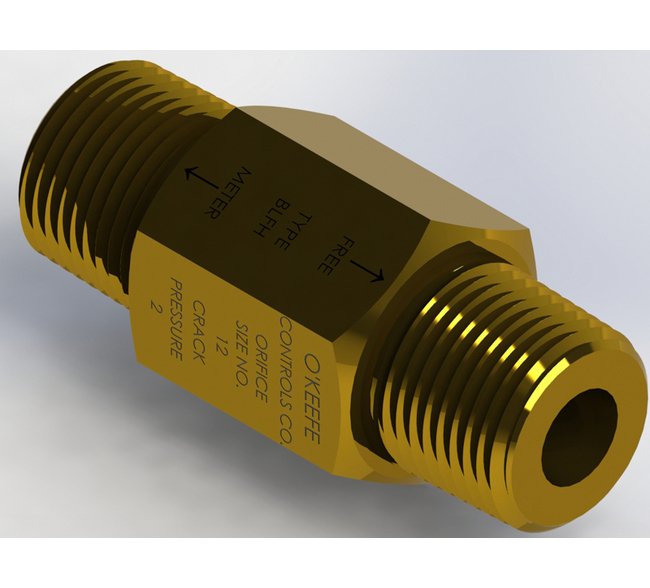

Precision Orifice Ball Valve NPT Nipple
Precision Orifice Ball Valve NPT Nipple
SKU:FLO-b5eb70
Maximize control with our Precision Orifice Ball Valve NPT Nipple, providing unparalleled metered flow for liquids and gases.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Precision Orifice Ball Valve NPT Nipple
$79.99
Quantity: 1
Claim Your Seller Account
Precision Orifice Ball Valve NPT Nipple
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Orifice Ball Valve NPT Nipple offers unmatched control with its parallel arrangement of a ball check valve and precision orifice. Designed for precise metered flow in one direction and free flow in the other, this brass valve is ideal for liquids and gases. With a tamperproof orifice, high pressure capacity, and choice of cracking pressure, it ensures long-lasting, reliable operation in demanding industrial settings.
Product Specifications
Dimensions Orifice Diameter
0.024 in
Dimensions Total Length
1.4 in
Dimensions Width Across Flats Hex
9/16 in
Features Features
All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity
Flow Data Air Flow At 100 Psig
346 to 662 ft³/h
Flow Data Water Flow At 100 Psig
0.8 to 1.6 gpm
Specifications Additional Wetted Material
Loctite 609 / 680
Specifications Assembly Forward Cv
0.094
Specifications Ball Material
304 SS
Specifications Check Valve Cv
0.081
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/8" NPT Male
Specifications Cracking Pressure
10 psig
Specifications Cv Ratio Forward Cv Return Cv
7.23
Specifications Material
Brass
Specifications Maximum Operating Pressure Gauge
2000 psig
Specifications Nominal Orifice Size
24
Specifications Orifice Cv Return
0.013
Specifications Screened
None
Specifications Seal Material
Loctite 609, 680
