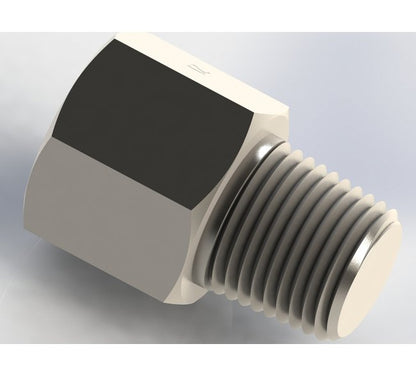

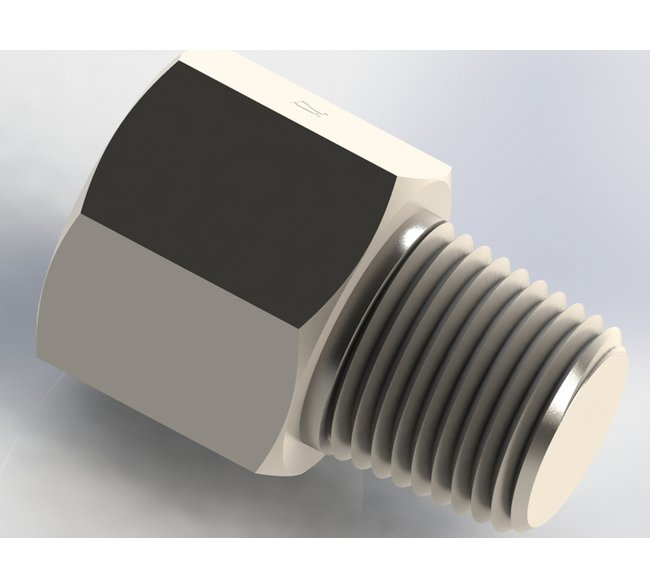

Precision Orifice Pressure Snubber NPT Adapter
Precision Orifice Pressure Snubber NPT Adapter
SKU:PRE-00f50c
Reduce pressure fluctuations with our Precision Orifice Pressure Snubber NPT Adapter. Crafted from 303 SS, features 0.015 in Orifice Diameter, and 4000 psig Maximum Operating Pressure.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Orifice Pressure Snubber NPT Adapter
$29.99
Quantity: 1
Claim Your Seller Account
Precision Orifice Pressure Snubber NPT Adapter
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Orifice Pressure Snubber NPT Adapter is an essential in-line element designed to reduce rapid pressure fluctuations, ensuring precise control in pressure instruments and controls. Crafted from 303 SS, it features an Orifice Diameter of 0.015 in and a Maximum Operating Pressure of 4000 psig, meeting stringent durability requirements for industrial applications. With options ranging from .004" to .020" diameter orifices, this adapter delivers optimal flow control, making it ideal for environments requiring stability and accuracy.
Product Specifications
Application 0
Pressure snubbers are used as in-line elements to reduce rapid pressure fluctuations in the following types of components: Pressure Gages Pressure Measuring Instruments Air Piloted Valves Hydraulic Piloted Valves They can also be used to control the flow rate of fluid delivered to: Air Cylinders Hydraulic Cylinders Fluid Actuators
Dimensions Orifice Diameter
0.015 in
Dimensions Total Length
1.690 in
Dimensions Width Across Flats Hex
1 1/16 in
Specifications Connection A
1/2" NPT Male
Specifications Connection B
1/2" NPT Female
Specifications Cv
0.005
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Screened
None
