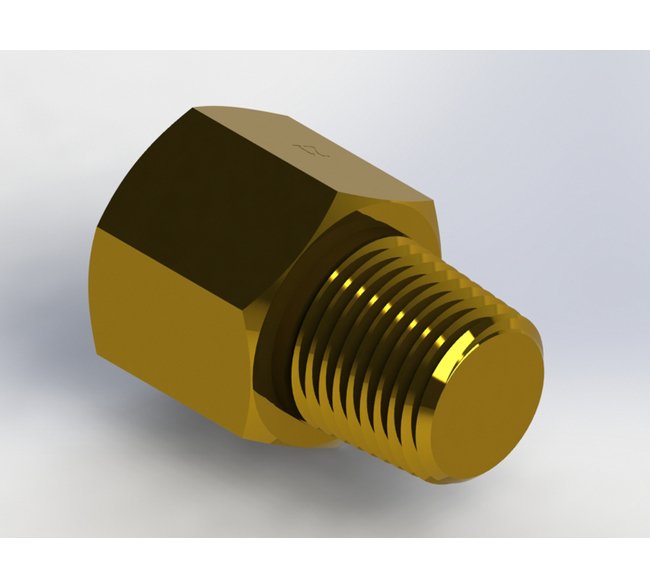

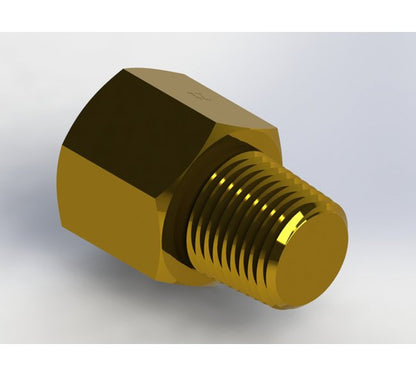

Precision Orifice Pressure Snubber NPT Pipe Adapter
Precision Orifice Pressure Snubber NPT Pipe Adapter
SKU:PRE-da9610
Reduce pressure fluctuations with precision using the Orifice Pressure Snubber NPT Adapter. Ideal for various instruments and controls.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Precision Orifice Pressure Snubber NPT Pipe Adapter
$39.99
Quantity: 1
Claim Your Seller Account
Precision Orifice Pressure Snubber NPT Pipe Adapter
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Orifice Pressure Snubber NPT Pipe Adapter is a crucial in-line element designed to mitigate rapid pressure fluctuations in pressure instruments and controls. Crafted from durable brass, this adapter features an orifice diameter of 0.015 inches, ensuring precise control over fluid flow. With a maximum operating pressure of 2000 psig, it is ideal for a wide range of applications including pressure gauges, air/hydraulic piloted valves, and fluid actuators. This adapter complies with Federal/DoD procurement standards, GSA requirements, and industry-specific certifications.
Product Specifications
Application 0
Pressure snubbers are used as in-line elements to reduce rapid pressure fluctuations in the following types of components: Pressure Gages Pressure Measuring Instruments Air Piloted Valves Hydraulic Piloted Valves They can also be used to control the flow rate of fluid delivered to: Air Cylinders Hydraulic Cylinders Fluid Actuators
Dimensions Orifice Diameter
0.015 in
Dimensions Total Length
1.690 in
Dimensions Width Across Flats Hex
1 1/16 in
Specifications Connection A
1/2" NPT Male
Specifications Connection B
1/2" NPT Female
Specifications Cv
0.005
Specifications Material
Brass
Specifications Maximum Operating Pressure
2000 psig
Specifications Screened
None
