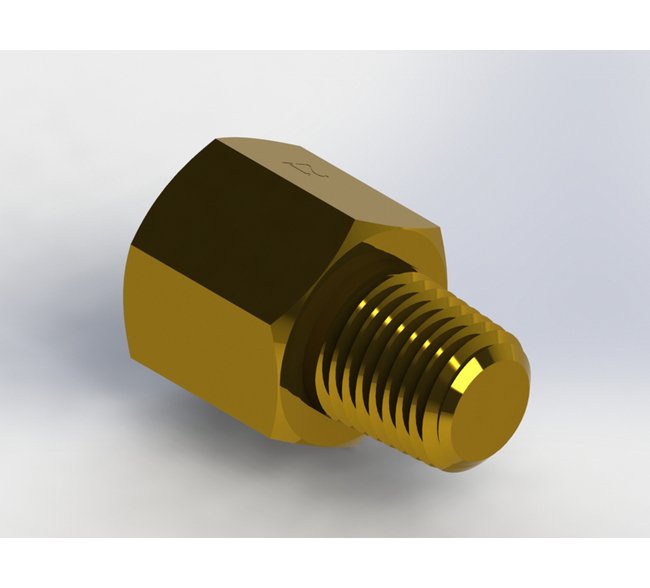

Precision Orifice Pressure Snubber NPT Pipe Adapter
Precision Orifice Pressure Snubber NPT Pipe Adapter
SKU:PRE-b809a8
Enhance instrument performance with our Precision Orifice Pressure Snubber NPT Pipe Adapter. Brass construction with 0.015" orifice diameter, ideal for pressure control and damping fluctuations.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Precision Orifice Pressure Snubber NPT Pipe Adapter
$24.99
Quantity: 1
Claim Your Seller Account
Precision Orifice Pressure Snubber NPT Pipe Adapter
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Orifice Pressure Snubber NPT Pipe Adapter plays a crucial role in reducing flow rates to pressure instruments and controls, effectively damping shock and pressure fluctuations. With a brass construction and an orifice diameter of 0.015 inches, it ensures precision and reliability. This adapter is designed for maximum operating pressure of 2000 psig, catering to a range of pressures and fluid viscosities. It enhances the efficiency and longevity of pressure gages, measuring instruments, valves, and fluid actuators, making it an essential component in various industrial applications.
Product Specifications
Application 0
Pressure snubbers are used as in-line elements to reduce rapid pressure fluctuations in the following types of components: Pressure Gages Pressure Measuring Instruments Air Piloted Valves Hydraulic Piloted Valves They can also be used to control the flow rate of fluid delivered to: Air Cylinders Hydraulic Cylinders Fluid Actuators
Dimensions Orifice Diameter
0.015 in
Dimensions Total Length
1.25 in
Dimensions Width Across Flats Hex
3/4 in
Specifications Connection A
1/4" NPT Male
Specifications Connection B
1/4" NPT Female
Specifications Cv
0.005
Specifications Material
Brass
Specifications Maximum Operating Pressure
2000 psig
Specifications Screened
None
